Martins Industries MTRS-HD Pneumatic TBR & OTR Tire Spreader
$2,711.12$2,259.27You save: 17% ($451.85)
- Perform accurate TBR & OTR tire repairs.
- Pneumatic-powered, adjustable spreader hooks and tire-lifting platform. Easily operate with 2 joysticks.
- Large tool tray allows to keep everything at hand and remain efficient in your repairs.
- Wide-opening lamp mounted on fully flexible arm allows to illuminate and inspect the inside of the tire.
- Sturdy wide base provides complete stability.
Default Title: Default Title
Authorized Dealer
Expert Technical Support
Lowest Price Guarantee
Manufacturer Warranty Included
Secure payment via:
Martins Industries MTRS-HD Pneumatic TBR & OTR Tire Spreader

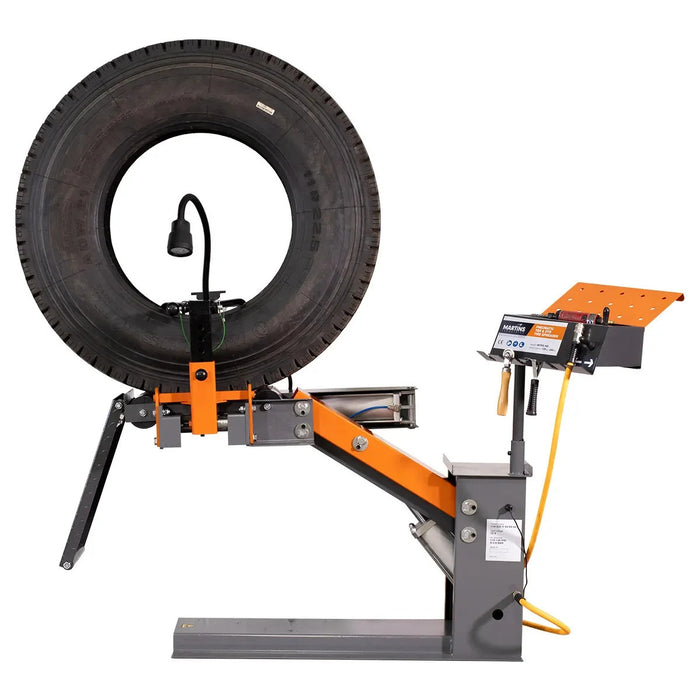

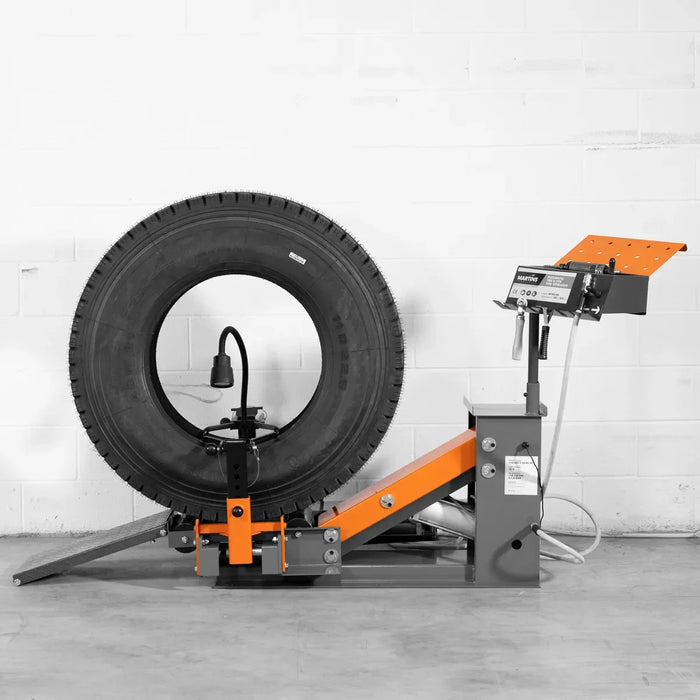

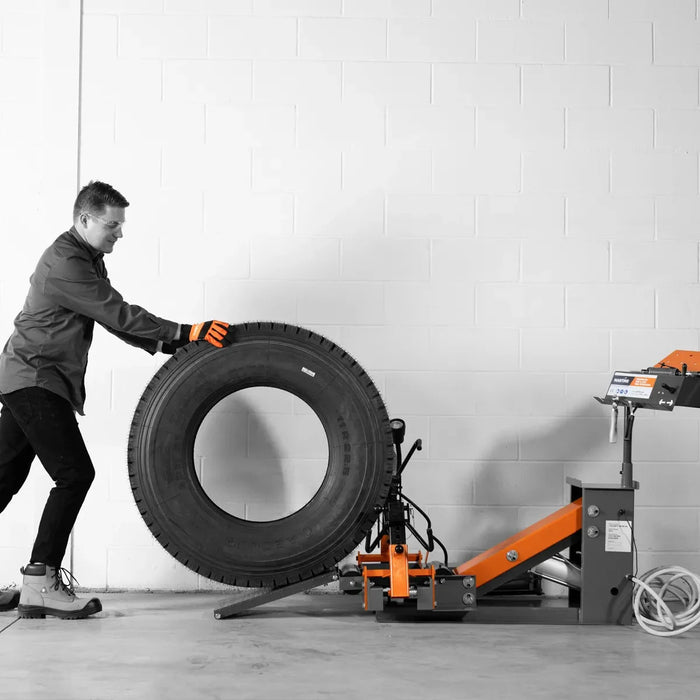

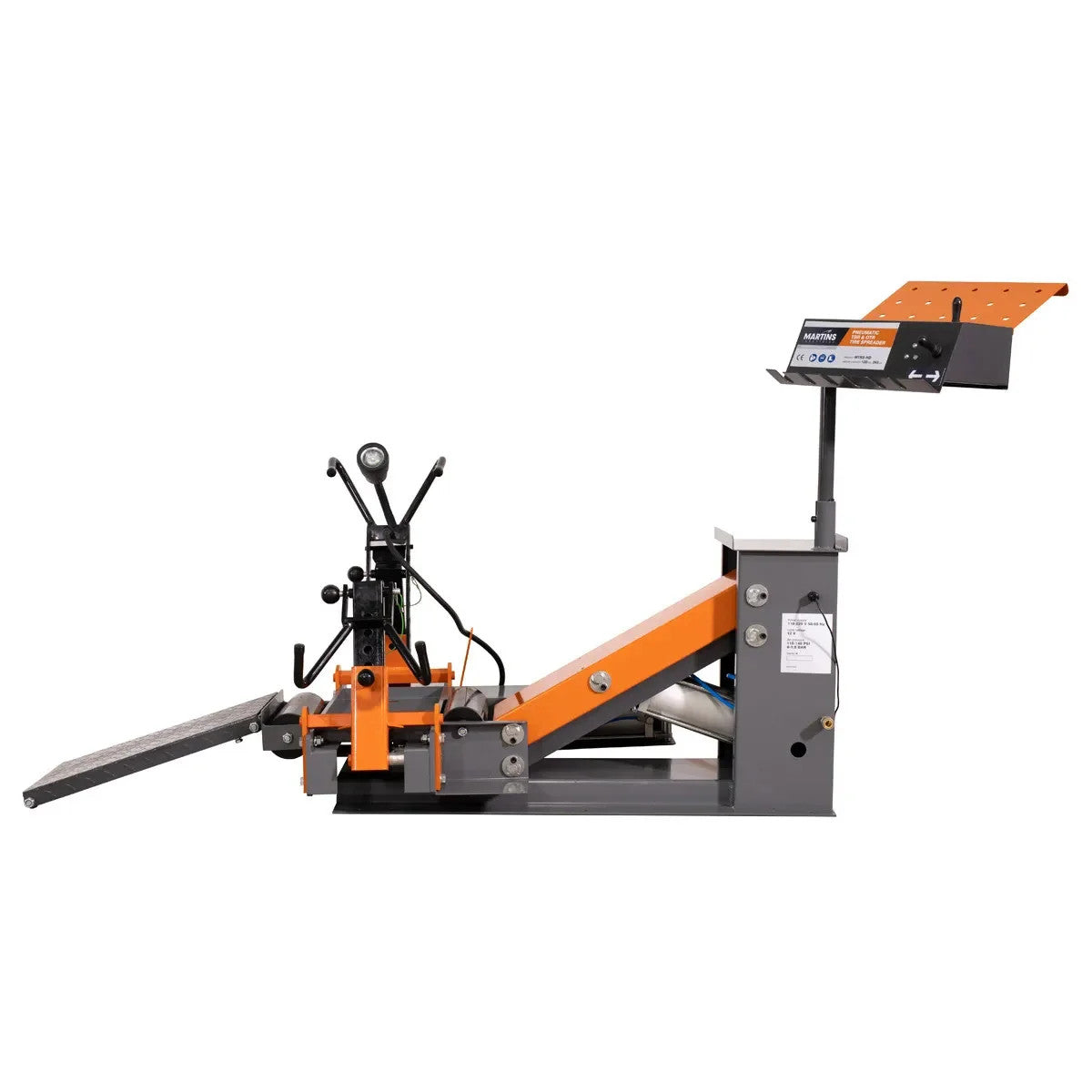

The Pneumatic TBR & OTR Tire Spreader is the ultimate assistant when it comes to the inspection and repair of truck, bus, and commercial/public utility tires. With its heavy-duty, automatic tire-lifting platform and spreader hooks, its tire rollers and roll-on ramp, you won’t break a sweat to place the tire in the most comfortable position to perform your repair.

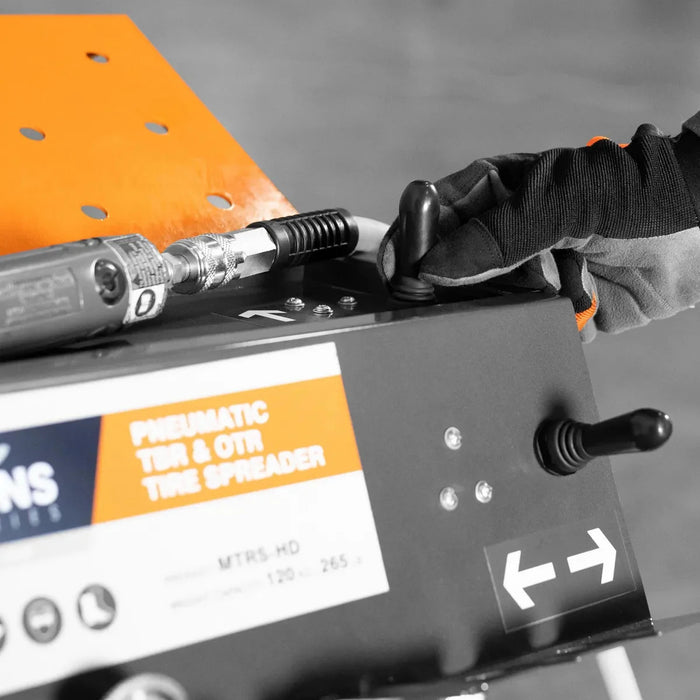

Its swivel hooks on both sides are adjustable to the tire width & sidewall height and will perfectly sit on the bead without damaging it. When ready, use the first joystick to lift / lower tire and the other one to spread / release it. Keep your parts and repair tools at hand with its tool holder and tray.
Tools working on compressor (buffer, vacuum, polisher, etc.) can be connected directly to the air outlet on its base…only one compressed air supply is needed for everything! With its great look, quality finish and solid built, MARTINS’ tire spreader will deliver on all its promises.
*Note: Standard air compressor required (Sold Separately)
Features
- Perform accurate TBR & OTR tire repairs.
- Pneumatic-powered, adjustable spreader hooks and tire-lifting platform. Easily operate with 2 joysticks.
- Large tool tray allows to keep everything at hand and remain efficient in your repairs.

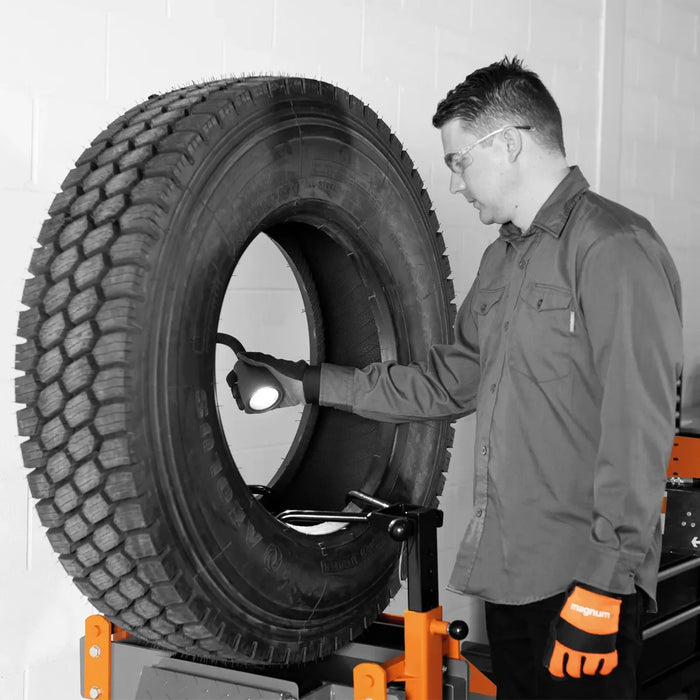

- Wide-opening lamp mounted on fully flexible arm allows to illuminate and inspect the inside of the tire.
- Sturdy wide base provides complete stability.
Included
- DC power adapters (3 different types: C, G & I)
- Quick coupling 1/4'' industrial
- Air pressure gauge and filter regulator.
Specifications
| Tire type | Truck & bus tires, OTR tire |
| Controls | Hand lever pneumatic control |
| Energy type | Compressed air |
| Air compressor required | Yes |
| Load capacity (lb) | 265 |
| Lifting height - max. (inches) | 29 |
| Tire capacity | 1 |
| Wheel width - max. (inches) | 17,75 |
| Overall tire diameter - max. (inches) | 47,25 |
| Air pressure - max. inlet (psi) | 140 |
| Air pressure - max. outlet (psi) | 140 |
| Certifications | CE |
| Materials | Steel |
| Color | Grey and orange |
| Finish | Powder coated paint UV resistant - Never loses is luster |
| Product dimensions - L x W x H (inches) | 39 1/4 x 28 x 68 |
| Net weight (lb) | 280 |
| Package dimensions - L x W x H (inches) | 49 x 33 x 31 |
| Gross weight (lb) | 352 |
