Katool
Katool Tire Changer KT-T830 & Wheel Balancer KT-B760 Combo
$2,599.00
- KT-T830 changer: carburized alloy steel jaws (0.8–1.1 mm treatment, full quenching) — 12"–22" outside / 14"–24" inside clamping.
- Stainless steel mounting head and 186 mm stainless bead breaker cylinder.
- Double side assist arms for low-profile and stiff-sidewall tires.

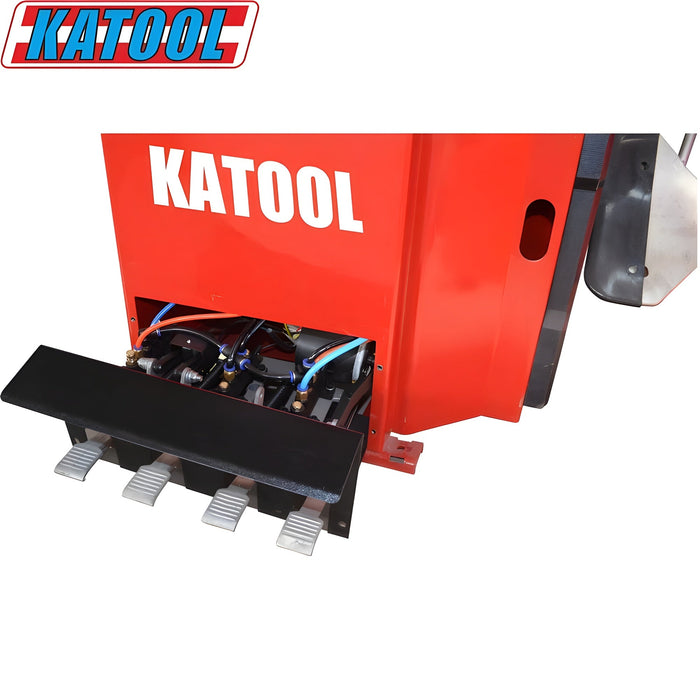

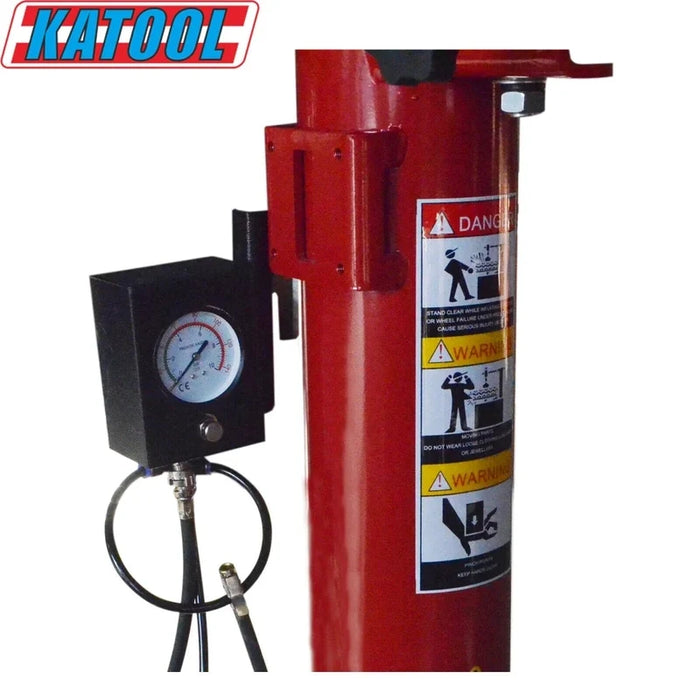

- Bead blast seater head with post tank; inflation gauge with pedal control.
- 2.0 HP motor with pure copper winding — faster heat dissipation, longer life.
Delivery Option: Warehouse Pickup
Authorized Dealer
Expert Technical Support
Lowest Price Guarantee
Manufacturer Warranty Included
Secure payment via:
Authorized Partner
Official Source
Fast Dispatch
Ships in 3–5 Business Days
Description

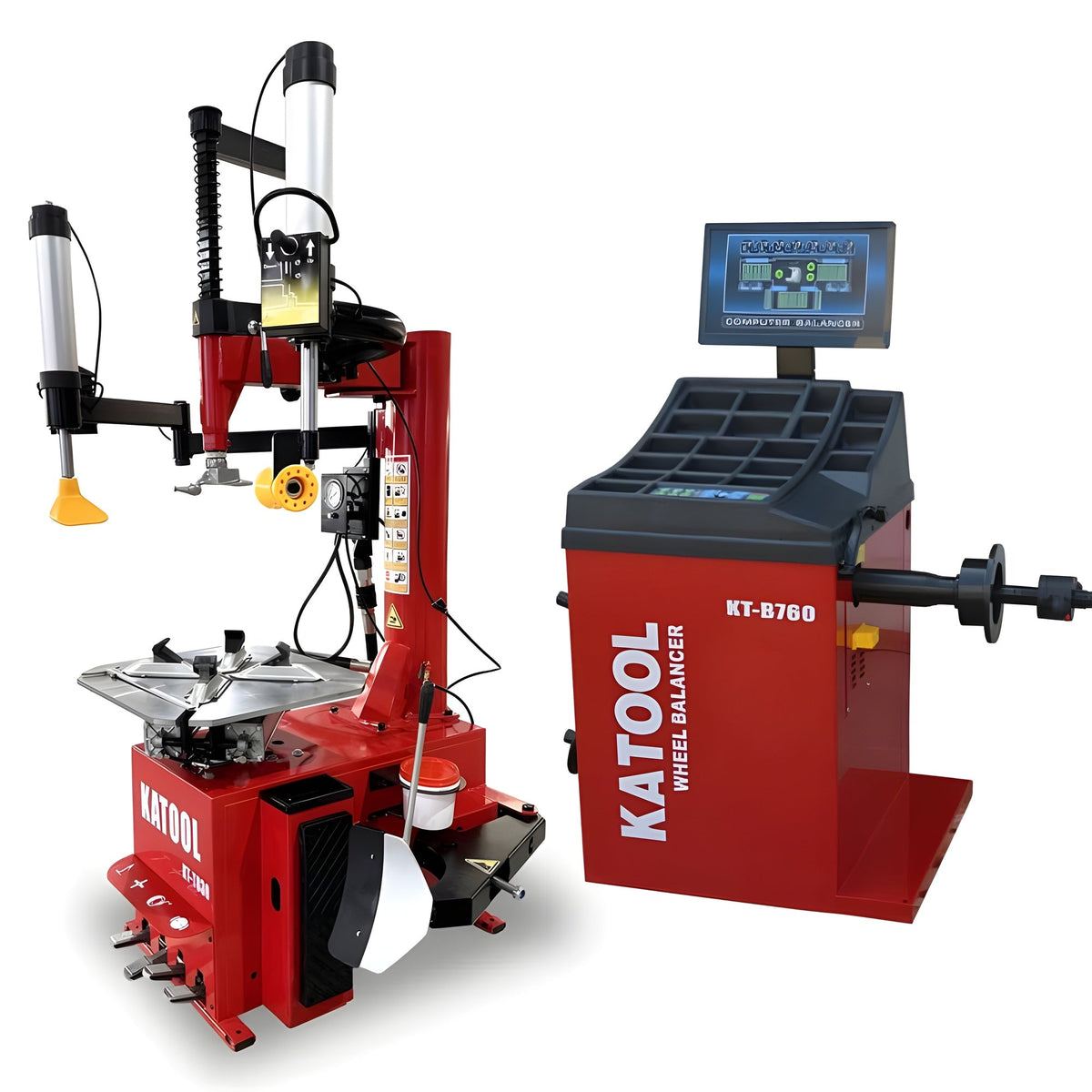

This combo puts a complete wheel-service bay in one purchase: the Katool KT-T830 wheel-clamp tire changer and the KT-B760 computer wheel balancer. It is the setup for shops and serious garages moving past occasional tire work — mount, demount, and balance in-house instead of sending wheels across town.

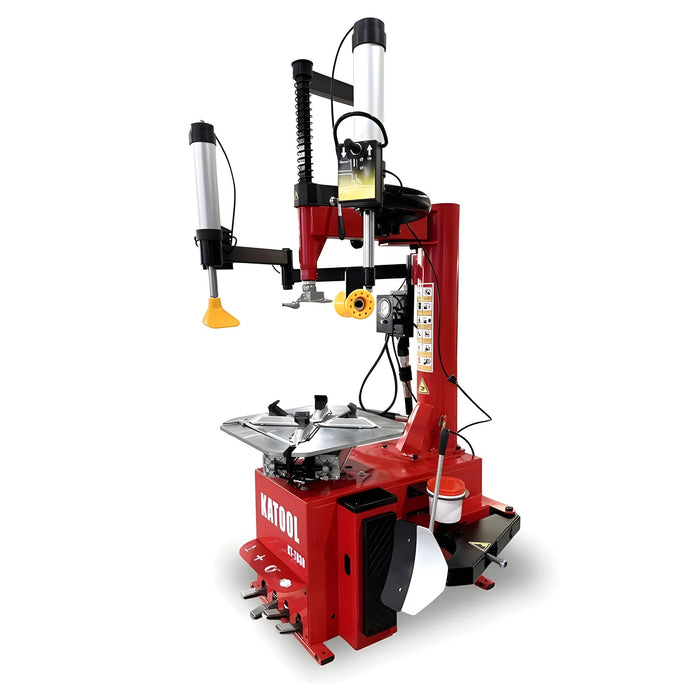

The KT-T830 is built around an alloy steel jaw with carburization treatment 0.8–1.1 mm deep and full quenching — tough on the inside, hard on the outside — clamping 12"–22" outside or 14"–24" inside, up to 41" wheel diameter and 15" width. A stainless steel mounting head works the bead, the double side assist arms control stiff sidewalls and low-profile tires, and the bead blast seater with post tank pops beads onto the rim. The inflation gauge runs on pedal control, and the 2.0 HP motor uses pure copper winding for more power, faster heat dissipation, and longer service life.

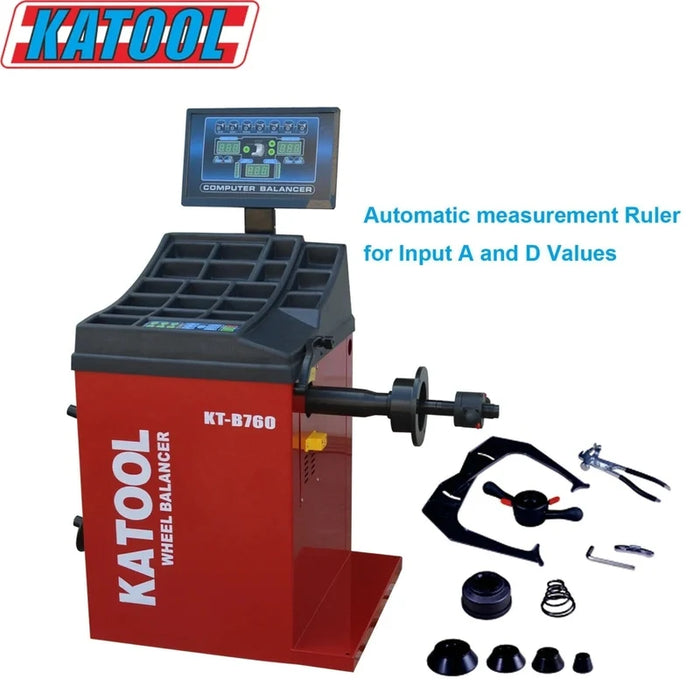

The KT-B760 balancer measures with an automatic ruler that inputs A and D values for you, spins a 7-second cycle, and reads to ±1 g accuracy across multiple balance modes for different rim types. The body is 3 mm steel with solid welding for low vibration, the 36 mm shaft is quench-treated, and the computer board is moisture- and dust-proofed with built-in fault diagnosis and self-calibration.
Balancing motorcycle wheels too? Add the Katool KT-MC1 motorcycle adaptor for narrow rims on the changer. And if you only need the changer, the KT-T830 is available on its own.
Features
- KT-T830 changer: carburized alloy steel jaws (0.8–1.1 mm treatment, full quenching) — 12"–22" outside / 14"–24" inside clamping.
- Stainless steel mounting head and 186 mm stainless bead breaker cylinder.
- Double side assist arms for low-profile and stiff-sidewall tires.
- Bead blast seater head with post tank; inflation gauge with pedal control.
- 2.0 HP motor with pure copper winding — faster heat dissipation, longer life.
- KT-B760 balancer: automatic measurement ruler for A and D values, ±1 g accuracy, 7-second measuring cycle.
- Multiple balance modes for steel, alloy, and specialty rims.
- 3 mm steel body, quench-treated 36 mm shaft, moisture- and dust-proof computer board.
- Built-in fault diagnosis and self-calibration.
What's Included
- Katool KT-T830 wheel-clamp tire changer
- Katool KT-B760 computer wheel balancer
- Balancer mounting cones, quick nut, wheel-weight pliers, rim caliper, and hex key (as pictured)
Specifications
| KT-T830 Wheel Clamp Tire Changer | |
|---|---|
| Max wheel diameter | 41" (1,040 mm) |
| Max wheel width | 15" (380 mm) |
| Outside clamp | 12" – 22" |
| Inside clamp | 14" – 24" |
| Motor | 2.0 HP / 1.5 kW, 120V single-phase |
| Rotation speed | 6.8 r/min |
| Air pressure | 0.8–1.0 MPa (116–145 PSI) |
| Net weight | 529 lbs (240 kg) |
| KT-B760 Wheel Balancer | |
|---|---|
| Rim diameter | up to 30" |
| Wheel width | 3" – 12" |
| Max wheel diameter | 34.64" (880 mm) |
| Max wheel weight | 143 lbs (65 kg) |
| Balancing accuracy | ±1 g |
| Measuring time | 7 seconds |
| Balancing speed | 180 rpm |
| Motor | 0.25 kW, 110V single-phase |
| Rim center hole | up to 5.31" (135 mm) |
Warranty
Katool covers this combo with a 12-month all-parts warranty — cylinders, motors, displays, and electronics — with replacement parts shipped free. A 2-year extended warranty plan is available. Claims require the original order number, are non-transferable, and labor is not included.
FAQ
What air supply do the machines need?
The tire changer runs on 116–145 PSI shop air for the clamps, bead breaker, and bead blast seater. The balancer needs no air — just a standard 110V outlet.
What size wheels does the combo cover?
The changer clamps 12"–22" rims outside (14"–24" inside) up to 41" total wheel diameter; the balancer handles rims to 30" and wheels to 143 lbs. That covers passenger cars, SUVs, and light trucks.
Can it do motorcycle wheels?
With the KT-MC1 motorcycle adaptor on the changer, yes — narrow rims clamp properly instead of improvising.
Do I need special electrical?
No — the changer runs on 120V and the balancer on 110V, both single-phase. Give each its own outlet rather than sharing a circuit with a compressor.
The balancer powers on but won’t balance — what should I check first?
Check the wheel balancer’s internal power connector. During assembly it can be inserted in either orientation, and reversed, the machine spins but won’t balance — several owners have confirmed reversing the connector fixed it immediately. Unplug the machine, flip the connector, and retest. If it still won’t balance, call us at (307) 381-1810 and we’ll troubleshoot with you.
Documents
Manuals and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
