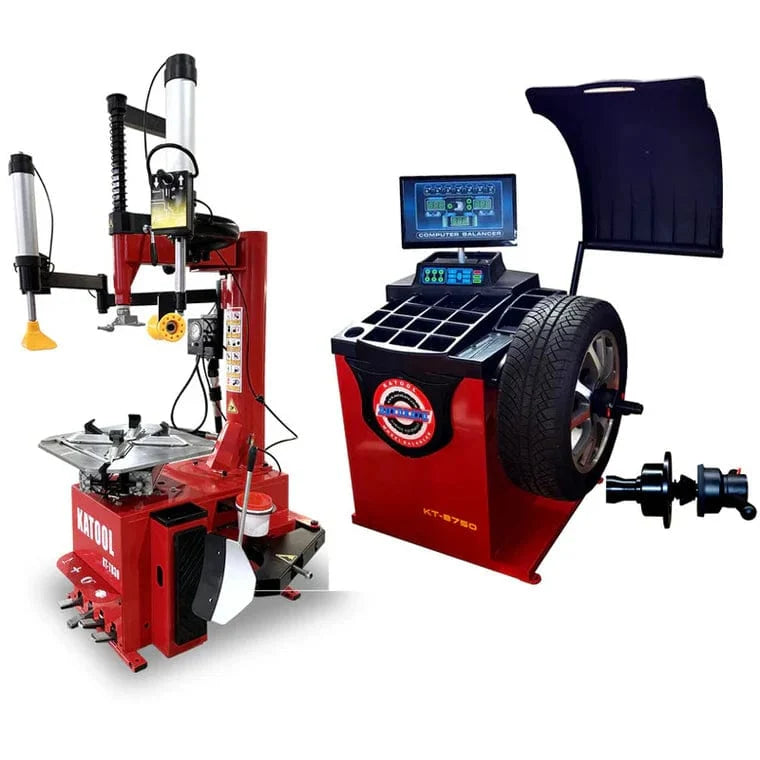

Katool KT-T830 Tire Changer & Wheel Balancer KT-B750 Combo

Description

The Katool KT-T830 Wheel Clamp Tire Changer Machine and KT-B750 Wheel Balancer Combo offer a comprehensive solution for efficient tire changing and precise wheel balancing, making them ideal for automotive workshops and service centers.

Features

KT-T830Tire Changer Features:

• Durable Alloy Steel Jaw: Features an alloy steel jaw with a carburization treatment depth of 0.8-1.1mm and thorough quenching, providing enhanced tenacity and hardness. Equipped with a jaw cover to protect the rim.

• Stainless Steel Mounting Head: The mounting head is crafted from stainless steel, treated and polished to conform to engineering mechanics, and includes a plastic cover to safeguard the rim.

• Pedal-Controlled Inflation Gauge: Allows for precise control during tire inflation.

• Protective Spade Cover: High-quality spade cover effectively prevents rim damage.

• User-Friendly Pedal Control System: Pull-type pedal control system facilitates easy tire changing and maintenance.

• High-Performance Motor: Equipped with a top-level motor featuring pure copper winding for increased power, rapid heat dissipation, lower defect rates, and extended service life.

• Efficient Lubrication System: High-quality lubricator ensures reliable oil drop and effectively filters compressed air, extending the pneumatic system's lifespan.

Katool KT-B750 Wheel Balancer Features:

• Automatic Measurement Ruler: Facilitates auto input of A and D values for enhanced efficiency.

• Robust Construction: The body utilizes 3mm-thick steel with high strength, solid welding, and minimal vibration.

• Integrated Pressure Sensor Support: Features an all-in-one pressure sensor support design with 8mm-thick bottom and side boards, ensuring stable operation and high precision.

• High-Quality Motor: Equipped with a top-level motor with pure copper winding for increased power, rapid heat dissipation, lower defect rates, and extended service life.

• Durable Shaft Thread: The 36mm shaft thread undergoes quenching treatment for enhanced strength.

• Advanced Computer Board: Adopts advanced welding technology, making it moisture-proof, dust-proof, and anti-static for a longer lifespan.

• Versatile Balance Modes: Offers various balance modes tailored to different rim types for precise balancing.

• Built-In Diagnostics and Calibration: Includes built-in fault diagnosis and self-calibration programs with double-side calibration for ease of operation.

• Unit Selection: Allows selection between Ounce/Gram and MM/Inch units.

• Stable Power Board: High-quality integrated power board ensures stable and reliable operation.

• Optional Wheel Guard: Provides an optional wheel guard for added safety.

• Longer Shaft: Features a longer shaft to accommodate wider wheels.

Specifications

Tire Changer T830 Specifications:

• Max Wheel Diameter: 41"/1040mm
• Max Wheel Width: 15"/380mm
• Outside Clamp: 12"-24"
• Inside Clamp: 14"-26"
• Power Supply: 120V 1PH
• Motor Power: 2.0HP/1.5KW
• Rotation Speed: 6.8r/min
• Air Pressure: 0.8-1.0Mpa (116-145psi)
• Net weight: 240KG/529lbs

Wheel Balancer B750 Specifications:

• Rim Diameter:<30"
• Wheel Width:15"
• Wheel Diameter:<880mm
• Balancing Speed:180rpm
• Power Supply:120V 1PH
• Motor Power:0.25KW
• Rim Center Hole Dia.:<135mm
• Wheel Weight:<65KG
• Balancing Accuracy:±1g
• Measuring Time:7S

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
