Katool KT-SK26B 23HP Mini Skid Steer Track Loader — 837 lb Lifting Capacity
$5,290.00
- Description The Katool KT-SK26B is a compact, gasoline-powered mini skid steer track loader rated for an 837 lb lift capacity on a 23 HP engine, sized for property owners, landscapers, farm operators, and small contractors who need real lifting performance on jobsites where a full-size skid steer can't fit. The frame is welded from Q235 and Q245 structural steel — the same low-carbon grades used on full-size construction equipment — over a compact rubber-track undercarriage
- The track footprint clears standard yard gates and follows narrow side passages while distributing the loader's 1,984 lb operating weight across a wider contact patch than tires would, holding traction on dirt, gravel, and uneven ground without tearing up finished landscaping. 837 lb rated lift capacity across the full arm range. Hydraulic four-wheel drive transfers the engine's output to the tracks at travel speeds of 0–6 km/h (0–3.7 mph), with a hydraulic closed brake holding the loader on inclines
- Auxiliary hydraulics power bucket, breaker, auger, and pallet-fork attachments through quick-disconnect couplers. Features 23 HP gasoline drivetrain with hydraulic four-wheel drive The 16.8 kW engine drives a hydraulic four-wheel-drive system through a 50 L / 180 bar hydraulic circuit
- Travel speed runs 0–6 km/h, and a hydraulic closed brake holds the loader in place when the operator releases the levers. Twin-lever operator station Single-operator design with two control levers handling forward, reverse, and steering
Default Title: Default Title
Authorized Dealer
Expert Technical Support
Lowest Price Guarantee
Manufacturer Warranty Included
Secure payment via:
Authorized Partner
Official Source
Fast Dispatch
Ships in 3–5 Business Days
Description
The Katool KT-SK26B is a compact, gasoline-powered mini skid steer track loader rated for an 837 lb lift capacity on a 23 HP engine, sized for property owners, landscapers, farm operators, and small contractors who need real lifting performance on jobsites where a full-size skid steer can't fit.
The frame is welded from Q235 and Q245 structural steel — the same low-carbon grades used on full-size construction equipment — over a compact rubber-track undercarriage. The track footprint clears standard yard gates and follows narrow side passages while distributing the loader's 1,984 lb operating weight across a wider contact patch than tires would, holding traction on dirt, gravel, and uneven ground without tearing up finished landscaping.
Hydraulic four-wheel drive transfers the engine's output to the tracks at travel speeds of 0–6 km/h (0–3.7 mph), with a hydraulic closed brake holding the loader on inclines. Auxiliary hydraulics power bucket, breaker, auger, and pallet-fork attachments through quick-disconnect couplers.
Features
23 HP gasoline drivetrain with hydraulic four-wheel drive
The 16.8 kW engine drives a hydraulic four-wheel-drive system through a 50 L / 180 bar hydraulic circuit. Travel speed runs 0–6 km/h, and a hydraulic closed brake holds the loader in place when the operator releases the levers.

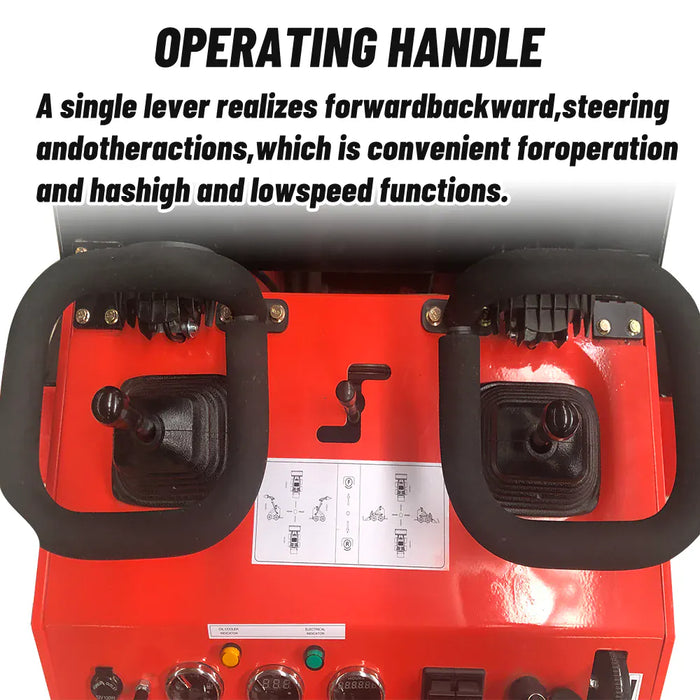

Twin-lever operator station

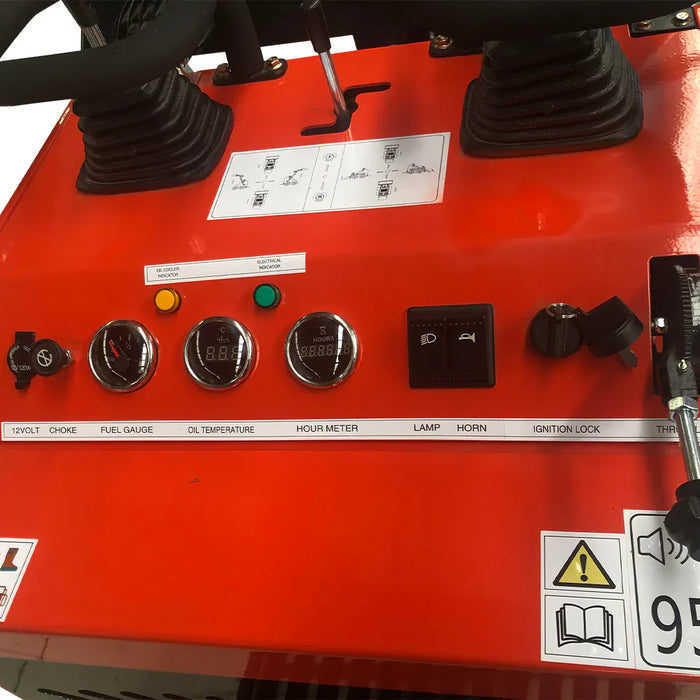

Single-operator design with two control levers handling forward, reverse, and steering. The instrument panel includes a 12V power outlet, choke, fuel gauge, oil-temperature gauge, hour meter, lamp and horn switches, ignition lock, and throttle.

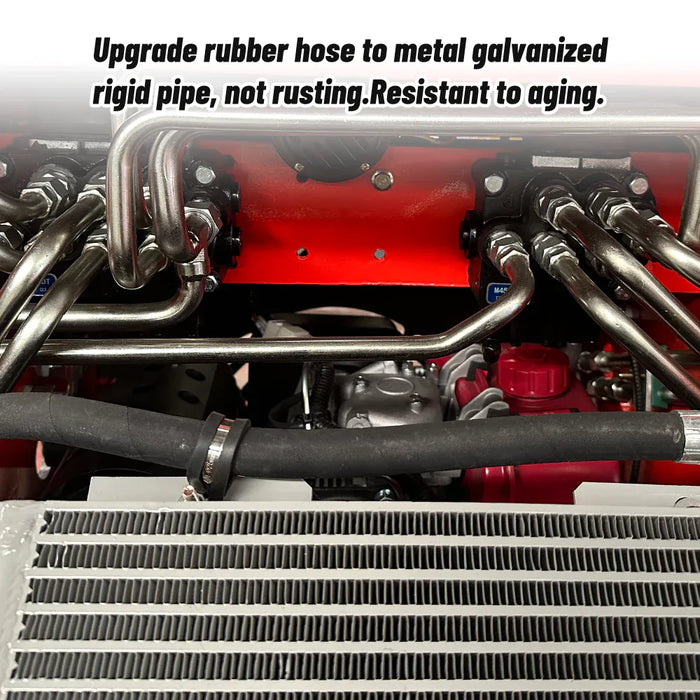

Galvanized rigid hydraulic piping
Rigid galvanized steel lines replace softer rubber hoses through the high-flex sections of the hydraulic circuit, reducing the corrosion and chafing failures that take rubber lines out of service first.

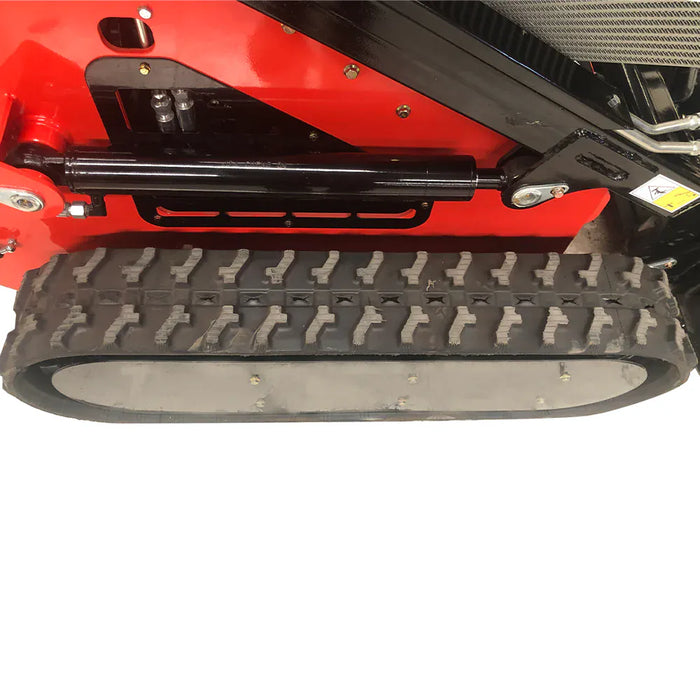

Compact rubber-track undercarriage
Rubber tracks distribute the 900 kg operating weight evenly across uneven terrain, holding traction on soft ground and gravel where tires would dig in or slip. The compact track frame is sized to clear standard residential gates and tight side-yard passages.

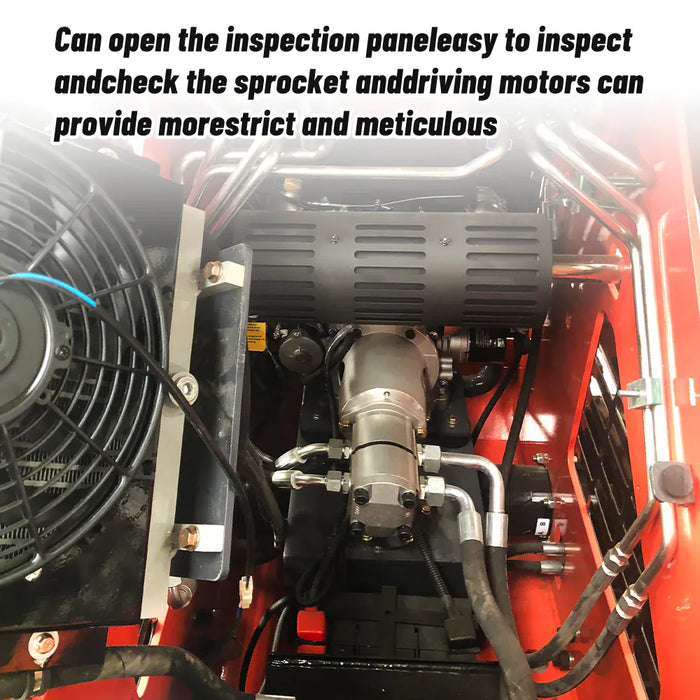

Service-friendly access panels
Hinged inspection panels open on either side of the engine bay, exposing the sprocket, drive motor, hydraulic lines, and battery for routine inspection without removing body panels — relevant when the loader is being serviced in the field rather than a shop.
Quick-disconnect auxiliary hydraulics
Auxiliary hydraulic ports use quick-disconnect couplers, so swapping between bucket, breaker, auger, or pallet-fork attachments is a tool-free change at the front of the machine.
Specifications
| Katool KT-SK26B Mini Skid Steer Track Loader Specifications | |
|---|---|
| Model | KT-SK26B |
| Engine Power | 23 HP (16.8 kW), gasoline |

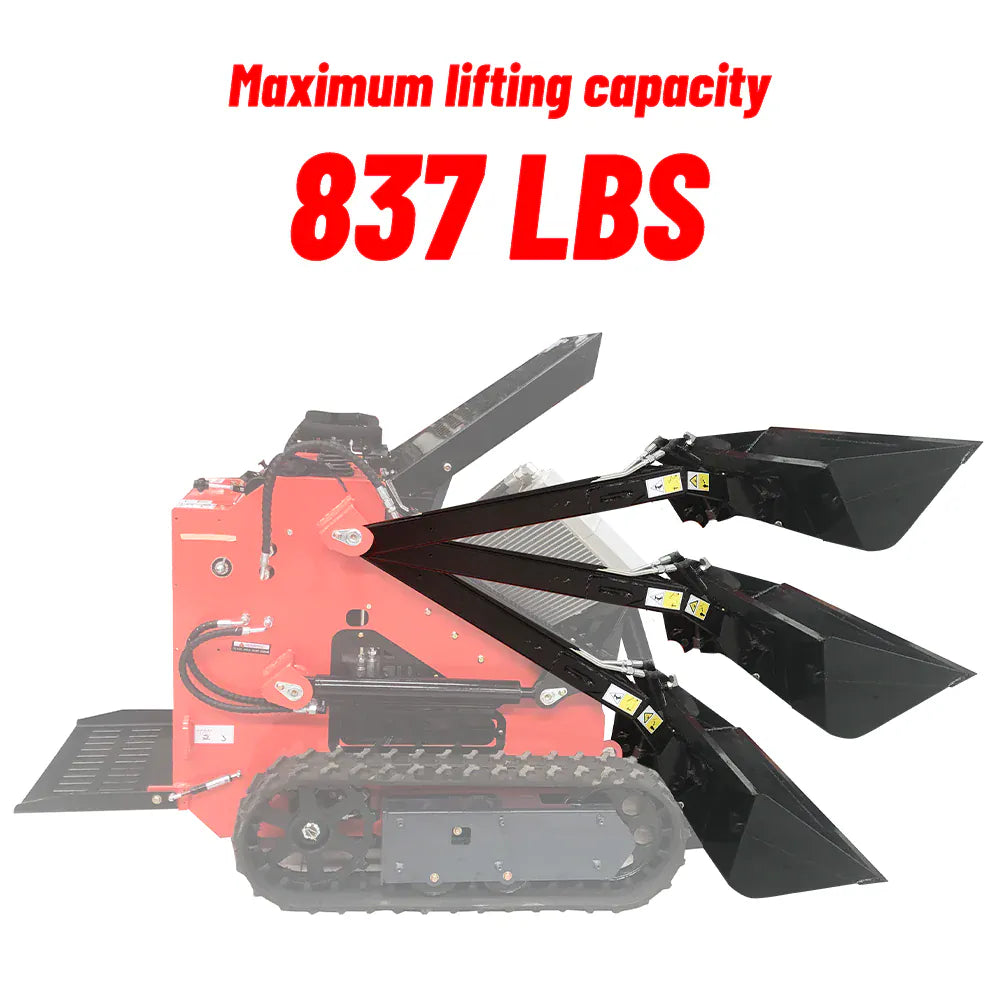

| Rated Lifting Capacity | 837 lbs |
| Standard Bucket Capacity | 661 lbs (300 kg) |
| Operating Weight | ~1,984 lbs (900 kg) |
| Drive System | Hydraulic four-wheel drive |
| Hydraulic Drive Circuit | 50 L / 180 bar |
| Travel Speed | 0–6 km/h (0–3.7 mph) |
| Braking System | Hydraulic closed brake |
| Fuel Tank Capacity | 20 L (~5.3 US gal) |
| Hydraulic Oil Tank | 25 L (~6.6 US gal) |
| Electrical System | 12V / 36 Ah battery |
| Machine Dimensions | 2924 × 1155 × 1390 mm (115" × 45" × 55") |
| Packing Dimensions | 82" × 48" × 51" |
| Frame Construction | Q235 / Q245 structural steel |
