Katool KT-M150D 15,000 lb Two Post Lift
From
$4,879.00
Equipment price. Freight for this item is quoted separately.
Need Financing or Commercial Leasing?
Email Us About Payment Plans
Financing available through APPROVE
Learn about financing
Flexible equipment financing for qualified business customers. Subject to approval and lender terms.
- 15,000 lb lifting capacity — sized for trucks, vans, and commercial fleet vehicles

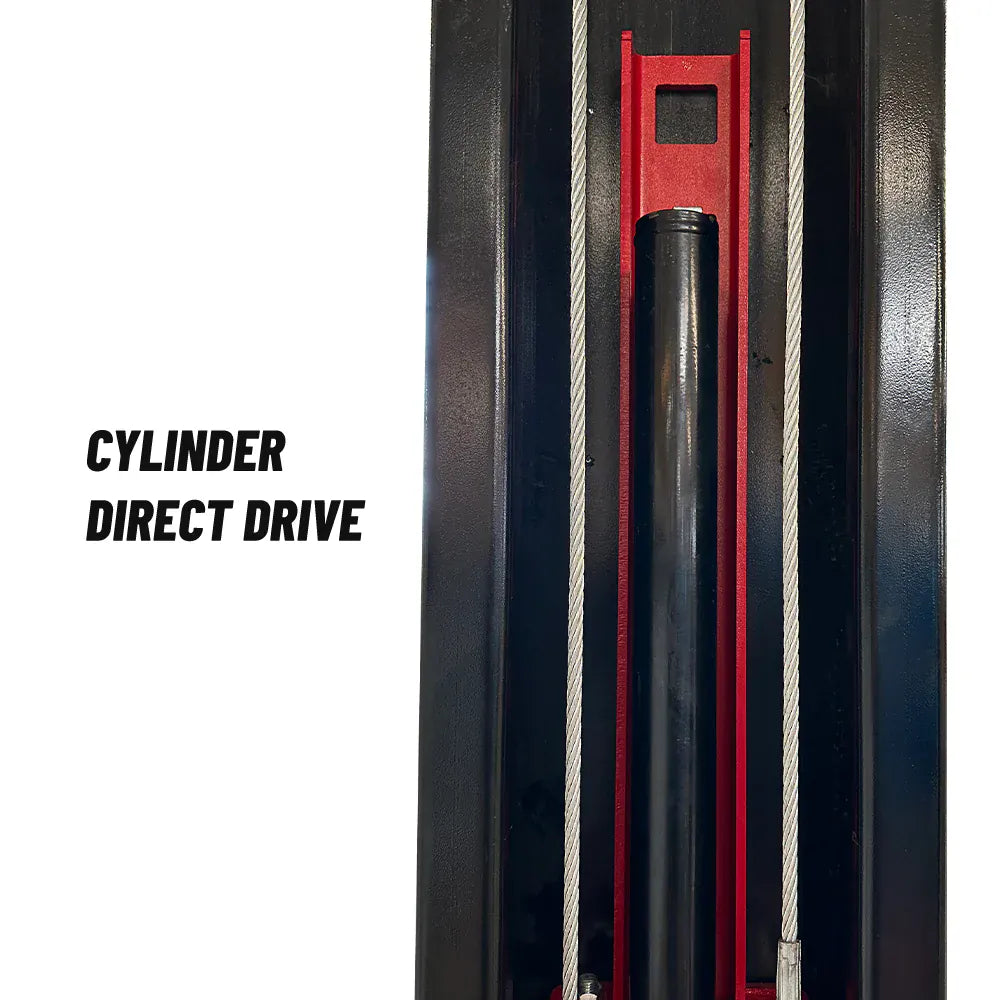

- Direct-drive cylinder system — smoother cycles and fewer wearing parts than chain-over-sheave designs
- Symmetric two-post geometry — load centers between the columns for balanced lifting
- Single-point lock release — one lever disengages both columns for controlled lowering
- 72.83" max lifting height — undercar clearance for stand-up service
How would you like to get it?
Warehouse Pickup Availability
Pickup availability could not be confirmed. Please contact us before selecting warehouse pickup.
Warehouse availability is based on the supplier's most recent stock update and can change before pickup is arranged.
Ships to your address. Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout.
Forklift or equipment to unload is required at delivery.
Contact Us to Order
Or call or text +1 (888) 896-7898
Secure payment via:
Katool
LTL Freight Delivery
Most in-stock orders process within 2–5 business days.
Description
The Katool KT-M150D is a commercial-grade 15,000 lb capacity two post lift built for fleet shops, truck service bays, and high-volume garages working on heavier vehicles than a 10,000-class lift can safely handle. The symmetric column geometry centers the load between the posts, and a direct-drive cylinder system replaces traditional chain-over-sheave lifting for smoother cycles and fewer wearing parts.

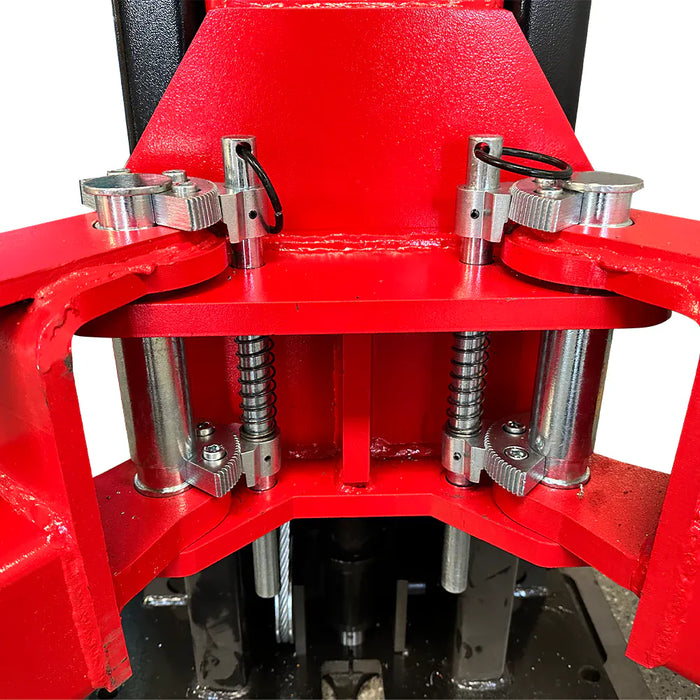

A single-point lock release consolidates the descent control into one lever — both columns disengage together, so the operator never has to walk the lift to release each side. The lifting frame is fabricated from Q235 and Q245 structural steel, and the standard arm hardware ships with stacking adapters (round pads plus stacking sleeves) for picking up trucks, vans, and vehicles with high frame rails.

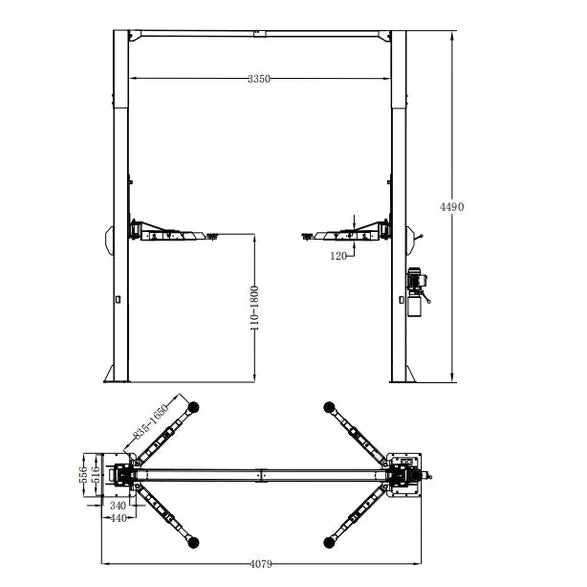

The KT-M150D rises to a 72.83" maximum lifting height and clears 116" between columns, with an overall height of 176.8". A 3 kW (4 HP) motor running on 220V / 60 Hz drives the hydraulic system, and the manufacturer specifies a minimum 5.9" of 3,000 PSI concrete for installation — verify your slab before scheduling.
Ships via freight.
Features
- 15,000 lb lifting capacity — sized for trucks, vans, and commercial fleet vehicles
- Direct-drive cylinder system — smoother cycles and fewer wearing parts than chain-over-sheave designs
- Symmetric two-post geometry — load centers between the columns for balanced lifting
- Single-point lock release — one lever disengages both columns for controlled lowering
- 72.83" max lifting height — undercar clearance for stand-up service
- Q235 / Q245 structural steel column and lifting-frame fabrication
- Standard adapter kit included — round pads and stacking sleeves with the arms
Specifications
| Katool KT-M150D Specifications | |
|---|---|
| Lifting capacity | 15,000 lbs |
| Maximum lifting height | 72.83" |
| Overall height | 176.8" |
| Drive-thru clearance | 116" |
| Motor | 4 HP / 3 kW |
| Voltage | 220V / 60 Hz |
| Design | Symmetric two-post |
| Drive type | Direct drive |
| Construction material | Q235 / Q245 structural steel |
| Concrete requirement | 5.9" minimum, 3,000 PSI |
| Verify slab thickness and PSI before installation. Concrete requirement is set by the manufacturer. | |
This item: freight delivery
This item ships by LTL freight carrier. Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout.
Shipping
Coverage and fulfillment
We ship to the 48 contiguous United States and Washington, DC. Products ship from manufacturing partners and fulfillment centers across the United States. Shipping method and cost depend on the product, selected delivery option, and destination.
Processing and delivery estimates
For standard in-stock parcel and freight orders, processing normally takes 2–5 business days, followed by an estimated 5–10 business days in transit. Typical total delivery is approximately 7–15 business days. Business days are Monday–Friday, excluding U.S. federal holidays. Orders placed outside business hours begin processing the next business day.
Any known longer product lead time is disclosed before purchase. Dates are estimates. If we cannot meet the stated shipment timeframe, we will notify you and explain your delay-consent and cancellation/refund options under our Shipping Policy.
Shipping charges
Where the selected shipping option expressly includes delivery, no additional shipping charge is added at checkout. Other products use disclosed flat, destination-zone, or calculated shipping rates. The applicable charge is shown before payment. Orders requiring a freight quote must have that quote accepted before purchase. Mixed orders may include more than one shipping charge.
Parcel delivery
Smaller products may ship by parcel carrier. Tracking is provided when available after shipment. Separate packages may arrive on different days. Parcel shipping does not include installation or assembly.
Freight delivery and unloading
Heavy, crated, or palletized equipment may ship by LTL or another freight carrier. Delivery is to a safe, truck-accessible curbside or receiving point. Inside placement, installation, unpacking, and assembly are not included unless expressly stated.
Where suitable liftgate service is included for the product, the carrier lowers the shipment to ground level. Products too large or heavy for liftgate service require customer-provided unloading equipment, such as a suitably rated forklift or compatible loading dock. The applicable requirement must be identified for the product before purchase. A pallet jack alone cannot lower freight from a truck.
We do not charge separate residential, commercial-address, or eligible liftgate service fees. Reasonable documented costs caused by a missed agreed appointment, inaccurate delivery information, or failure to provide previously disclosed unloading arrangements may apply under the Shipping Policy. Seller or carrier errors are not customer-caused delivery failures.
Warehouse pickup
Where offered, pickup depends on stock at the selected partner facility and requires a confirmed appointment and our Pickup Authorization Pass. An order confirmation is not pickup authorization. Pickup does not include delivery to your address.
Read the full Shipping Policy or contact support@forgelinesupplyco.com with questions.
Returns & Warranty
Standard Products
These generally include smaller parcel-shipped tools and accessories that do not require permanent installation. Eligible return requests must be submitted within 30 calendar days of delivery, or collection for warehouse pickup. Prior written RMA approval is required. Voluntary returns must meet our unused, uninstalled, complete, and original-packaging requirements.
Large / Freight Equipment
These include oversized, palletized, crated, freight-shipped, or installed equipment, such as vehicle lifts, tire changers, wheel balancers, and large cabinet systems. Returns for buyer’s remorse, incorrect selection, or site incompatibility are generally not accepted unless expressly approved in writing. Submit a voluntary-return request within 30 calendar days of delivery or pickup; requesting approval does not guarantee acceptance. The product’s applicable category and any additional restrictions must be disclosed before purchase.
Costs for approved non-defective returns
Approved voluntary returns are subject to a 28% restocking fee, customer-paid return shipping, and applicable documented outbound shipping deductions, including where the original delivery was included in the price. Freight return costs can be substantial. We provide an itemized estimate before you commit to an authorized return.
The restocking calculation excludes tax and separately charged shipping. If included outbound freight is deducted separately, it is first removed from the restocking calculation base. The same transport cost is not deducted twice. See the full policy for calculation details and condition-related deductions.
Wrong items, damage, and defects
Voluntary-return restrictions do not automatically exclude verified fulfillment errors, transit damage, or qualifying defect claims. For approved returns of wrong items or goods confirmed damaged in transit, we arrange and cover required return transportation, with no restocking fee. Defect remedies and transport costs follow the applicable warranty and law.
Authorization and refunds
Contact us before returning merchandise. Use only the return destination in your RMA; do not send goods to our mailing address unless that address is expressly authorized.
We normally inspect and notify you of our decision within 2–4 business days after receipt at the approved facility. Approved refunds are generally submitted to the original payment method within 5–10 business days after approval—normally 7–14 business days altogether, assuming approval follows inspection. Bank posting takes additional time. If further review is needed, we explain why and provide an expected decision date. Faster mandatory deadlines take precedence.
Manufacturer warranty
Warranty coverage, where offered, is provided by the applicable manufacturer and varies by brand and model. Coverage duration, parts, labor, transport costs, and exclusions are described in the applicable warranty documentation. A warranty claim is separate from a voluntary return. Contact us for assistance before returning equipment or undertaking repairs that may affect coverage. Manufacturer terms do not remove our obligations as seller or rights that cannot legally be excluded.
Read the full Return & Refund Policy and Warranty Policy. Contact support@forgelinesupplyco.com for assistance.
Return category for this item
Large / Freight Equipment — see Large / Freight Equipment above.
Manufacturer warranty for this product
How long does delivery take?
Standard in-stock parcel and freight orders normally ship within 2–5 business days, followed by an estimated 5–10 business days in transit. Typical total delivery is approximately 7–15 business days. Known longer product lead times are disclosed before purchase. Dates are estimates; tracking is provided when available after shipment.
Is shipping included?
It depends on the product, destination, and selected delivery option. If the option expressly includes shipping, no additional shipping charge is added at checkout. Otherwise, applicable flat, zone-based, or calculated charges are shown before payment. Quote-required orders need an accepted quote before purchase. Pickup is separate from delivery.
Will the driver unload freight?
Where suitable liftgate service is included for the product, the carrier lowers the shipment to ground level. Other equipment requires your suitably rated forklift or compatible loading dock. Review the product’s unloading requirements before ordering. Inside placement and installation are not included unless expressly stated.
Is warehouse pickup available?
Only where offered for the selected product and partner location, subject to stock. You need a confirmed appointment and our Pickup Authorization Pass before traveling. An order confirmation alone does not authorize pickup.
Can I return my order?
Eligible Standard Product return requests must be submitted within 30 calendar days of delivery or pickup. Large / Freight Equipment is generally not returnable for buyer’s remorse unless expressly approved in writing. Approved non-defective returns are subject to a 28% restocking fee, customer-paid return shipping, and applicable documented outbound shipping deductions. Review the Returns & Warranty tab and Return & Refund Policy for eligibility and exceptions.
What if my order arrives damaged or contains the wrong item?
Inspect the shipment promptly. For freight, record visible damage or shortages on the delivery receipt before signing. Photograph the issue, keep packaging, and contact us within 48 hours of delivery for visible damage, or within 48 hours of discovery for concealed damage after prompt inspection. Report an incorrect item promptly.
A clean delivery receipt does not automatically invalidate a concealed-damage claim. If freight is severely damaged or clearly unusable, contact us before accepting when reasonably possible; refusal may be appropriate. For approved wrong-item or confirmed transit-damage returns, we arrange and cover required return transport. Rights that cannot legally be waived remain unaffected.
When will my refund be issued?
After an authorized return reaches the approved facility, inspection and the decision normally take 2–4 business days. Approved refunds are generally submitted within another 5–10 business days: normally 7–14 business days in total. Your bank may take additional time to post the credit. We explain any further review and provide an expected decision date. Different or shorter deadlines may apply to cancellations or refunds required by law.
Who provides warranty coverage?
The applicable manufacturer provides warranty coverage where offered. Terms vary by brand and model; review the relevant warranty documentation before purchase. Contact Forgeline support for help with a claim.
Can I cancel an order that has not shipped?
Contact us promptly so we can check its status. Voluntary cancellation eligibility depends on the disclosed terms and fulfillment stage. If we cannot meet the stated shipment timeframe, we will notify you and provide the delay-consent and cancellation/refund options in our Shipping Policy. Required cancellation refunds for unshipped merchandise are not subject to restocking or cancellation fees.
How do I contact support?
Email support@forgelinesupplyco.com or call +1 (888) 896-7898, Monday–Friday, 9:00 AM–5:00 PM Mountain Time.
LTL Freight Shipment
What to Expect: Shipping & Delivery
Carrier Appointment
Many freight carriers contact the customer before final delivery to arrange an appointment, especially for residential delivery. Some shipments may require a signature at delivery.
Free Shipping
Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout. Unloading requirements for this item are shown with the delivery options.
Freight Inspection
Minor or visible damage — inspect before signing, photograph any damage, and describe it specifically on the Bill of Lading (e.g. “Crate damaged on left side”). A generic notation such as “subject to inspection” may not adequately document a freight claim. Retain all packaging and contact us within 48 hours.
Severe damage — if the shipment appears severely damaged, structurally compromised, or clearly unusable, contact Forgeline Supply Co. before accepting it. Refusal may be appropriate depending on the circumstances.
Documenting damage — failure to document visible damage on the Bill of Lading may affect or limit the ability to pursue a freight claim.
Product Gallery
2 Post Car Lifts
Compare similar models
Pick one or two models from the same category and see the specs side by side.
This model
Katool KT-M150D 15,000 lb Two Post Lift
Katool KT-M150D 15,000 lb Two Post Lift
Katool KT M150D 15,000 lb Two Post Lift FAQ
What is the Katool KT-M150D 15,000 lb Two Post Lift and what is it designed for?
The Katool KT-M150D is a commercial grade 15,000 lb capacity two post lift built for fleet shops, truck service bays, and high volume garages working on heavier vehicles than a 10,000 class lift can safely handle. The symmetric column geometry centers the load between the posts, and a direct drive cylinder system replaces traditional chain over sheave lifting for smoother cycles and fewer wearing parts. As a 2 post car lift, it raises cars, trucks, and SUVs by the frame so you can work on brakes, suspension, exhaust, and drivetrain with open access underneath. Two post lifts are a popular car lift for garage and professional shop use.
What is the capacity or rating of the Katool KT-M150D 15,000 lb Two Post Lift?
Listed capacity and rating details for the Katool KT-M150D 15,000 lb Two Post Lift: Lifting capacity 15,000 lbs; Maximum lifting height 72.83 in. Match the rating to the heaviest load you plan to handle, never exceed it, and follow the manufacturer manual. Rating is the first figure to compare when you look at two post lift options.
What are the dimensions and size specifications of the Katool KT-M150D 15,000 lb Two Post Lift?
Listed size details for the Katool KT-M150D 15,000 lb Two Post Lift: Overall height 176.8 in; Drive thru clearance 116 in. Use these figures to plan floor space, ceiling or doorway clearance, and storage before you order. These size figures are worth checking when you compare car lift for garage options.
What power, engine, or air requirements does the Katool KT-M150D 15,000 lb Two Post Lift list?
Listed power and air details for the Katool KT-M150D 15,000 lb Two Post Lift: Motor 4 HP / 3 kW; Voltage 220V / 60 Hz. Confirm that your site, shop power, and air supply match these figures before ordering.
What are the main features of the Katool KT-M150D 15,000 lb Two Post Lift?
Features listed for the Katool KT-M150D 15,000 lb Two Post Lift include: 15,000 lb lifting capacity, sized for trucks, vans, and commercial fleet vehicles; Direct drive cylinder system, smoother cycles and fewer wearing parts than chain over sheave designs; Symmetric two post geometry, load centers between the columns for balanced lifting; Single point lock release, one lever disengages both columns for controlled lowering; 72.83 in max lifting height, undercar clearance for stand up service; Q235 / Q245 structural steel column and lifting frame fabrication.
What should I check before ordering a 2 post car lift like the Katool KT-M150D 15,000 lb Two Post Lift?
Before ordering a two post lift, confirm the lifting capacity against your heaviest vehicle, measure your ceiling height against the overall height and the bay width against the overall width, check that your power supply matches the motor listing, and confirm your concrete floor meets the manufacturer requirements.
What is included with the Katool KT-M150D 15,000 lb Two Post Lift?
The product details state: Standard adapter kit included, round pads and stacking sleeves with the arms. Check the full description on this page for the complete list for the Katool KT-M150D 15,000 lb Two Post Lift.
How do I set up and use the Katool KT-M150D 15,000 lb Two Post Lift safely?
Install the lift on level, sound concrete following the manufacturer installation manual, anchor the columns as instructed, and set the arm restraints and lock the safety latches every time a vehicle is raised. Never work under a vehicle that is not resting on the mechanical locks.
