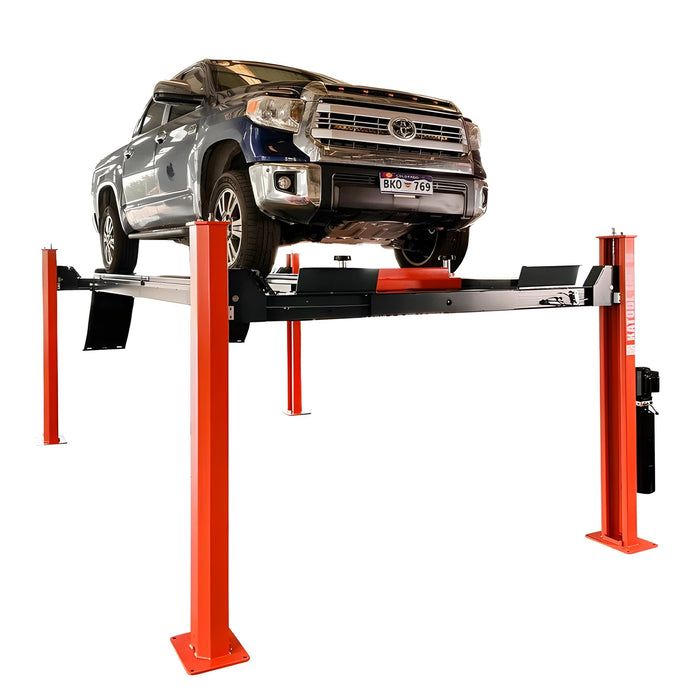

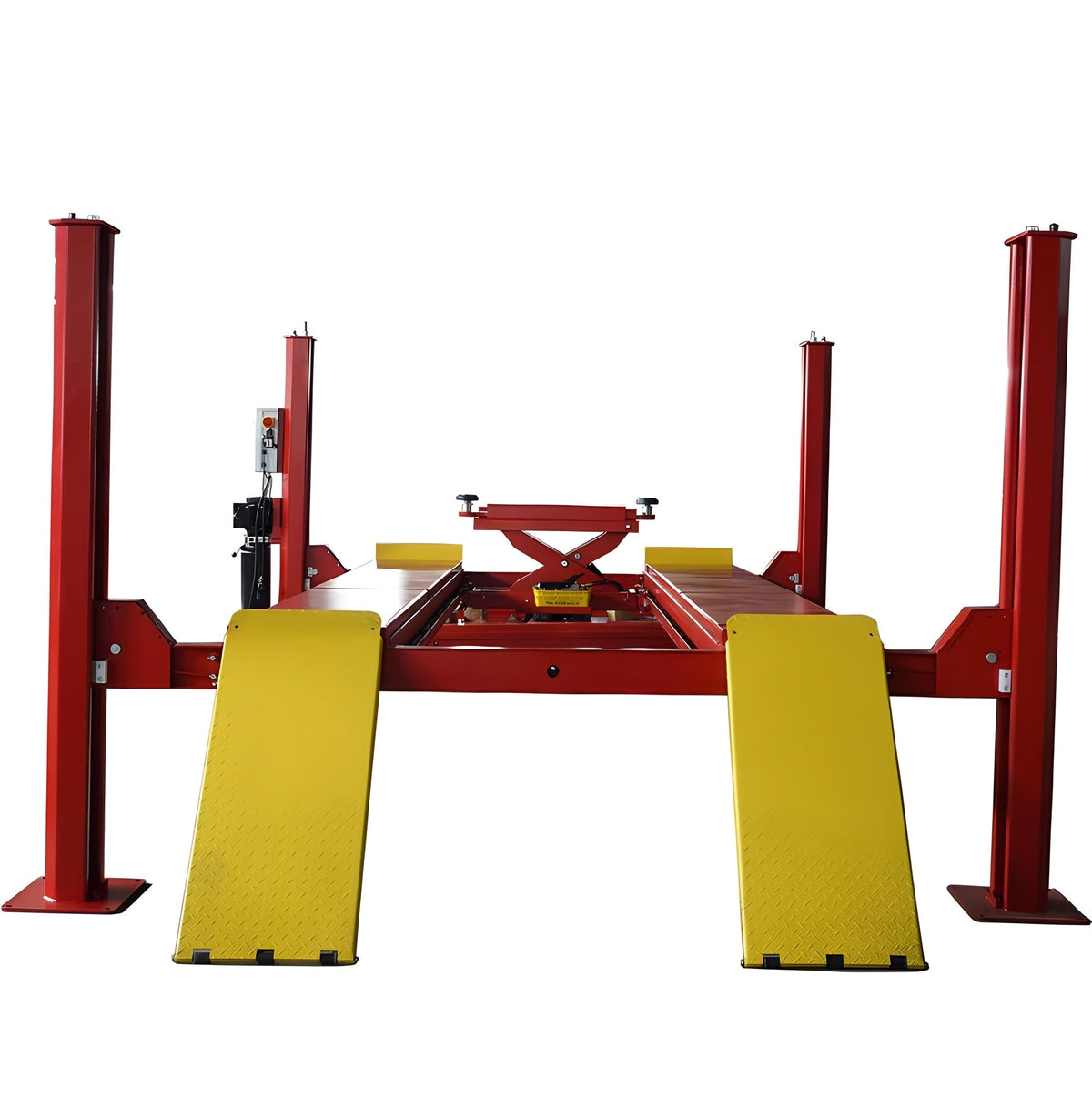

Katool KT-4H150 15,000 lb 4-Post Alignment Lift (RJ-60 Rolling Jack Included)
From
$7,000.00
Equipment price. Freight for this item is quoted separately.
Need Financing or Commercial Leasing?
Email Us About Payment Plans
Financing available through APPROVE
Learn about financing
Flexible equipment financing for qualified business customers. Subject to approval and lender terms.
- 15,000 lb lifting capacity — covers heavy trucks, vans, and long-wheelbase vehicles.
- CE Approved and Certified — 115% dynamic loading standard, 150% static load tested.
- Spring-loaded safety locks engage automatically and continuously as the lift rises.
- Secondary lock system acts as a slack-cable device in the event of cable failure.

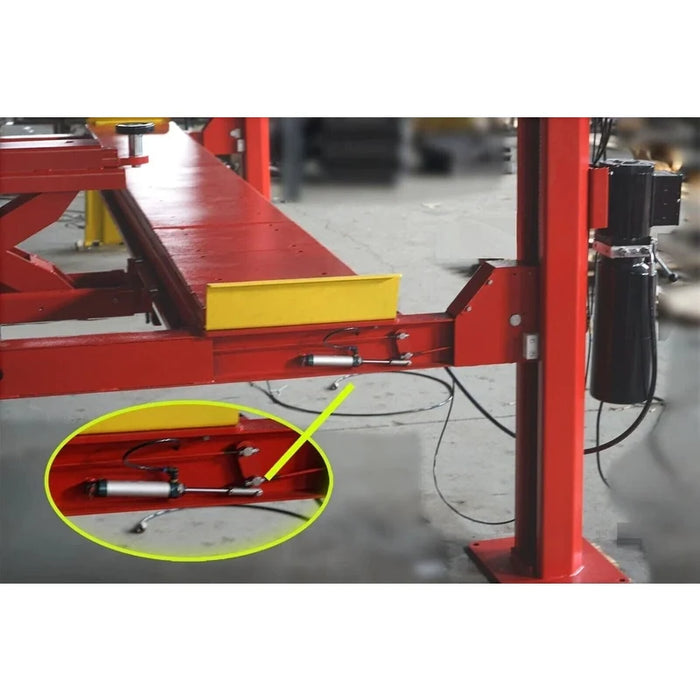

- Push-button pneumatic control releases all four independent safety locks simultaneously.
How would you like to get it?
Warehouse Pickup Availability
Pickup availability could not be confirmed. Please contact us before selecting warehouse pickup.
Warehouse availability is based on the supplier's most recent stock update and can change before pickup is arranged.
Ships to your address. Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout.
Forklift or equipment to unload is required at delivery.
Contact Us to Order
Or call or text +1 (888) 896-7898
Secure payment via:
Katool
LTL Freight Delivery
Most in-stock orders process within 2–5 business days.
Description
The Katool KT-4H150 is a 15,000 lb capacity four-post alignment lift built for shops that service heavy pickups, commercial vans, and long-wheelbase vehicles that outgrow a standard 9,000 or 11,000 lb lift. It is CE Approved and Certified, built to the 115% dynamic loading standard and tested at 150% static load. The runways are alignment-ready, and a Katool KT-RJ60 6,000 lb rolling jack ships with the lift, so wheels-free work — brakes, tires, suspension — is covered on day one without a separate purchase.
The locking system works continuously rather than at a single catch point: spring-loaded safety locks engage automatically as the runways rise, and a secondary lock system acts as a slack-cable device in the unlikely event of cable failure. Lowering onto locks is handled from one place — a push-button pneumatic control releases all four independent safety locks simultaneously, so there is no walking column to column with a pry bar.
For alignment work, turntables are optional — contact us to add them to your order. The powerside column can be installed at either side, front or rear, so the lift adapts to your bay layout instead of dictating it. Non-skid diamond-texture ramps and non-slip coated runways handle wet tires and daily traffic.

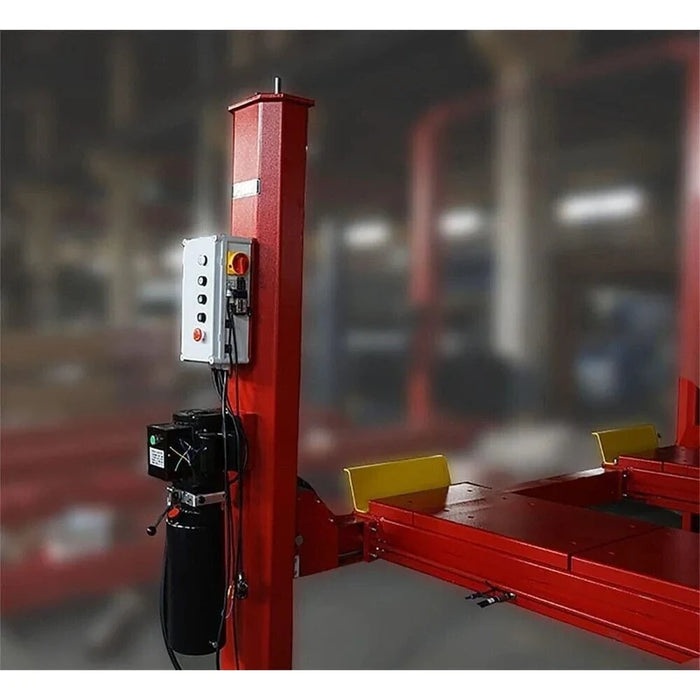

Power comes from a 3 kW hydraulic power unit running on 220V/60Hz single-phase, with a 110V single-phase option available for garages without a 220V circuit.
Katool's official walkthrough of the KT-4H150:
Concrete requirement: this lift must be installed on concrete at least 3.93 inches (100 mm) thick with a 3,000 PSI rating. Failure to install on proper concrete could result in serious injury or death. Verifying concrete thickness and strength before purchase and installation is the customer's responsibility.
The KT-4H150 ships by freight nationwide. Contact support@forgelinesupplyco.com or call +1 (888) 896-7898 to confirm availability before ordering.
Features
- 15,000 lb lifting capacity — covers heavy trucks, vans, and long-wheelbase vehicles.
- CE Approved and Certified — 115% dynamic loading standard, 150% static load tested.
- Spring-loaded safety locks engage automatically and continuously as the lift rises.
- Secondary lock system acts as a slack-cable device in the event of cable failure.
- Push-button pneumatic control releases all four independent safety locks simultaneously.
- Multiple adjustable locking positions for variable-height work.
- Powerside column installs at either side, front or rear.
- Non-skid diamond-texture ramps and non-slip coated runways.

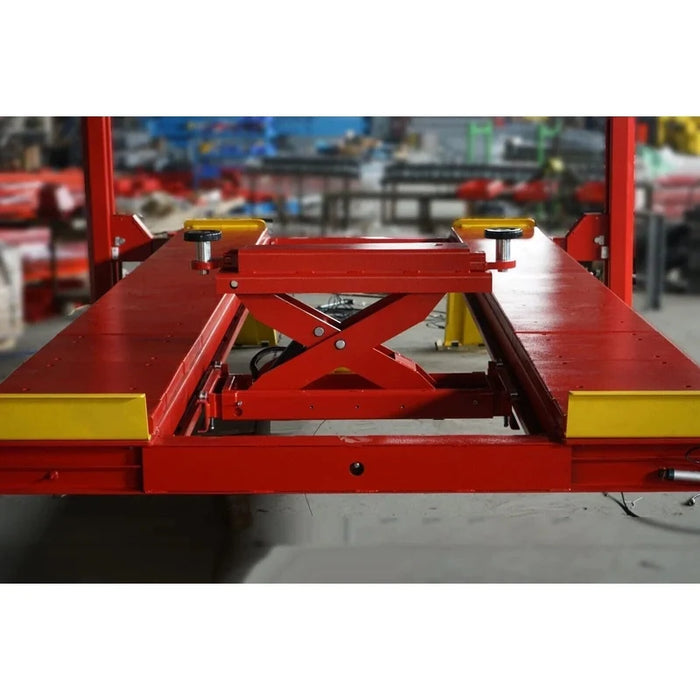

- Katool KT-RJ60 6,000 lb rolling jack included.
- 3 kW hydraulic power unit — 220V/60Hz/1PH standard, 110V/60Hz/1PH optional.
Specifications
| Katool KT-4H150 Specifications | |
|---|---|
| Model | KT-4H150 |
| Lifting capacity | 15,000 lbs (approx. 6,803 kg) |
| Max lifting height | Approx. 76" |
| Overall width | 136.06" (3,456 mm) |
| Overall length with ramps | 245.31" (6,231 mm) |
| Width between columns | 118.11" (3,000 mm) |
| Height of posts | Approx. 92" (2,332 mm) |
| Min runway height | 9.3" (236 mm) |
| Drive-thru clearance | 99.5" |
| Locking positions | 12, spaced every 4.7" |
| Materials | Q235 and Q245 steel |
| Motor / power | 3 kW, 220V/60Hz/1PH (110V optional) |
| Rolling jack capacity | 6,000 lbs (approx. 2,721 kg) |
| Net weight | Approx. 4,850 lbs (2,200 kg) |
| Safety certification | CE Certified (115% dynamic, 150% static) |
| Requires concrete at least 3.93" (100 mm) thick, rated 3,000 PSI. Verify before installation. | |
Warranty
Katool backs the KT-4H150 with a 12-month all-parts warranty covering cylinders, power units, motors, and electronics, plus a 3-year warranty on structural components. Optional 2-year extended warranty plans are available.
- Replacement parts are provided free of charge, including shipping.
- Claims must fall within the warranty period and are non-transferable.
- Labor costs are not included; equipment must not be disassembled before warranty approval.
Documents
Katool KT-4H150 User Manual (PDF)
