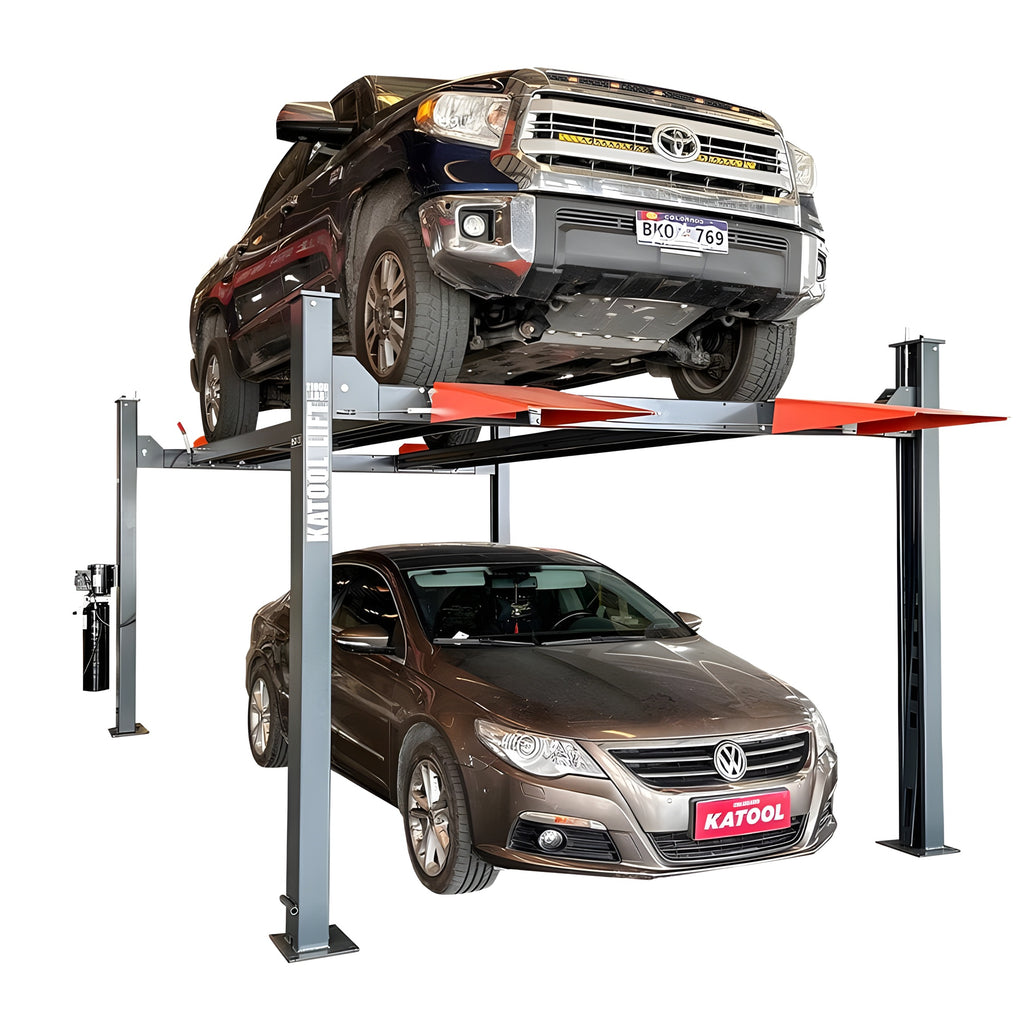

Katool KT-4H110 11,000 lb Four-Post Lift — Service & Storage, 110V or 220V

Description

The Katool KT-4H110 is an 11,000 lb capacity four-post lift that earns its floor space twice over: drive-on service for trucks, SUVs, and full-size vehicles, and double-stack parking that puts a second car over your daily driver. It is CE Approved and Certified, built to the 115% dynamic loading standard and tested at 150% static load, on a 6.8" x 4.7" steel post structure.

The safety system works in layers: 14 locking positions spaced every 4.7" across the travel, engaged by four mechanical locking devices with redundant primary and secondary locks, plus a slack-cable device at each column. Release is by single-point manual lever. The runways are non-skid diamond plate with 6.2" minimum height — low enough for most cars to drive on without scraping — rising to a 84.25" maximum that leaves standing room underneath.

Drip trays and a jack tray come included — the trays catch what the top car drips on the bottom car, and the tray bridges the runways for a bottle jack when wheels-free work comes up. For air/hydraulic wheels-free lifting, the Katool KT-RJ70 7,000 lb rolling jack is built to ride this lift's rails; a caster kit for moving the whole lift is also available.

Power is your choice at checkout: 110V or 220V single-phase — the 110V option means a standard garage outlet runs it. The lift ships from Katool's five US warehouses.

Features

• 11,000 lb capacity, CE Approved — 115% dynamic / 150% static tested.
• 14 locking positions at 4.7" spacing; redundant primary and secondary locks.
• Slack-cable safety devices at each column.
• 6.8" x 4.7" steel posts; non-skid diamond-plate runways.
• Drip trays and jack tray included.
• Single-point manual lock release.
• Power-side column installs at either position.
• 110V or 220V single-phase — selectable at checkout.
• Optional: KT-RJ70 rolling jack, caster kit.

Specifications

Warranty

Katool covers the KT-4H110 with a 12-month all-parts warranty — cylinders, power unit, motor, and electronics — plus a 3-year warranty on structural components. Replacement parts ship free; labor is not included, and claims require the original order number.

FAQ

Can I run it on a normal garage outlet?

Yes — choose the 110V configuration at checkout and it runs on standard household power. The 220V option suits shops with the circuit already in place.

Is it good for car storage?

That is half its job: park the daily driver underneath and store a second vehicle on the runways. The included drip trays keep the top car's fluids off the bottom car.

How do I lift wheels-free on it?

The included jack tray bridges the runways for a bottle jack; for air/hydraulic convenience, add the KT-RJ70 rolling jack, which is sized for this lift's rails.

What concrete do I need?

Minimum 4" thickness rated 3,000 PSI. Four-post lifts spread their load well, but verify your slab before installation.
