Katool
Katool H115Z 11,000lbs Two Post Lift
From
$2,379.00
Equipment price. Freight for this item is quoted separately.
Need Financing or Commercial Leasing?
Email Us About Payment Plans
Financing available through APPROVE
Learn about financing
Flexible equipment financing for qualified business customers. Subject to approval and lender terms.
- Ceiling Height: 11 ft minimum (110.9" overall)
- Floor Width: 12 ft minimum (140.4" overall width)
- Drive-Through Clearance: 98.4" (fits full-size trucks)
- Concrete Depth: 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation
- 2x lift columns with integrated base plates
How would you like to get it?
Warehouse Pickup Availability
Pickup availability could not be confirmed. Please contact us before selecting warehouse pickup.
Warehouse availability is based on the supplier's most recent stock update and can change before pickup is arranged.
Ships to your address. Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout.
Forklift or equipment to unload is required at delivery.
Contact Us to Order
Or call or text +1 (888) 896-7898
Secure payment via:
Katool
LTL Freight Delivery
Most in-stock orders process within 2–5 business days.

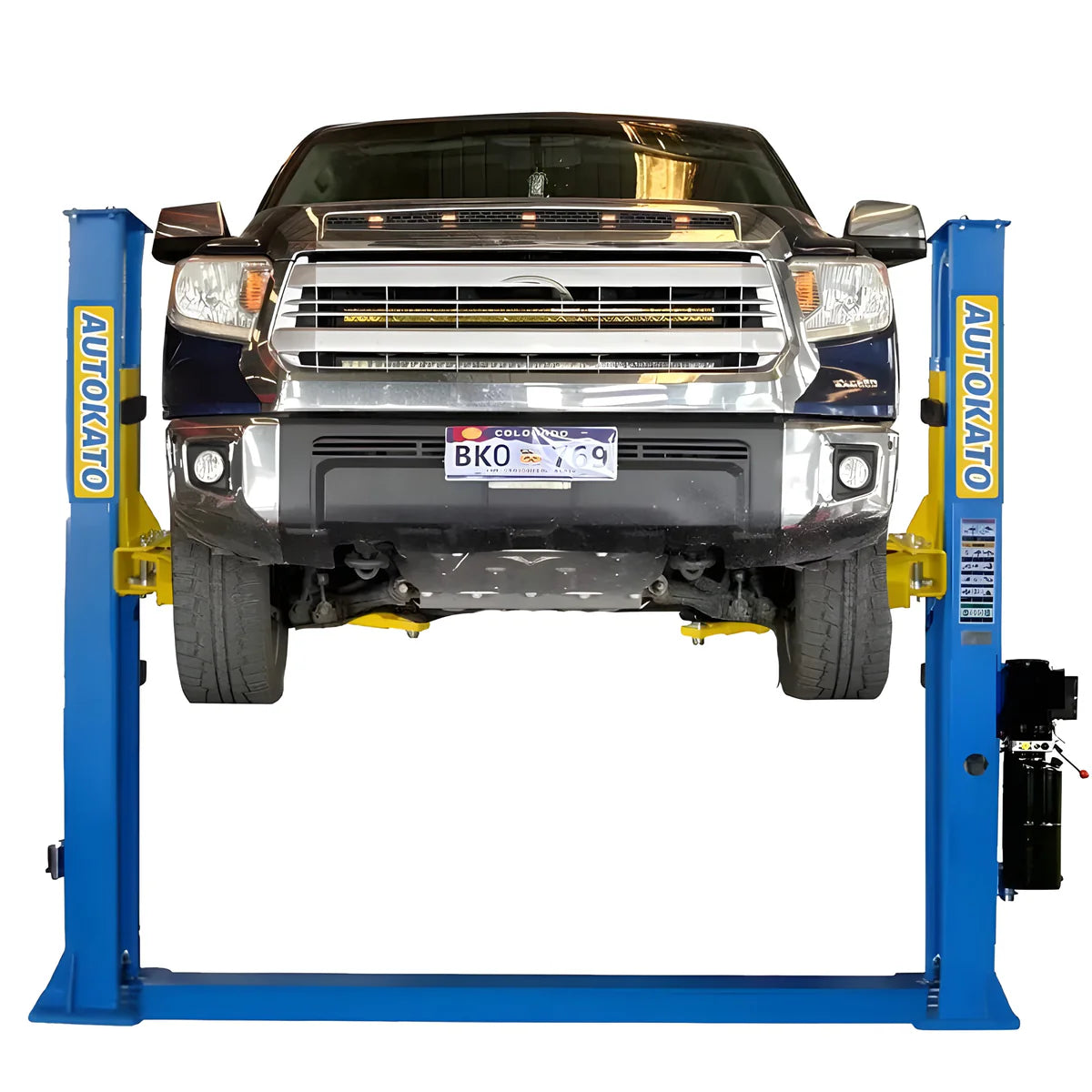

Lift trucks, SUVs, and full-size vehicles with confidence. The Katool H115Z delivers 11,000 lbs of lifting capacity through dual hydraulic chain-drive cylinders, the same system used in professional shop lifts costing twice as much. Base plate design means faster installation, no overhead beam, and easy unloading on delivery day.
1-year parts + 3-year structural warranty | CE certified (150% static load tested)
Will It Fit Your Garage?
Before you buy any two-post lift, check your ceiling. The H115Z requires a minimum ceiling height of 11 feet (110.9" overall height). Here's what you need:
- Ceiling Height: 11 ft minimum (110.9" overall)
- Floor Width: 12 ft minimum (140.4" overall width)
- Drive-Through Clearance: 98.4" (fits full-size trucks)
- Concrete Depth: 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation
What Makes the H115Z Different
Most two-post lifts in this price range use single-cylinder designs that wear unevenly over time. The H115Z uses dual hydraulic chain-drive cylinders — one inside each column — which means both arms rise at exactly the same rate. The result: smoother lifting, less stress on the frame, and a longer lifespan for the hydraulic system.

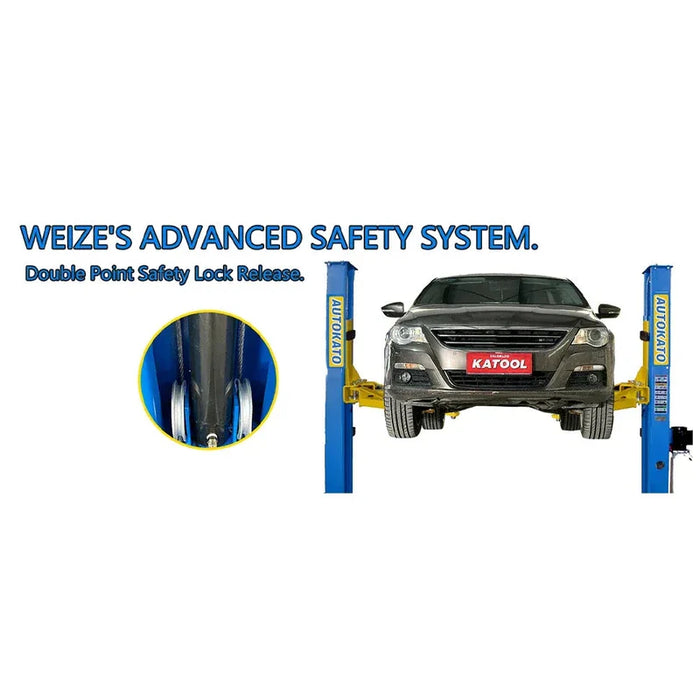

The dual-side manual safety lock release gives you multi-position locking at various heights so you can work under a vehicle without worrying. Combined with the automatic safety limit switch and heavy-gauge steel columns, this lift is CE approved and tested at 115% dynamic load and 150% static load.
Need doors to swing clear of the columns? The Katool KT-AS110D asymmetric clear-floor two-post trades the base plate for swing-past-the-column door access in the same 11,000 lb class.
What's in the Box
Every H115Z ships complete and ready to install:

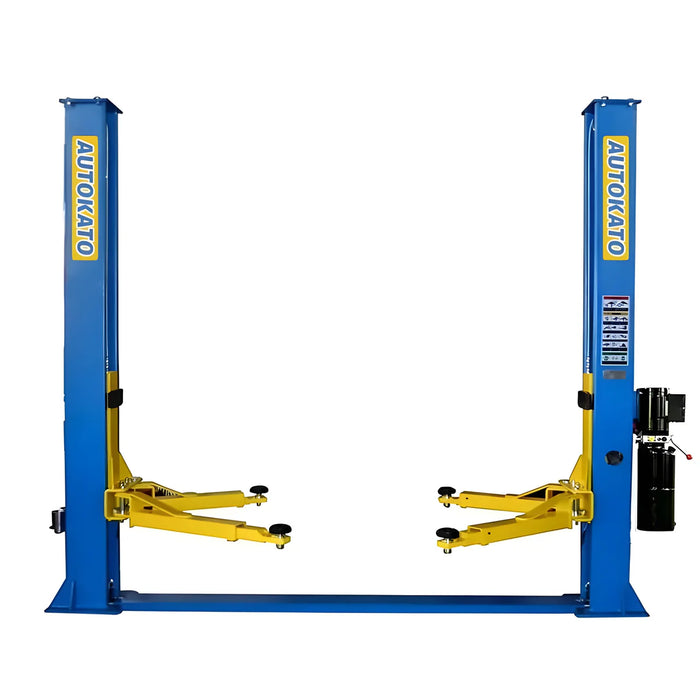

- 2x lift columns with integrated base plates

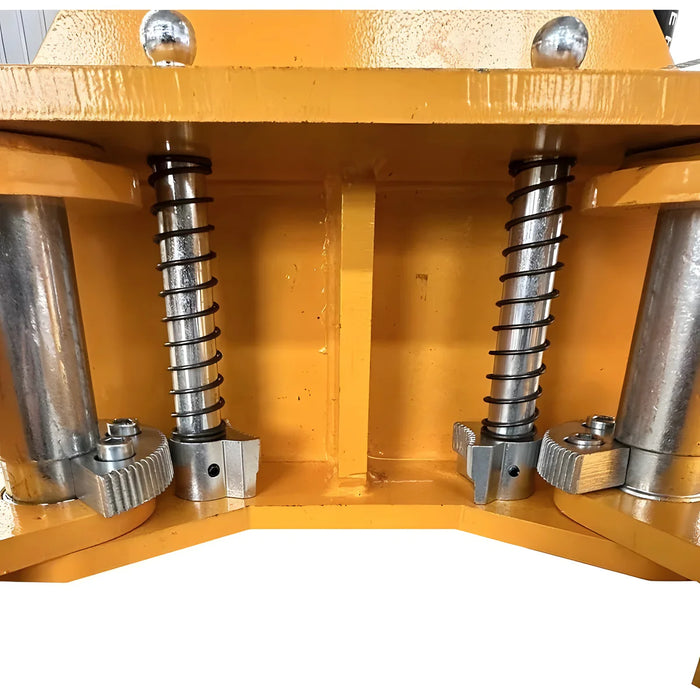

- 4x adjustable lift arms (2-stage front and rear)

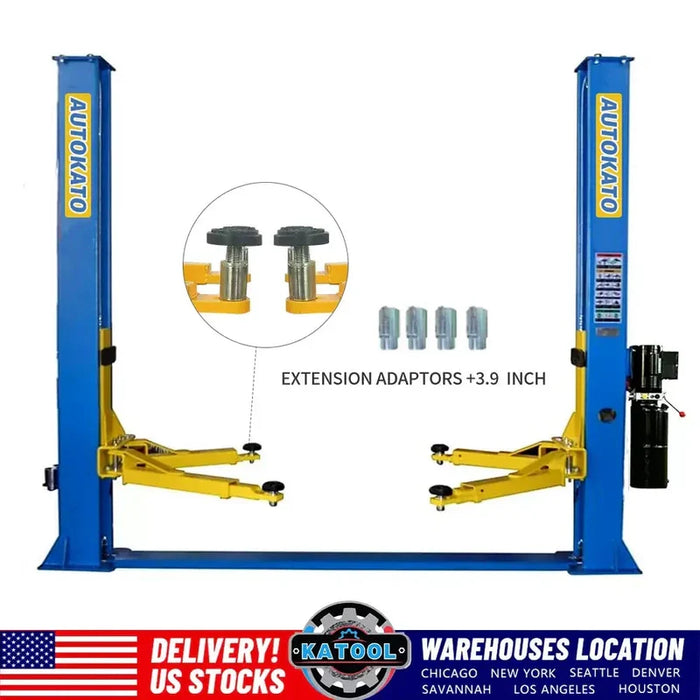

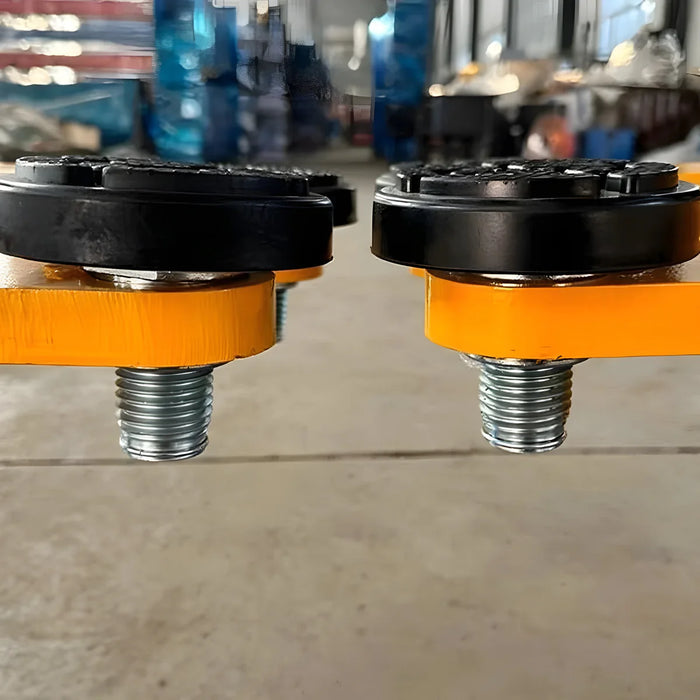

- 4x screw-on rubber lift pads with +100mm (3.9") extension adaptors
- 1x hydraulic power unit (220V / 60Hz / 1-Phase / 2.2KW motor)
- Rubber door guards included (many competitors charge extra)
- All mounting hardware and anchor bolts
Perfect For
The H115Z is built for anyone who needs reliable, professional-grade lifting power:
- Auto repair shops — handle cars, trucks, and SUVs up to 11,000 lbs all day
- Home garages — base plate design makes DIY installation manageable
- Dealerships & body shops — fast cycle times with smooth hydraulic operation
- Fleet maintenance facilities — built to handle high-volume daily use

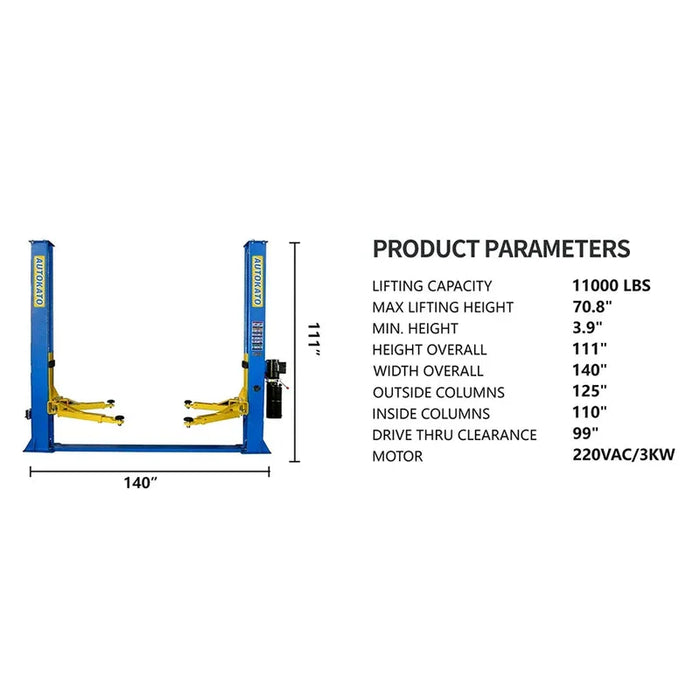

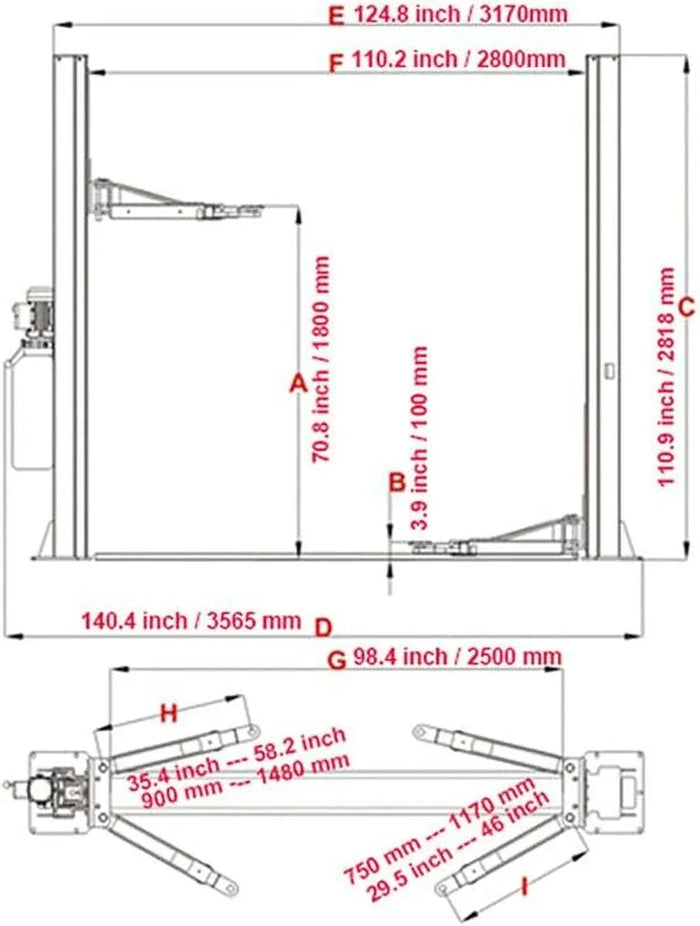

Specifications
| Lifting Capacity | 11,000 lbs (5,000 kg) |
| Max Lifting Height | 70.8" (1,800mm) |
| Minimum Height | 3.9" (100mm) |
| Overall Height | 110.9" (2,818mm) |
| Overall Width | 140.4" (3,565mm) |
| Outside Column Width | 124.8" (3,170mm) |
| Inside Column Width | 110.2" (2,800mm) |
| Drive-Through Clearance | 98.4" (2,500mm) |
| Front Arm Reach | 29.5" – 46" (2-stage adjustable) |
| Rear Arm Reach | 35.4" – 58.2" (2-stage adjustable) |
| Motor | 220VAC / 60Hz / 1-Phase / 2.2KW |
| Net Weight | 1,256 lbs (570 kg) |
| Design | Base Plate (no overhead beam) |
| Safety Lock Release | Manual (dual-side) |

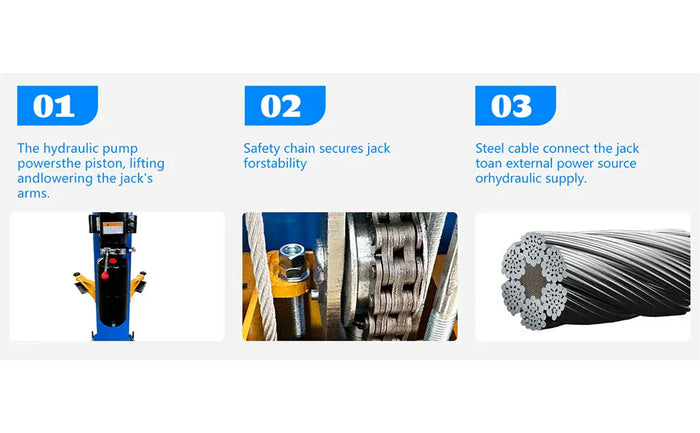

| Hydraulic System | Dual chain-drive cylinders |
| Extension Adaptors | Screw-on pads with +100mm adaptors (included) |
| Rubber Door Guards | Included |
| Certification | CE Approved (115% dynamic / 150% static tested) |
Warranty
Katool stands behind the H115Z with coverage that goes beyond the industry standard:
- 1-Year Full Parts Warranty — Covers cylinders, power unit, motor, and all electronics. Replacement parts shipped free.
- 3-Year Structural Warranty — Covers columns, arms, and base plates against structural defects.
- Optional 2-Year Extended Warranty — Available for purchase for additional peace of mind.
All warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer/owner. Claims are reviewed by Katool's service department and may require supporting photos or video of the defect.

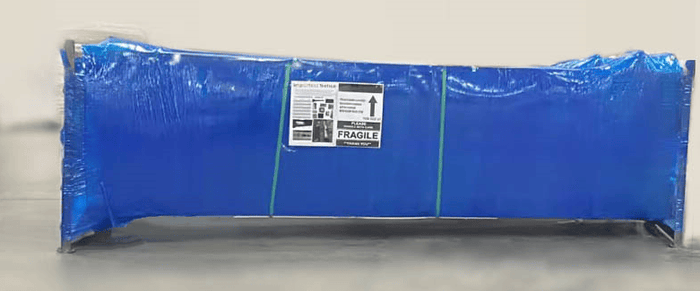

Base plate design means simpler delivery and unloading — no overhead beam to wrestle with. The lift arrives securely wrapped and palletized for safe freight delivery.
Resources
For more detailed information and guidance, you can download the following:
This item: freight delivery
This item ships by LTL freight carrier. Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout.
Shipping
Coverage and fulfillment
We ship to the 48 contiguous United States and Washington, DC. Products ship from manufacturing partners and fulfillment centers across the United States. Shipping method and cost depend on the product, selected delivery option, and destination.
Processing and delivery estimates
For standard in-stock parcel and freight orders, processing normally takes 2–5 business days, followed by an estimated 5–10 business days in transit. Typical total delivery is approximately 7–15 business days. Business days are Monday–Friday, excluding U.S. federal holidays. Orders placed outside business hours begin processing the next business day.
Any known longer product lead time is disclosed before purchase. Dates are estimates. If we cannot meet the stated shipment timeframe, we will notify you and explain your delay-consent and cancellation/refund options under our Shipping Policy.
Shipping charges
Where the selected shipping option expressly includes delivery, no additional shipping charge is added at checkout. Other products use disclosed flat, destination-zone, or calculated shipping rates. The applicable charge is shown before payment. Orders requiring a freight quote must have that quote accepted before purchase. Mixed orders may include more than one shipping charge.
Parcel delivery
Smaller products may ship by parcel carrier. Tracking is provided when available after shipment. Separate packages may arrive on different days. Parcel shipping does not include installation or assembly.
Freight delivery and unloading
Heavy, crated, or palletized equipment may ship by LTL or another freight carrier. Delivery is to a safe, truck-accessible curbside or receiving point. Inside placement, installation, unpacking, and assembly are not included unless expressly stated.
Where suitable liftgate service is included for the product, the carrier lowers the shipment to ground level. Products too large or heavy for liftgate service require customer-provided unloading equipment, such as a suitably rated forklift or compatible loading dock. The applicable requirement must be identified for the product before purchase. A pallet jack alone cannot lower freight from a truck.
We do not charge separate residential, commercial-address, or eligible liftgate service fees. Reasonable documented costs caused by a missed agreed appointment, inaccurate delivery information, or failure to provide previously disclosed unloading arrangements may apply under the Shipping Policy. Seller or carrier errors are not customer-caused delivery failures.
Warehouse pickup
Where offered, pickup depends on stock at the selected partner facility and requires a confirmed appointment and our Pickup Authorization Pass. An order confirmation is not pickup authorization. Pickup does not include delivery to your address.
Read the full Shipping Policy or contact support@forgelinesupplyco.com with questions.
Returns & Warranty
Standard Products
These generally include smaller parcel-shipped tools and accessories that do not require permanent installation. Eligible return requests must be submitted within 30 calendar days of delivery, or collection for warehouse pickup. Prior written RMA approval is required. Voluntary returns must meet our unused, uninstalled, complete, and original-packaging requirements.
Large / Freight Equipment
These include oversized, palletized, crated, freight-shipped, or installed equipment, such as vehicle lifts, tire changers, wheel balancers, and large cabinet systems. Returns for buyer’s remorse, incorrect selection, or site incompatibility are generally not accepted unless expressly approved in writing. Submit a voluntary-return request within 30 calendar days of delivery or pickup; requesting approval does not guarantee acceptance. The product’s applicable category and any additional restrictions must be disclosed before purchase.
Costs for approved non-defective returns
Approved voluntary returns are subject to a 28% restocking fee, customer-paid return shipping, and applicable documented outbound shipping deductions, including where the original delivery was included in the price. Freight return costs can be substantial. We provide an itemized estimate before you commit to an authorized return.
The restocking calculation excludes tax and separately charged shipping. If included outbound freight is deducted separately, it is first removed from the restocking calculation base. The same transport cost is not deducted twice. See the full policy for calculation details and condition-related deductions.
Wrong items, damage, and defects
Voluntary-return restrictions do not automatically exclude verified fulfillment errors, transit damage, or qualifying defect claims. For approved returns of wrong items or goods confirmed damaged in transit, we arrange and cover required return transportation, with no restocking fee. Defect remedies and transport costs follow the applicable warranty and law.
Authorization and refunds
Contact us before returning merchandise. Use only the return destination in your RMA; do not send goods to our mailing address unless that address is expressly authorized.
We normally inspect and notify you of our decision within 2–4 business days after receipt at the approved facility. Approved refunds are generally submitted to the original payment method within 5–10 business days after approval—normally 7–14 business days altogether, assuming approval follows inspection. Bank posting takes additional time. If further review is needed, we explain why and provide an expected decision date. Faster mandatory deadlines take precedence.
Manufacturer warranty
Warranty coverage, where offered, is provided by the applicable manufacturer and varies by brand and model. Coverage duration, parts, labor, transport costs, and exclusions are described in the applicable warranty documentation. A warranty claim is separate from a voluntary return. Contact us for assistance before returning equipment or undertaking repairs that may affect coverage. Manufacturer terms do not remove our obligations as seller or rights that cannot legally be excluded.
Read the full Return & Refund Policy and Warranty Policy. Contact support@forgelinesupplyco.com for assistance.
Return category for this item
Large / Freight Equipment — see Large / Freight Equipment above.
Manufacturer warranty for this product
How long does delivery take?
Standard in-stock parcel and freight orders normally ship within 2–5 business days, followed by an estimated 5–10 business days in transit. Typical total delivery is approximately 7–15 business days. Known longer product lead times are disclosed before purchase. Dates are estimates; tracking is provided when available after shipment.
Is shipping included?
It depends on the product, destination, and selected delivery option. If the option expressly includes shipping, no additional shipping charge is added at checkout. Otherwise, applicable flat, zone-based, or calculated charges are shown before payment. Quote-required orders need an accepted quote before purchase. Pickup is separate from delivery.
Will the driver unload freight?
Where suitable liftgate service is included for the product, the carrier lowers the shipment to ground level. Other equipment requires your suitably rated forklift or compatible loading dock. Review the product’s unloading requirements before ordering. Inside placement and installation are not included unless expressly stated.
Is warehouse pickup available?
Only where offered for the selected product and partner location, subject to stock. You need a confirmed appointment and our Pickup Authorization Pass before traveling. An order confirmation alone does not authorize pickup.
Can I return my order?
Eligible Standard Product return requests must be submitted within 30 calendar days of delivery or pickup. Large / Freight Equipment is generally not returnable for buyer’s remorse unless expressly approved in writing. Approved non-defective returns are subject to a 28% restocking fee, customer-paid return shipping, and applicable documented outbound shipping deductions. Review the Returns & Warranty tab and Return & Refund Policy for eligibility and exceptions.
What if my order arrives damaged or contains the wrong item?
Inspect the shipment promptly. For freight, record visible damage or shortages on the delivery receipt before signing. Photograph the issue, keep packaging, and contact us within 48 hours of delivery for visible damage, or within 48 hours of discovery for concealed damage after prompt inspection. Report an incorrect item promptly.
A clean delivery receipt does not automatically invalidate a concealed-damage claim. If freight is severely damaged or clearly unusable, contact us before accepting when reasonably possible; refusal may be appropriate. For approved wrong-item or confirmed transit-damage returns, we arrange and cover required return transport. Rights that cannot legally be waived remain unaffected.
When will my refund be issued?
After an authorized return reaches the approved facility, inspection and the decision normally take 2–4 business days. Approved refunds are generally submitted within another 5–10 business days: normally 7–14 business days in total. Your bank may take additional time to post the credit. We explain any further review and provide an expected decision date. Different or shorter deadlines may apply to cancellations or refunds required by law.
Who provides warranty coverage?
The applicable manufacturer provides warranty coverage where offered. Terms vary by brand and model; review the relevant warranty documentation before purchase. Contact Forgeline support for help with a claim.
Can I cancel an order that has not shipped?
Contact us promptly so we can check its status. Voluntary cancellation eligibility depends on the disclosed terms and fulfillment stage. If we cannot meet the stated shipment timeframe, we will notify you and provide the delay-consent and cancellation/refund options in our Shipping Policy. Required cancellation refunds for unshipped merchandise are not subject to restocking or cancellation fees.
How do I contact support?
Email support@forgelinesupplyco.com or call +1 (888) 896-7898, Monday–Friday, 9:00 AM–5:00 PM Mountain Time.
LTL Freight Shipment
What to Expect: Shipping & Delivery
Carrier Appointment
Many freight carriers contact the customer before final delivery to arrange an appointment, especially for residential delivery. Some shipments may require a signature at delivery.
Free Shipping
Free shipping to the 48 contiguous U.S. states and DC. No shipping charge is added at checkout. Unloading requirements for this item are shown with the delivery options.
Freight Inspection
Minor or visible damage — inspect before signing, photograph any damage, and describe it specifically on the Bill of Lading (e.g. “Crate damaged on left side”). A generic notation such as “subject to inspection” may not adequately document a freight claim. Retain all packaging and contact us within 48 hours.
Severe damage — if the shipment appears severely damaged, structurally compromised, or clearly unusable, contact Forgeline Supply Co. before accepting it. Refusal may be appropriate depending on the circumstances.
Documenting damage — failure to document visible damage on the Bill of Lading may affect or limit the ability to pursue a freight claim.
Product Gallery
2 Post Car Lifts
Compare similar models
Pick one or two models from the same category and see the specs side by side.
This model
Katool H115Z 11,000lbs Two Post Lift
Katool H115Z 11,000lbs Two Post Lift
Katool H115Z Two Post Lift FAQ
How much ceiling height and floor space does the Katool H115Z need?
The H115Z needs a minimum ceiling height of 11 feet, as its overall height is 110.9". It needs a floor width of at least 12 feet (140.4" overall width), and the drive through clearance is 98.4", which fits full size trucks. The base plate design has no overhead beam.
What concrete and power does the H115Z need?
The listed concrete depth is 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. The hydraulic power unit has a 220V, 60Hz, 1 phase, 2.2KW motor.
How does the H115Z lift and lock a vehicle?
It lifts up to 11,000 lbs (5,000 kg) with dual hydraulic chain drive cylinders, one inside each column, so both arms rise at the same rate. Max lifting height is 70.8" and minimum height is 3.9". A dual side manual safety lock release gives multi position locking at various heights, and there is an automatic safety limit switch. The lift is CE approved and tested at 115% dynamic load and 150% static load.
What warranty comes with the Katool H115Z?
Katool covers the H115Z with a 1 year full parts warranty (cylinders, power unit, motor and all electronics) and a 3 year structural warranty (columns, arms and base plates against structural defects). An optional 2 year extended warranty is available for purchase. Warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer or owner.
What comes in the box with the Katool H115Z?
Every H115Z ships with 2 lift columns with integrated base plates, 4 adjustable lift arms (2 stage front and rear), 4 screw on rubber lift pads with 100mm (3.9") extension adaptors, a hydraulic power unit (220V, 60Hz, 1 phase, 2.2KW motor), rubber door guards, and all mounting hardware and anchor bolts.
