Olympic Triple Stacker-S — Three-Level 3-Car Storage Lift
$15,999.00
Need Financing or Commercial Leasing?
Contact Us for Payment Plans

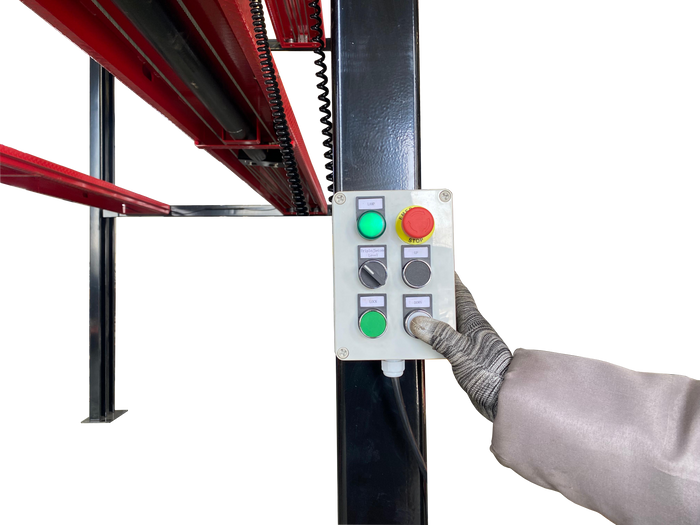

- "The Triple-stacker-S" Car Storage LiftModel: 4032-S. "The Triple-Stacker-S" Car Storage Lift is designed for multi-vehicle storage. Features Olympics' exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.
- Triple your parking space with the 4032S Car Stacking lift.
- The Triple Stacker "S" model is designed to stack and store three vehicles in one parking space. Big enough to accommodate virtually any car or medium-sized pickup truck. 11,000 lb. total load capacity (5,000 upper + 6,000 lower deck).Capacity: 11,000 lbs. | Drive Through Width: 95.3″ | Max. Lift | Height: 153.74″
- *Special Order Only. See Company Policies for more details.
- Lifting Capacity 5,000 lbs. Overall Width (A) 101.42″ Overall Length (B) 230.83″ Height of Columns (C) 172″ Drive-thru Clearance (D) 95.3″ Maximum Rise (E) 150.6″ Maximum Lifting Height (F) 153.74″ Distance Between Platforms (G) 74.33″ Runway Width (H) 21.77″ Width Between Runways (I) 34.25″ Runway Length (J) 194.8″ Columns to Columns (K) 202.56″ Locking Positions Top end Lifting Time to Max. Rise 90 seconds Lifting Capacity 6,000 lbs. Maximum Rise (E) 71.46″ Maximum Lifting Height (F) 76.26″ Runway Width (H) 18.6″ Width Between Runways (I) 37.4″ Platform Thickness (L) 4.80″ Runway Length (J) 188″ Surface Treatment Powder coated Motor 2.2KW / 110V / 220V or 3KW 220V Steel Q235B
Delivery & Unloading: Warehouse Pickup
Warehouse Pickup Available
Olympic Shop Equipment
17212 51st Ave NE, Arlington, WA 98223
Get directions → · Contact us to arrange pickup.
Secure payment via:
Authorized Partner
Official Source
LTL Freight Delivery
Scheduled & insured delivery

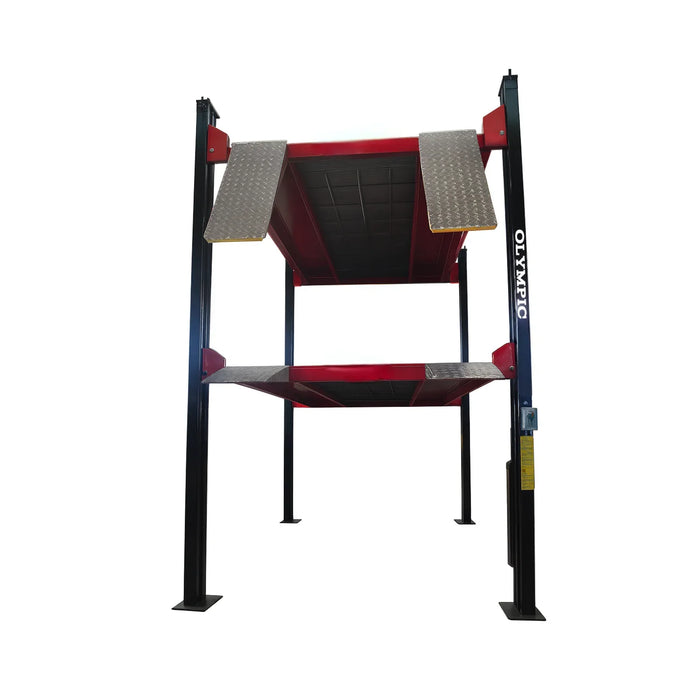

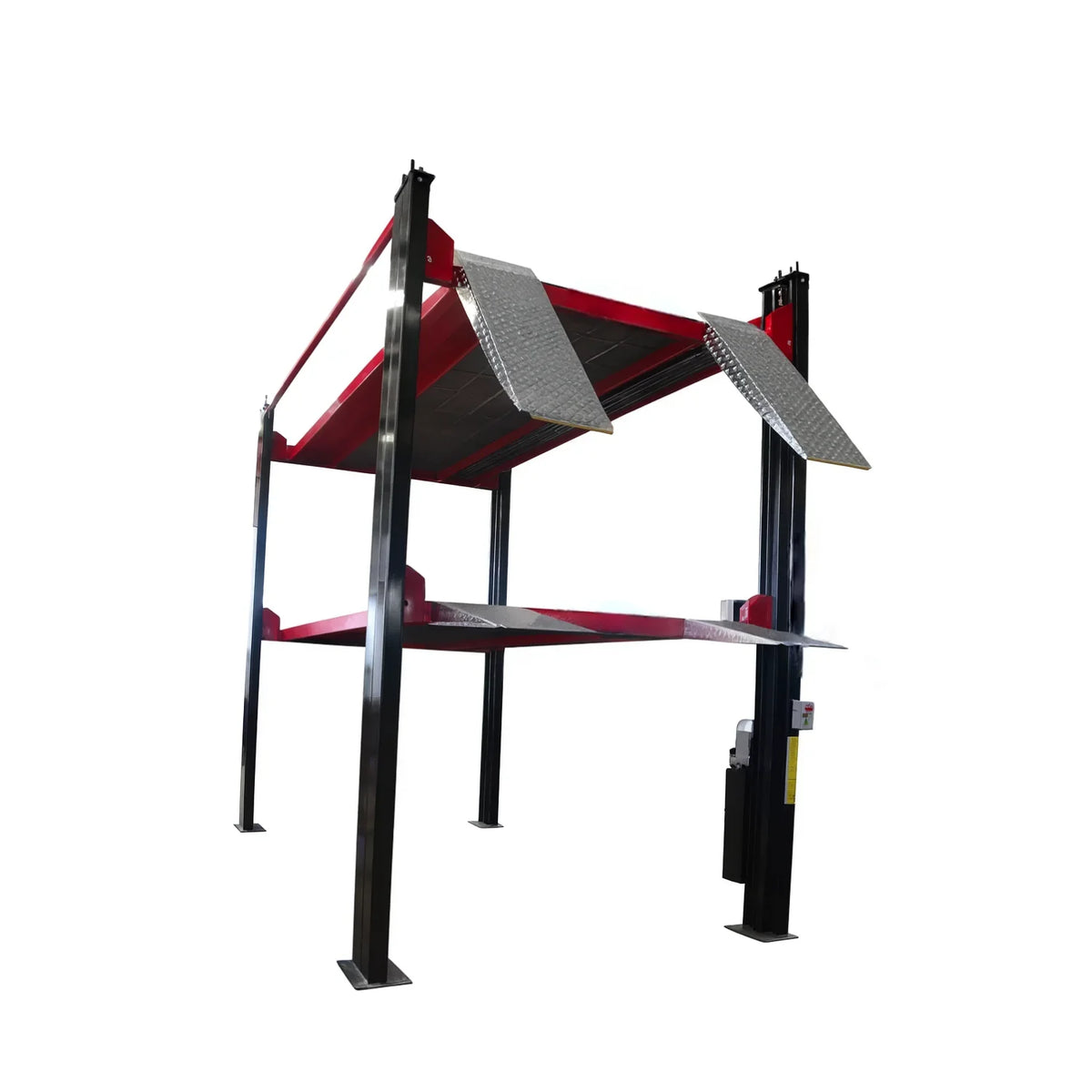

"The Triple-stacker-S" Car Storage Lift
Model: 4032-S. "The Triple-Stacker-S" Car Storage Lift is designed for multi-vehicle storage. Features Olympics' exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.
Triple your parking space with the 4032S Car Stacking lift.
The Triple Stacker "S" model is designed to stack and store three vehicles in one parking space. Big enough to accommodate virtually any car or medium-sized pickup truck. 11,000 lb. total load capacity (5,000 upper + 6,000 lower deck).
Capacity: 11,000 lbs. | Drive Through Width: 95.3″ | Max. Lift | Height: 153.74″
*Special Order Only. See Company Policies for more details.

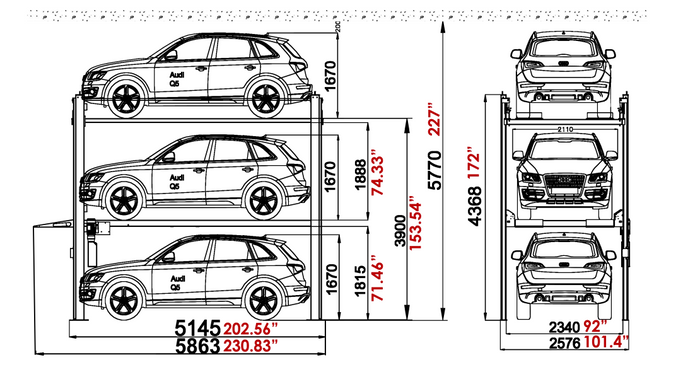

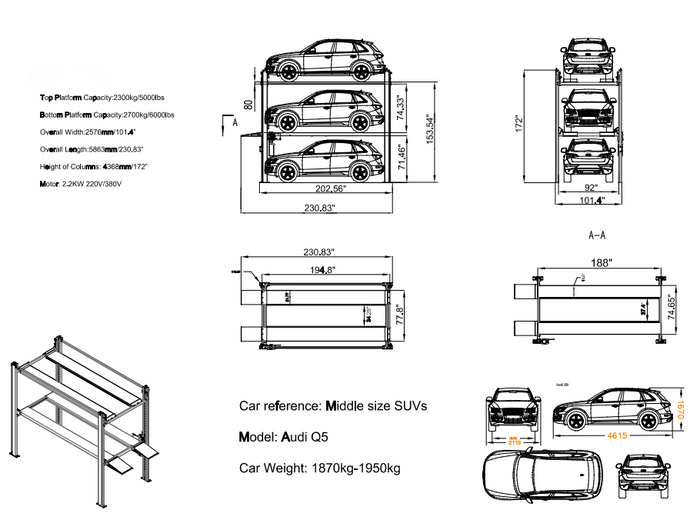

| Lifting Capacity | 5,000 lbs. |
| Overall Width (A) | 101.42″ |
| Overall Length (B) | 230.83″ |
| Height of Columns (C) | 172″ |
| Drive-thru Clearance (D) | 95.3″ |
| Maximum Rise (E) | 150.6″ |
| Maximum Lifting Height (F) | 153.74″ |
| Distance Between Platforms (G) | 74.33″ |
| Runway Width (H) | 21.77″ |
| Width Between Runways (I) | 34.25″ |
| Runway Length (J) | 194.8″ |
| Columns to Columns (K) | 202.56″ |
| Locking Positions | Top end |
| Lifting Time to Max. Rise | 90 seconds |
| Lifting Capacity | 6,000 lbs. |
| Maximum Rise (E) | 71.46″ |
| Maximum Lifting Height (F) | 76.26″ |
| Runway Width (H) | 18.6″ |
| Width Between Runways (I) | 37.4″ |
| Platform Thickness (L) | 4.80″ |
| Runway Length (J) | 188″ |
| Surface Treatment | Powder coated |
| Motor | 2.2KW / 110V / 220V or 3KW 220V |
| Steel | Q235B |
