Olympic Equipment
Olympic 4PXLA-10 "The Dually" — 10,000 lb Alignment Lift with Scissor Jacks
$9,255.00
Need Financing or Commercial Leasing?
Contact Us for Payment Plans
- Industry-Best 10-Year Warranty
- High-quality Q235 structural steel construction
- Designed for dual-wheel long-bed trucks & service vehicles
- Portable drive-through configuration
- 112″ drive-through width
Delivery & Unloading: Warehouse Pickup
Warehouse Pickup Available
Olympic Shop Equipment
17212 51st Ave NE, Arlington, WA 98223
Get directions → · Contact us to arrange pickup.
Secure payment via:
Authorized Partner
Official Source
LTL Freight Delivery
Scheduled & insured delivery
THE ONLY 4-POST ALIGNMENT LIFT WITH BUILT-IN SCISSOR JACKS!

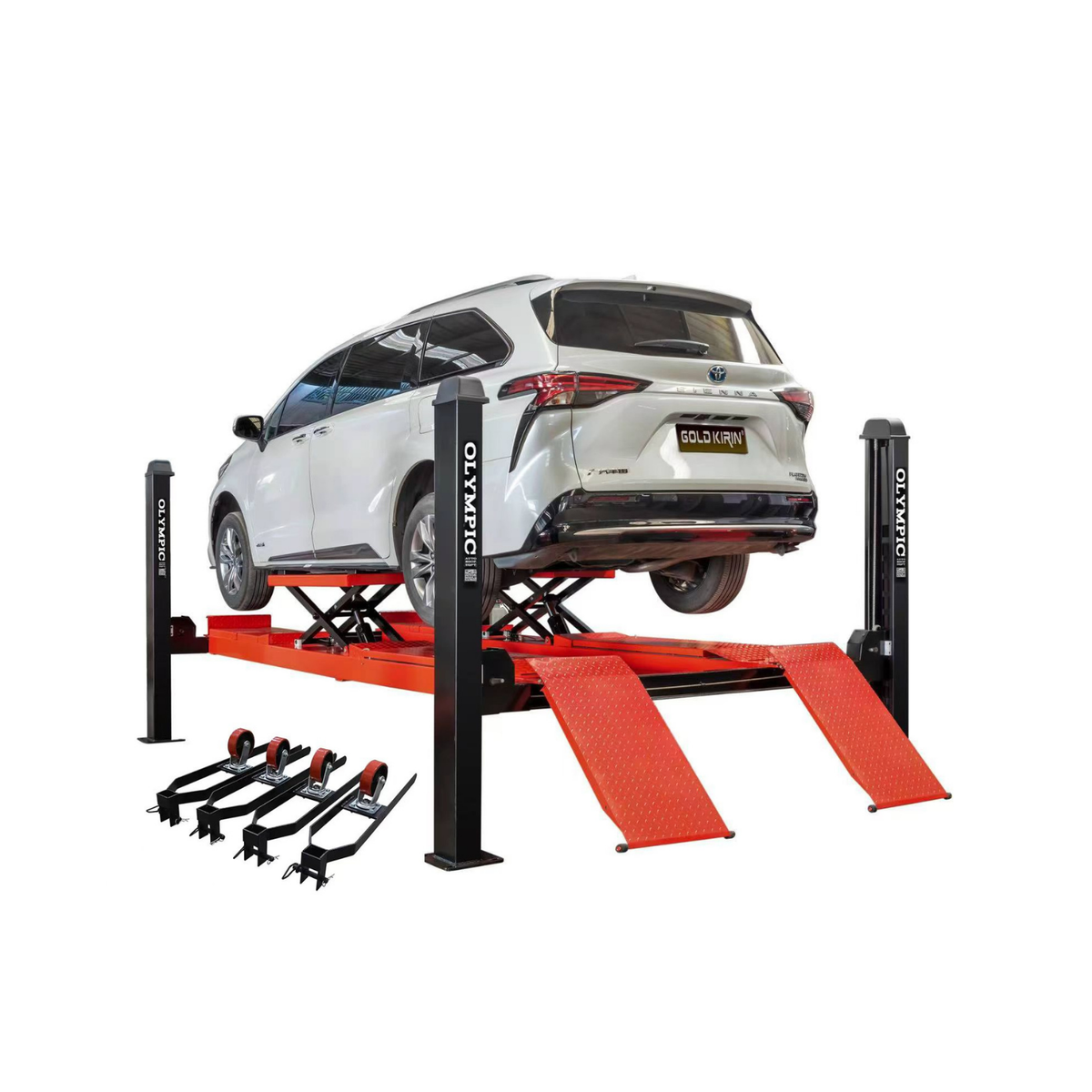

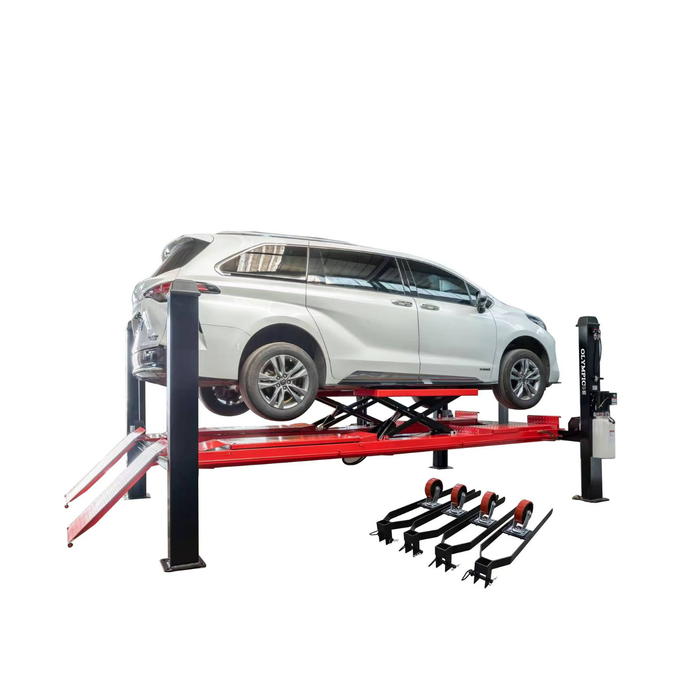

The 4PXLA-10 “Dually” is the Swiss-Army Knife of alignment lifts — designed specifically to accommodate dual-wheel trucks, service vehicles, and super-wide cars. Perfect for service, storage, maintenance, brake and wheel work, and four-wheel alignment.

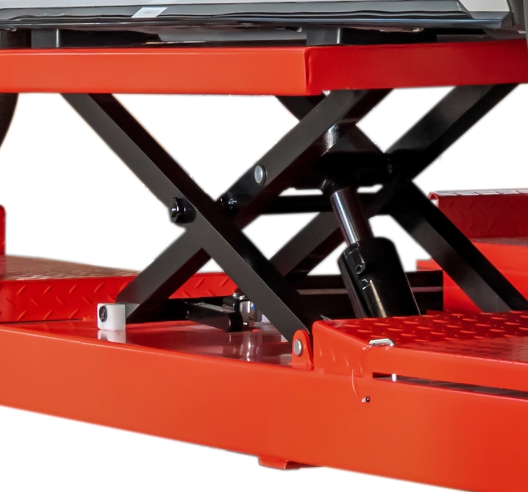

Our exclusive built-in scissor jack design eliminates the need for bulky bridge jacks. Lift vehicles directly off the runways without repositioning equipment — saving time, space, and labor.

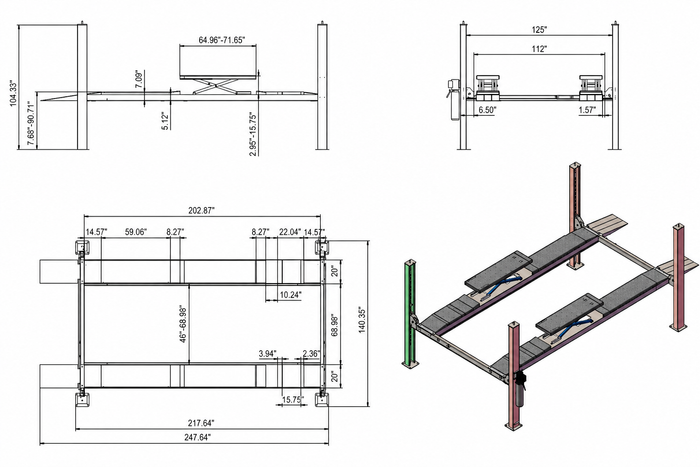

Capacity: 10,000 lbs. Drive-Through Width: 112″ Maximum Clearance Under Runways: 84.89″ Width Between Posts: 125″
NOTICE: This product is currently on sale for 25% off, however the page is glitched, and not showing the normal price which is $12,073.33. We are actively working to fix this issue.
| Style | 4-Post Dually Alignment Lift with Built-In Scissor Jacks |
| Capacity | 10,000 lbs. |
| Overall Length (Including Ramps) | 249.30″ |
| Overall Platform Length | 217.64″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive-Through Width | 112″ |
| Width Between Posts | 125″ |
| Lifting Range | 7.68″ – 90.71″ |
| Maximum Clearance Under Runways | 84.89″ |
| Runway Width (Adjustable) | 64.96″ – 71.65″ |
| Width Between Tracks | 46″ |
| Runway Metal Thickness | 5mm (0.196″) |
| Post Steel Thickness | 4mm (0.157″) |
| Cable Diameter | 9.53mm (0.375″) |
| Steel Grade | Q235 |
| Speed of Rise | Approximately 50 seconds |
| Speed of Lowering | Approximately 50 seconds |
| Power Unit | 3HP / 2.2KW (110V standard, 220V optional) |
- Industry-Best 10-Year Warranty
- High-quality Q235 structural steel construction
- Designed for dual-wheel long-bed trucks & service vehicles
- Portable drive-through configuration
- 112″ drive-through width
- 125″ between posts
- Adjustable runway width (46″ – 69″)
- 19 locking ladder positions
- Durable powder-coated finish
- Includes turntables and slip plates
- Includes 6,500 lb. capacity scissor jacks built into runways
- Includes portability package (caster kit)
- Includes removable approach ramps
- Includes removable wheel stops
- 110V 2.2KW power unit included
- Optional 220V 3hp power unit available
- Certified & tested at 150% of rated capacity
| Attribute | Value |
|---|---|
| Style | 4-Post Dually Alignment Lift with Built-In Scissor Jacks |
| Capacity | 10,000 lbs. |
| Overall Length (Including Ramps) | 249.30″ |
| Overall Platform Length | 217.64″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive-Through Width | 112″ |
| Width Between Posts | 125″ |
| Lifting Range | 7.68″ – 90.71″ |
| Maximum Clearance Under Runways | 84.89″ |
| Runway Width (Adjustable) | 64.96″ – 71.65″ |
| Width Between Tracks | 46″ |
| Runway Metal Thickness | 5mm (0.196″) |
| Post Steel Thickness | 4mm (0.157″) |
| Cable Diameter | 9.53mm (0.375″) |
| Steel Grade | Q235 |
| Speed of Rise | Approximately 50 seconds |
| Speed of Lowering | Approximately 50 seconds |
| Power Unit | 3HP / 2.2KW (110V standard, 220V optional) |
When you invest in an Olympic lift, you’re investing in performance, durability, and long-term reliability. Built with premium materials, engineered for safety, and certified to perform at 150% of rated capacity — this may be the last lift you ever need to buy.
