Katool
Katool H115Z 11,000lbs Two Post Lift
$1,999.00
- Ceiling Height: 11 ft minimum (110.9" overall)
- Floor Width: 12 ft minimum (140.4" overall width)
- Drive-Through Clearance: 98.4" (fits full-size trucks)
- Concrete Depth: 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation
- 2x lift columns with integrated base plates
Default Title: Default Title
Authorized Dealer
Expert Technical Support
Lowest Price Guarantee
Manufacturer Warranty Included
Secure payment via:
Authorized Partner
Official Source
Fast Dispatch
Ships in 3–5 Business Days
Description
Lift trucks, SUVs, and full-size vehicles with confidence. The Katool H115Z delivers 11,000 lbs of lifting capacity through dual hydraulic chain-drive cylinders, the same system used in professional shop lifts costing twice as much. Base plate design means faster installation, no overhead beam, and easy unloading on delivery day.
1-year parts + 3-year structural warranty | CE certified (150% static load tested)
Will It Fit Your Garage?
Before you buy any two-post lift, check your ceiling. The H115Z requires a minimum ceiling height of 11 feet (110.9" overall height). Here's what you need:
- Ceiling Height: 11 ft minimum (110.9" overall)
- Floor Width: 12 ft minimum (140.4" overall width)
- Drive-Through Clearance: 98.4" (fits full-size trucks)
- Concrete Depth: 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation
What Makes the H115Z Different

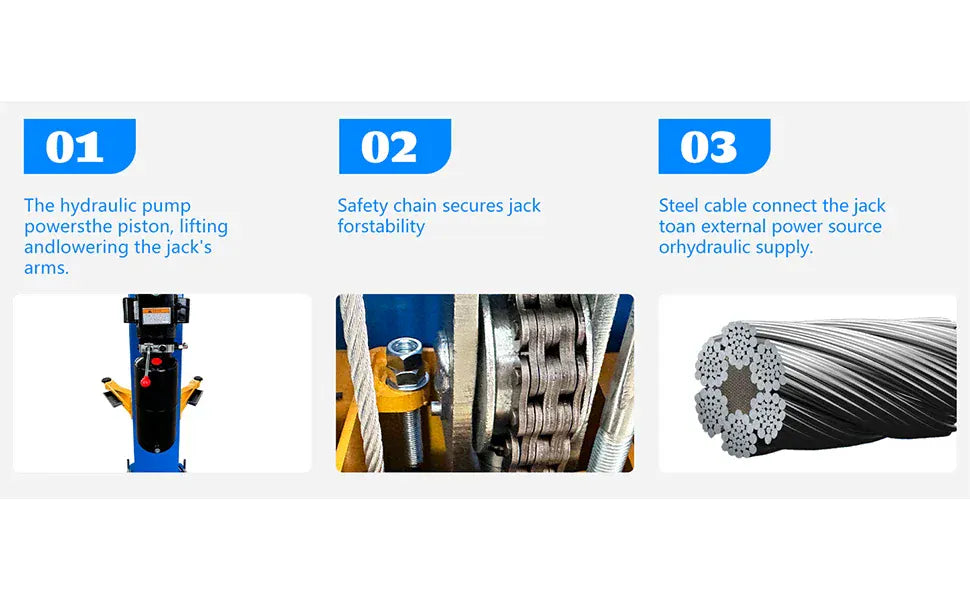

Most two-post lifts in this price range use single-cylinder designs that wear unevenly over time. The H115Z uses dual hydraulic chain-drive cylinders — one inside each column — which means both arms rise at exactly the same rate. The result: smoother lifting, less stress on the frame, and a longer lifespan for the hydraulic system.
The dual-side manual safety lock release gives you multi-position locking at various heights so you can work under a vehicle without worrying. Combined with the automatic safety limit switch and heavy-gauge steel columns, this lift is CE approved and tested at 115% dynamic load and 150% static load.
Need doors to swing clear of the columns? The Katool KT-AS110D asymmetric clear-floor two-post trades the base plate for swing-past-the-column door access in the same 11,000 lb class.
What's in the Box
Every H115Z ships complete and ready to install:
- 2x lift columns with integrated base plates
- 4x adjustable lift arms (2-stage front and rear)
- 4x screw-on rubber lift pads with +100mm (3.9") extension adaptors
- 1x hydraulic power unit (220V / 60Hz / 1-Phase / 2.2KW motor)
- Rubber door guards included (many competitors charge extra)
- All mounting hardware and anchor bolts
Perfect For
The H115Z is built for anyone who needs reliable, professional-grade lifting power:
- Auto repair shops — handle cars, trucks, and SUVs up to 11,000 lbs all day
- Home garages — base plate design makes DIY installation manageable
- Dealerships & body shops — fast cycle times with smooth hydraulic operation
- Fleet maintenance facilities — built to handle high-volume daily use

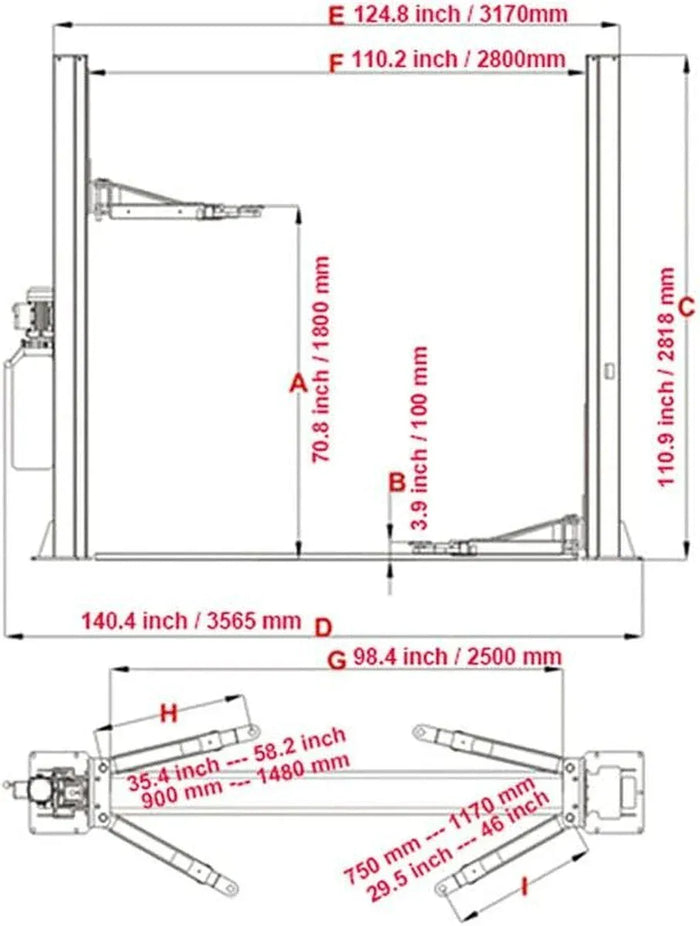

Specifications
| Lifting Capacity | 11,000 lbs (5,000 kg) |
| Max Lifting Height | 70.8" (1,800mm) |
| Minimum Height | 3.9" (100mm) |
| Overall Height | 110.9" (2,818mm) |
| Overall Width | 140.4" (3,565mm) |
| Outside Column Width | 124.8" (3,170mm) |
| Inside Column Width | 110.2" (2,800mm) |
| Drive-Through Clearance | 98.4" (2,500mm) |
| Front Arm Reach | 29.5" – 46" (2-stage adjustable) |
| Rear Arm Reach | 35.4" – 58.2" (2-stage adjustable) |
| Motor | 220VAC / 60Hz / 1-Phase / 2.2KW |
| Net Weight | 1,256 lbs (570 kg) |
| Design | Base Plate (no overhead beam) |
| Safety Lock Release | Manual (dual-side) |
| Hydraulic System | Dual chain-drive cylinders |
| Extension Adaptors | Screw-on pads with +100mm adaptors (included) |
| Rubber Door Guards | Included |
| Certification | CE Approved (115% dynamic / 150% static tested) |
Warranty
Katool stands behind the H115Z with coverage that goes beyond the industry standard:
- 1-Year Full Parts Warranty — Covers cylinders, power unit, motor, and all electronics. Replacement parts shipped free.
- 3-Year Structural Warranty — Covers columns, arms, and base plates against structural defects.
- Optional 2-Year Extended Warranty — Available for purchase for additional peace of mind.
All warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer/owner. Claims are reviewed by Katool's service department and may require supporting photos or video of the defect.

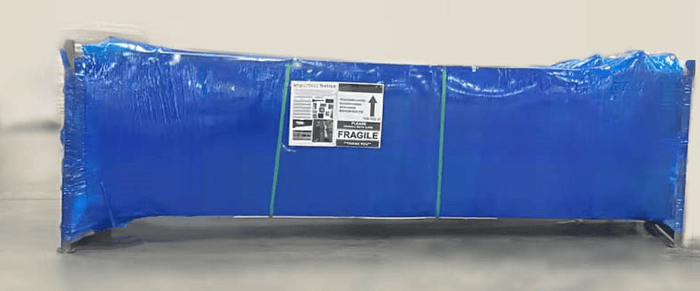

Base plate design means simpler delivery and unloading — no overhead beam to wrestle with. The lift arrives securely wrapped and palletized for safe freight delivery.
