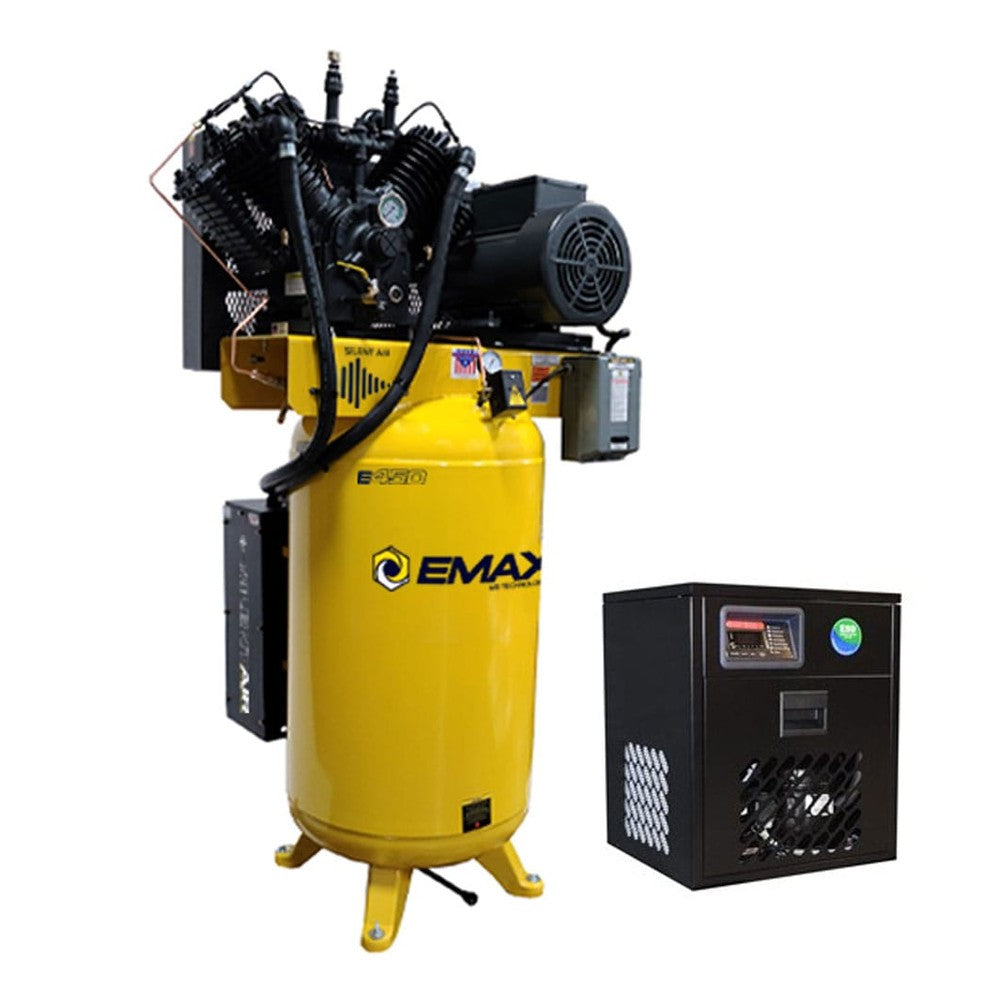

EMAX Industrial Plus 10 HP 80-Gallon Two-Stage Silent Air Compressor with 58 CFM Refrigerated Dryer, 460V 3-Phase, ESP10V080V3PK-460

The EMAX ESP10V080V3PK-460 is a 10 HP, two-stage, 80-gallon vertical air compressor packaged with a 58 CFM refrigerated air dryer as a complete air system. The pressure-lubricated pump delivers 38 CFM — 34 CFM at the 175 PSI maximum — on 460V three-phase power, and the unit carries ETL, ASME, and CRN certifications with an estimated pump life of 70,000 hours.

Highlights

100% Cast Iron Pump

All major components of the pump are cast iron — crankcase, cylinder heads, cylinders, connecting rods, crankshaft, and the high-pressure piston...

What's in the box

• EMAX Industrial Plus 10 HP two-stage 80-gallon vertical air compressor with pressure-lubricated pump (APP4V1043TP)
• 58 CFM refrigerated air dryer with built-in 0.001-micron prefilter and 0.005-micron coalescing prefilter
• Dual-timer electric auto drain with air muffler
• Automatic head unloaders with continuous-run pilot and ball valve
• Magnetic starter
• Dual-bolt belt tensioner
• Pump mounting riser
• Isolator pads

Warranty

The compressor carries a 1-year standard warranty covering defects in material, workmanship, and parts from the date of delivery, including 1 year of warranty labor from an authorized technician. Registering at emaxwarranty.com and following the extended warranty plan — using EMAX Smart Oil and the set maintenance schedule — extends coverage to a full 5 years...

FAQ

How loud is it?

The patented Silent Air suppression system runs up to 50% quieter than comparable compressors, with noise levels at or below conversational volume. Each 10 dBA reduction reads as half as loud to the human ear.

What electrical service does it need?

460V three-phase service with a 25 A recommended breaker. Full-load amperage is 14.1 A with the 1.15 service factor; peak starting draw is 85.4 A. The included magnetic starter and head unloaders protect the motor from repeated starts under load.

Can it run continuously?

Yes. The unit is rated for a 60% duty cycle, and for high-duty-cycle applications above 40%, opening the ball valve on the pilot valve allows continuous-run operation while the head unloaders keep the pump cool.

What maintenance does the warranty require?

Change the break-in oil within the first 70 hours, then change oil every 6 months or 1,000 hours using EMAX-approved Smart Oil, and maintain proper oil level. The spin-on automotive-style filter makes oil changes straightforward, and the EFKIT008AWBS service kit covers the required maintenance components.
