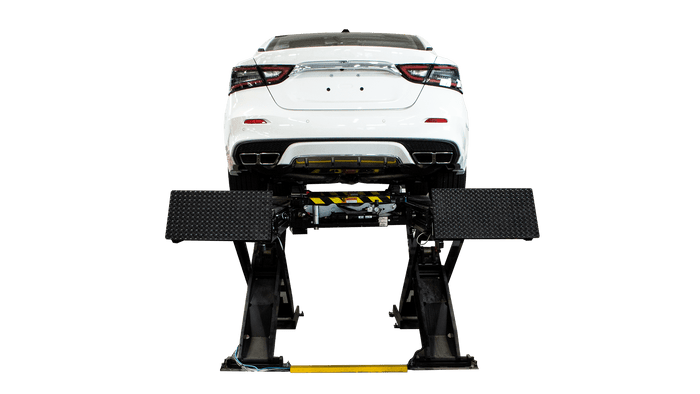

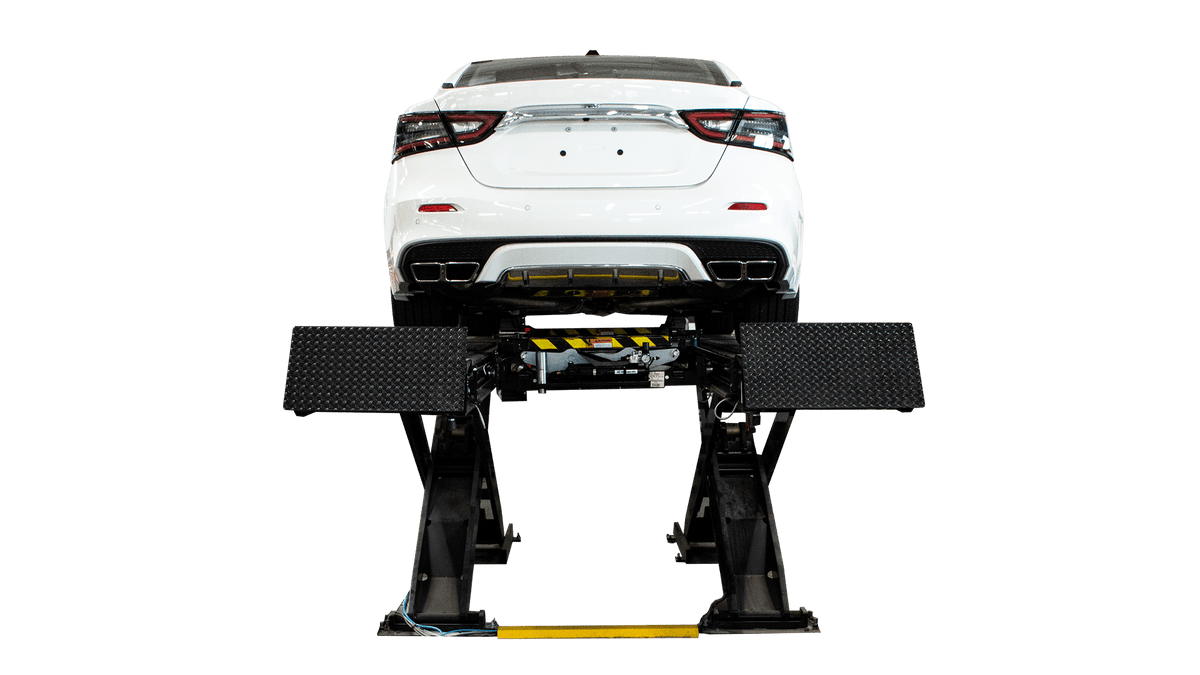

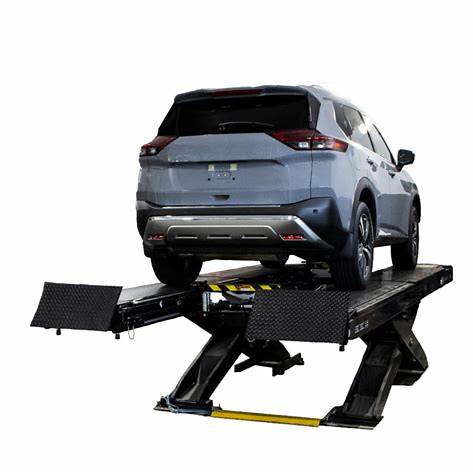

Challenger SX14 14,000 lb Scissor Alignment Lift with LED Lighting

• 14,000 lb lifting capacity with 7,000 lb per platform rating
• 77" rise height for comfortable underbody access
• Integrated LED lighting illuminates underside automatically
• ALI/ETL certified for professional shop safety compliance
• Includes rolling jacks, turn plates, and airline kit

Integrated LED Lighting System

The automatic LED lighting feature illuminates the underside of the vehicle when the lift rises, providing excellent visibility for inspections and alignment work. The system automatically turns off when the lift descends below 18", conserving energy and indicating lowered position.

Pneumatic Single-Point Lock Release

The air-actuated single-point lock release allows technicians to work at an ergonomic height, increasing productivity and minimizing fatigue during busy service days. This streamlined design eliminates the need to manually release multiple lock points.

Maintenance-Reduced Rear Slip Plates

Engineered with oversized, encapsulated bearings, the rear slip plates are protected against environmental debris and contamination. This design significantly reduces maintenance requirements while ensuring smooth, precise movement during alignment procedures.

Photo Cell Runway Synchronization

Built-in photo cell technology ensures both runways rise and lower in perfect synchronization, maintaining level vehicle positioning throughout the lift cycle. This safety feature prevents uneven lifting that could damage vehicles or compromise alignment accuracy.

Extra-Wide Runways for Versatility

With 25.5" wide runways and 40" between platforms, the SX14 accommodates both single and dual rear wheel vehicles. This versatility makes it ideal for service centers handling everything from passenger cars to heavy-duty trucks and commercial vehicles.

Twin Hydraulic Cylinder Operation

The dual hydraulic cylinder system provides smooth, stable operation with a 75-second rise time. Approach ramps are equipped with end rollers to minimize noise during vehicle loading and reduce potential floor damage in your shop.

• Professional Wheel Alignment: Adjustable turn plates accommodate wheelbases from 70.75" to 176", making the SX14 ideal for dedicated alignment bays handling diverse vehicle types from compact cars to full-size trucks.
• Full-Service Automotive Repair: The 14,000 lb capacity and 77" rise height provide ample room for comprehensive undercar service including suspension work, brake repairs, exhaust system service, and drivetrain maintenance.
• Dealership Service Departments: ALI certification and professional-grade construction meet the demanding requirements of franchise dealerships, with the flush-mount option providing a clean, showroom-quality appearance.
• Fleet Maintenance Facilities: Extra-wide runways handle single and dual rear wheel vehicles, making the SX14 well-suited for mixed fleets including delivery vans, service trucks, and commercial vehicles.
• Tire and Quick-Service Shops: The fast 75-second rise time and easy drive-on design maximize throughput for high-volume tire installations, rotations, and alignment services.

Electrical Requirements

Power: 208-240V, 60Hz, single-phase, 30A dedicated circuit. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.

Concrete Foundation

Anchoring: Minimum 4" thick reinforced concrete, rated at 3,500+ PSI, fully cured for at least 28 days. Floor must be free from cracks, seams, and expansion joints in the anchor area. The flush-mount model requires pit excavation per installation drawings.

Space Requirements

Minimum Bay Width: 12' (14' recommended). Recommended Bay Length: 28'. Maintain minimum 3' clearance to nearest obstruction on all sides for safe operation and technician access.

Pneumatic Requirements

Air Supply: 90-120 PSI at 20 CFM, filtered and lubricated. A dedicated air line with proper filtration and lubrication is required for pneumatic lock release and dual rolling jack operation.

Professional Installation

Professional installation by a qualified lift technician is strongly recommended. Proper installation ensures safe operation, validates warranty coverage, and meets ALI certification requirements. Contact Garage Supply Guys for installation service options in your area.

• Challenger SX14 scissor alignment lift
• Two (2) rolling jacks for wheel-free service
• Adjustable turn plates for alignment
• Airline kit for dual jack operation
• Rear slip plates with encapsulated bearings
• Integrated LED lighting system
• Photo cell synchronization system
• Approach ramps with end rollers
• Power unit with 3 HP motor
• Anchor hardware
• Installation and operation manual

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days; delivery typically 1-2 weeks after shipment. International: Contact sales for international shipping quotes and lead times.

Delivery Requirements

Unloading: Forklift or loading dock required at delivery location. Delivery Type: Curbside delivery is standard; liftgate service available for additional charge where accessible. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damaged packaging.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or defective items should be reported within 48 hours of delivery.

Challenger Lifts Warranty Coverage

Challenger Lifts backs the SX14 with comprehensive warranty protection for professional automotive service environments.

• 5 Years: Structural components including runways, frames, and scissor assemblies
• 2 Years: Hydraulic cylinders, power unit, and mechanical components
• 1 Year: Electrical components, controls, and accessories

Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance schedules. Commercial use in professional automotive service environments. See warranty document for complete terms, conditions, and exclusions.

What is the lifting capacity of the Challenger SX14?

The Challenger SX14 has a total lifting capacity of 14,000 lb, with a maximum load of 7,000 lb per platform. This capacity is ALI/ETL certified and suitable for most passenger vehicles, light trucks, and commercial vehicles within the weight rating.

What is the difference between the SX14, SX14-ER, and SX14-FM models?

The SX14 is the standard surface-mount model with 62.75" approach ramps. The SX14-ER (Extended Ramps) features longer 80.75" ramps for easier loading of low-clearance vehicles like sports cars. The SX14-FM (Flush Mount) installs into a pit for a floor-level drive-on surface, with a 66.5" rise height. All three models share the same 14,000 lb capacity.

What are the electrical requirements for the SX14?

The SX14 requires 208-240V, 60Hz, single-phase power on a dedicated 30A circuit. The 3 HP motor draws 23 FLA during operation. A licensed electrician should install and verify the electrical supply meets local codes and manufacturer specifications.

What are the concrete requirements for installation?

The lift requires a minimum 4" thick reinforced concrete floor rated at 3,500+ PSI that has been fully cured for at least 28 days. The floor must be free from cracks, seams, and expansion joints in the anchor area. The flush-mount model requires additional pit excavation per the installation drawings.

What is included with the Challenger SX14?

The SX14 includes the complete scissor lift, two rolling jacks, adjustable turn plates, an airline kit for dual jack operation, rear slip plates with encapsulated bearings, integrated LED lighting, photo cell synchronization system, approach ramps with end rollers, power unit, anchor hardware, and installation manual.

What is the warranty on the Challenger SX14?

Challenger provides a 5-year warranty on structural components, 2-year warranty on hydraulic and mechanical components, and 1-year warranty on electrical components and accessories. Warranty requires proper installation and use within rated capacity. See the warranty document for complete terms.

How much space do I need for the SX14?

Challenger recommends a minimum bay size of 14' x 28'. The lift itself measures 91.25" wide and 265" long (283" for the extended ramp model). Maintain at least 3' clearance to the nearest obstruction on all sides for safe operation and technician access.

Does the SX14 require compressed air?

Yes, the SX14 requires filtered and lubricated compressed air at 90-120 PSI with 20 CFM capacity. The air supply operates the pneumatic single-point lock release and the dual rolling jack system included with the lift.

What is the wheel alignment range on the SX14?

The adjustable turn plates accommodate wheelbases from 70.75" minimum to 176" maximum for wheel alignment. The lift can support vehicles with wheelbases up to 183" for general service work without using the alignment features.

How long does it take for the lift to reach full height?

The SX14 rises to full height in approximately 75 seconds. The twin hydraulic cylinder system provides smooth, stable operation throughout the lift cycle.

Is the SX14 ALI certified?

Yes, all SX14 models are ALI/ETL certified, meeting the safety and performance standards established by the Automotive Lift Institute. This certification is often required for professional shop insurance and franchise dealership compliance.

How is the SX14 shipped and what do I need for delivery?

The SX14 ships via freight truck with free delivery to commercial addresses in the 48 contiguous US states. You will need a forklift or loading dock to unload the lift. Curbside delivery is standard. Inspect all packages before signing and note any damage on the delivery receipt.
