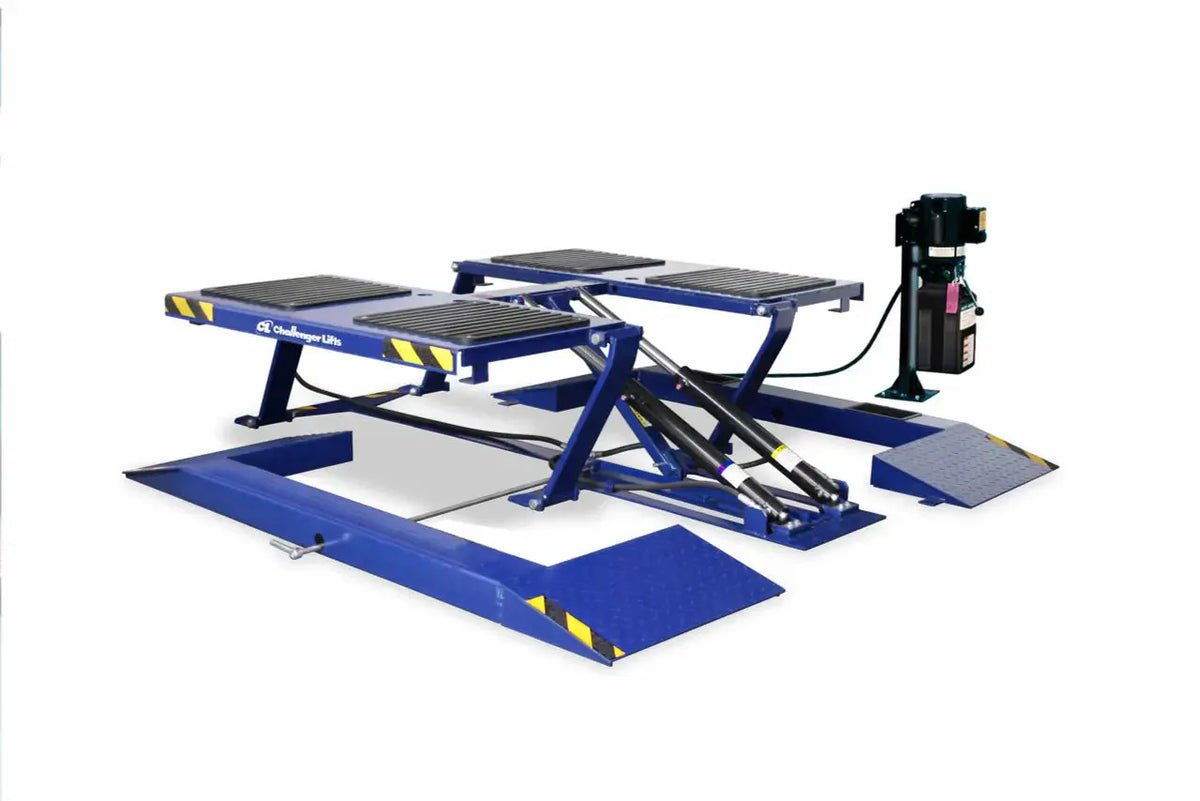

Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise

• 10,000 lb capacity handles trucks, SUVs, and full-size vehicles
• 22" raised height with three locking positions for versatile service
• ALI certified for safety and performance standards
• Surface mount or flush mount installation options
• Standard 115V operation - no special electrical required

10,000 lb Lifting Capacity

The SRM10 delivers serious lifting power with its 10,000 lb capacity, allowing you to service full-size trucks, SUVs, vans, and heavy-duty vehicles with confidence. The hydraulic system operates at 1,720 PSI for smooth, reliable lifting every time.

22" Raised Height with Three Locking Positions

Achieve the perfect working height with three mechanical locking positions at 13.75", 18.25", and 21.25". The generous 22" maximum rise provides excellent access to brakes, tires, exhaust systems, and undercarriage components without requiring a pit or full-height lift.

Two-Position Spotting Blocks

Standard two-position spotting blocks with low (4.75") and high (6.75") adapter positions allow you to reach manufacturer-recommended lift points on a wider range of vehicles. Properly position vehicles with varying frame heights and undercarriage clearances.

Surface Mount or Flush Mount Installation

Install the SRM10 as a surface mount for quick setup or flush mount for a seamless, drive-over installation that saves space and creates a clean shop floor. Flush mount configuration provides 17.75" rise height with lock positions at 9.5", 14.125", and 17".

Durable Powder Coat Finish

The professional black powder coat finish delivers long-lasting protection against chips, scratches, and corrosion. Built to withstand the demanding conditions of professional service environments while maintaining a clean, professional appearance.

ALI Certified Safety and Quality

The SRM10 is ALI certified, meeting the rigorous safety and performance standards established by the Automotive Lift Institute. This certification ensures the lift has been independently tested and verified for safe operation at its rated capacity.

Electrical Requirements

Power: 115V single-phase, 60Hz with a dedicated 20-amp circuit breaker or time delay fuse (standard). 230V optional configuration available. A licensed electrician must install and verify the electrical supply meets all local codes.

Concrete Foundation

Anchoring: Minimum 4" thick steel-reinforced concrete, 3,500 PSI minimum strength, cured for 28 days. Floor must be level within 3/8" over the installation area. No anchors may be installed within 8" of any crack, edge, or expansion joint. Do not install on asphalt or similar unstable surfaces.

Space Requirements

Minimum Bay Size: 10' x 24'. Recommended Bay Size: 12' x 24'. Ensure adequate vertical clearance for the tallest vehicle you intend to service at full rise. The lift moves vehicles rearward 13.25" when raised - account for this in your bay layout.

Professional Installation

Professional installation by qualified technicians is recommended to ensure proper setup, anchoring, and safe operation. Indoor installation only - outdoor installation is prohibited. Operating ambient temperature range is 41-104°F.

• Complete SRM10 lift assembly with base, platforms, and scissor mechanism
• Drive-on ramps (surface mount configuration)
• 1 HP power unit with hydraulic reservoir
• Power unit stand
• 22' hydraulic hose with fittings
• Lock release mechanism with handle
• Two-position spotting blocks (4 sets)
• Rubber lift pads
• Anchor bolts and mounting hardware
• Safety decals and warning placards
• Installation, operation, and maintenance manual
• Literature pack with ALI safety materials

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days; transit time varies by location. International: Contact sales for international shipping quotes.

Delivery Requirements

Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for damage before signing the bill of lading. Note any damage, shortages, or discrepancies on the delivery receipt and contact us immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.

Challenger Lifts Warranty Coverage

Challenger Lifts backs the SRM10 with comprehensive warranty protection for professional and commercial use.

• Structural Components: Covered against defects in materials and workmanship
• Hydraulic Cylinders: Covered against defects in materials and workmanship
• Power Unit: Covered against defects in materials and workmanship
• Mechanical Components: Covered against defects in materials and workmanship

Requirements: Lift must be properly installed according to manufacturer specifications and maintained per the operation manual. Warranty registration must be completed online. Normal wear items and damage from misuse, abuse, or improper installation are not covered. See warranty document for complete terms and conditions.

What is the lifting capacity of the Challenger SRM10?

The Challenger SRM10 has a maximum lifting capacity of 10,000 lbs, making it suitable for full-size trucks, SUVs, vans, and heavy-duty vehicles. The individual axle weight should not exceed one-half of the lift capacity (5,000 lbs per axle).

What are the space requirements for the SRM10?

The SRM10 requires a minimum service bay of 10' x 24', though 12' x 24' is recommended for comfortable working space. The lift itself measures 87.5" wide (including handle) by 92.875" long for surface mount installation. Remember that the lift moves vehicles rearward 13.25" when raised.

What electrical power does the SRM10 require?

The standard SRM10 operates on 115V single-phase, 60Hz power with a dedicated 20-amp circuit breaker or time delay fuse. A 230V configuration is available as an option. Standard household 115V power makes this lift accessible for home garage installations.

Can the SRM10 be flush mounted?

Yes, the SRM10 can be installed as either a surface mount or flush mount configuration. Flush mounting requires a prepared pit (specifications in the installation manual) and provides a drive-over installation with 17.75" rise height and lock positions at 9.5", 14.125", and 17".

What is the warranty on the Challenger SRM10?

The SRM10 is covered by Challenger Lifts' comprehensive warranty protecting structural components, hydraulic cylinders, power unit, and mechanical parts against defects in materials and workmanship. Proper installation and maintenance per the manual are required. See the warranty document for complete terms.

What is included with the SRM10?

The SRM10 comes complete with the lift assembly, drive-on ramps (surface mount), power unit with stand, hydraulic hose and fittings, lock release mechanism, two-position spotting blocks, rubber lift pads, anchor bolts, hardware, safety decals, and complete documentation. Hydraulic fluid is not included - 6 quarts of 10W anti-foam hydraulic oil or Dexron III ATF is required.

How is the SRM10 shipped and delivered?

The SRM10 ships via freight carrier with free shipping to commercial addresses in the 48 contiguous United States. A forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect all packages before signing the bill of lading and note any damage on the delivery receipt.

What are the concrete requirements for installation?

The SRM10 requires a minimum 4" thick steel-reinforced concrete floor with 3,500 PSI minimum strength, cured for at least 28 days. The floor must be level within 3/8" over the installation area. No anchors can be placed within 8" of cracks, edges, or expansion joints. Do not install on asphalt.

What is the difference between the lock positions?

The SRM10 provides three mechanical locking positions for different working heights. Surface mount: 13.75", 18.25", and 21.25". Flush mount: 9.5", 14.125", and 17". Multiple positions allow you to select the optimal height for the specific service being performed.

How do the two-position spotting blocks work?

The standard two-position spotting blocks can be set at either 4.75" (low) or 6.75" (high) adapter positions. This allows you to properly reach manufacturer-recommended lift points on vehicles with varying frame heights and undercarriage clearances.

Can the SRM10 be installed outdoors?

No, the SRM10 is rated for indoor use only. Outdoor installation is prohibited. The lift has an operating ambient temperature range of 41-104°F (5-40°C). Installing outdoors would void the warranty and create safety hazards.

What maintenance does the SRM10 require?

Daily: Inspect spacer pads and lock release mechanism. Weekly: Inspect all parts for damage. Monthly: Lubricate lock bar pivot and hinge joints, inspect concrete around anchors. Semi-annually: Check and refill hydraulic fluid, inspect hoses and seals. Always keep anchor bolts tight and the lift clean. Refer to the manual for complete maintenance procedures.
