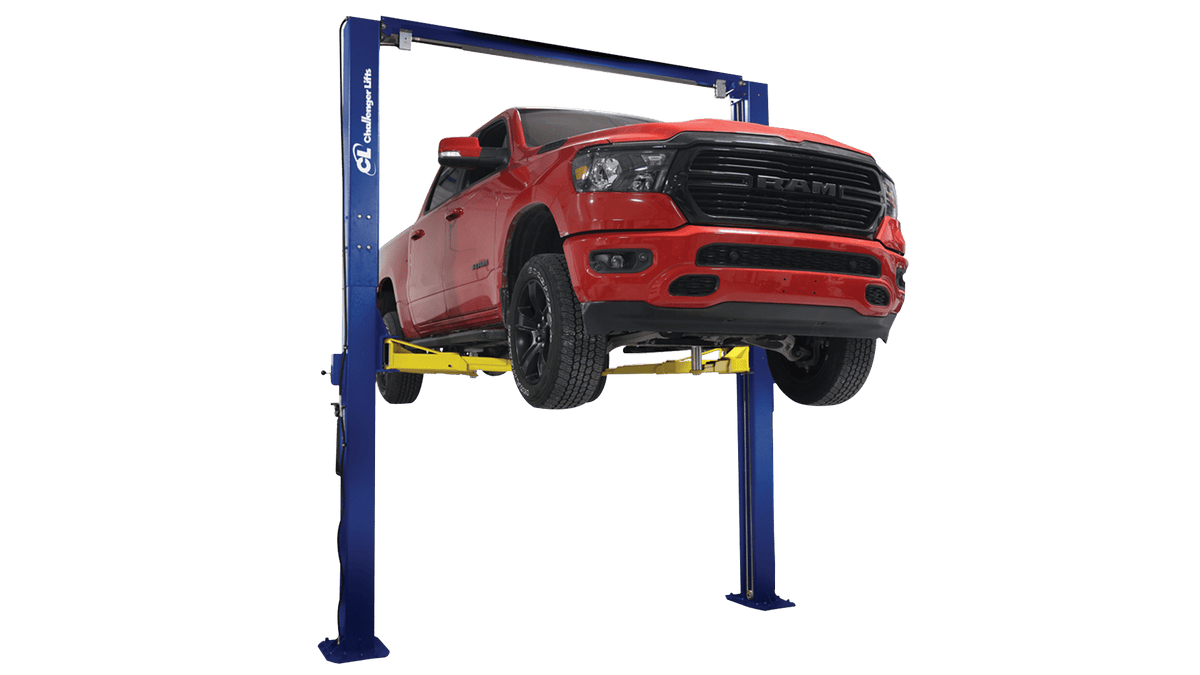

Challenger LE12-3S Two Post Automotive Lift 12000 lb Capacity

Challenger LE12-3S 12,000 lb Two-Post Lift for Professional Automotive Service

The Challenger LE12-3S is an economical 12,000 lb capacity two-post lift engineered for servicing trucks, SUVs, and heavy-duty vehicles. Featuring heavy-duty 3-stage front and 3-stage rear arms for symmetric lifting capability, this lift handles everything from compact sedans to full-size trucks within its rated capacity. The adjustable column height with optional 2-foot extensions accommodates higher-profile vehicles while providing ample servicing headroom. Powered by a 2HP motor (208v-230v) with a 61-second rise time, the LE12-3S is ALI/ETL certified and backed by Challenger's industry-leading warranty. Available in Red or Blue powder coat finish.

12,000 lb lifting capacity - handles heavy-duty trucks and fleet vehicles3-stage front and rear arms for versatile symmetric lifting77.75" rise height with 103" drive-thru clearanceALI/ETL certified for safety and performance standardsSingle point mechanical lock release for efficient operation

Lifting Capacity	12,000 lbs
Lifting Configuration	Symmetric
Arms	3-stage front / 3-stage rear
ALI/ETL Certified	Yes
Rise Height	77.75"
Overall Height	166" / 175" (with extension)
Overall Width	139.75"
Drive-Thru Clearance	103"
Inside Columns	115"
Floor to Overhead Switch	159.5" / 168.5" (with extension)
Minimum Arm Reach	27.5"
Maximum Arm Reach	54.5"
Screw Pad Height	5.25" - 6.75"
Ceiling Height Required	167" / 176" (with extension)
2' Height Extension Available	Yes
Motor	2HP
Voltage	208v - 230v
Speed of Rise	61 seconds
Colors Available	Red, Blue
Model Number	LE12-3S

Challenger LE12-3S Features

Heavy-Duty 3-Stage Arm System

The LE12-3S features 3-stage front and 3-stage rear arms that enable a wide range of symmetric lifting configurations. This versatile design accommodates vehicles from compact passenger sedans to heavy-duty trucks, all within the 12,000 lb rated capacity. Arm reach spans from 27.5" minimum to 54.5" maximum, providing flexibility for various vehicle wheelbases.

Single Point Mechanical Lock Release

The single point mechanical lock release system allows technicians to disengage both columns simultaneously from a single location. This design streamlines workflow, reduces service time, and improves shop efficiency by eliminating the need to release each column separately.

Adjustable Column Height with Extension Options

Standard column configuration offers 166" overall height with a 77.75" rise. For higher-profile vehicles, optional 2-foot column extensions increase overall height to 175", ensuring adequate headroom for lifted trucks, vans, and commercial vehicles while maintaining full working clearance underneath.

Padded Overhead Shut-Off System

The integrated padded overhead shut-off system automatically stops lift travel when contact is detected, preventing vehicle damage from roof, antenna, or rack contact. This safety feature protects customer vehicles and gives technicians confidence when lifting unfamiliar vehicles.

Heavy-Duty Polyurethane Screw Pads

Factory-equipped polyurethane screw pads with 5.25" to 6.75" height adjustment accommodate a wide range of manufacturer-recommended lifting points. The durable polyurethane construction protects vehicle frames and pinch welds while providing secure, non-slip contact during service.

Durable Construction and Corrosion Resistance

Built with a professional-grade powder coat finish for long-lasting durability and appearance. Plated arm restraints and arm pins inhibit rust and extend service life. Standard dual integrated rubber door guards help protect vehicle door panels from inadvertent contact during service operations.

Challenger LE12-3S Installation Requirements

Electrical Requirements

Power: 2HP motor requiring 208v-230v single-phase power supply. A licensed electrician must install and verify the electrical supply meets manufacturer specifications and local codes.

Concrete Foundation

Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. Concrete must be fully cured and free of cracks, expansion joints, or structural defects in the anchor area. Refer to installation manual for specific anchor bolt specifications and patterns.

Space Requirements

Ceiling Height: Minimum 167" (or 176" with optional extensions). Overall Width: 139.75". Drive-Thru Clearance: 103". Allow adequate clearance around the lift for vehicle doors, technician movement, and equipment access.

Professional Installation

Professional installation by a qualified lift technician is strongly recommended. Proper installation ensures safe operation, validates warranty coverage, and confirms compliance with OSHA and ANSI/ALI standards. Contact Garage Supply Guys for installation service referrals in your area.

• Complete two-post lift assembly with columns, carriages, and crossbeam
• 3-stage front arms (2)
• 3-stage rear arms (2)
• Heavy-duty polyurethane screw pads
• Stack adapters (standard)
• 2HP hydraulic power unit
• Dual integrated rubber door guards
• Padded overhead shut-off system
• Anchor bolts and hardware
• Installation and operation manual

Challenger LE12-3S Shipping and Delivery

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days; transit time varies by location. International: Contact sales for international shipping quotes.

Delivery Requirements

Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt and photograph damaged packaging.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.

Challenger LE12-3S Warranty

Challenger Lifts Limited Warranty

Challenger Lifts stands behind their American-made products with comprehensive warranty coverage.

• 5 Years: Structural components including columns, carriages, and crossbeam
• 2 Years: Hydraulic cylinders and power unit components
• 1 Year: All other components including cables, sheaves, and electrical parts

Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance schedules. Commercial use covered. See warranty document for complete terms, conditions, and exclusions.

What is the lifting capacity of the Challenger LE12-3S?

The Challenger LE12-3S has a rated lifting capacity of 12,000 lbs. This capacity is ALI/ETL certified, meaning it has been independently tested and verified to safely lift vehicles up to this weight when properly installed and operated according to manufacturer guidelines.

What ceiling height do I need for the LE12-3S?

The standard configuration requires a minimum ceiling height of 167". If you opt for the 2-foot column height extensions, you will need a minimum ceiling height of 176". The lift has an overall height of 166" standard or 175" with extensions, but additional clearance is required for overhead obstructions and proper operation.

What electrical power is required for installation?

The LE12-3S requires 208v-230v single-phase electrical power for the 2HP motor. A licensed electrician should install a dedicated circuit with appropriate amperage and disconnect switch per local codes. Refer to the installation manual for complete electrical specifications.

How long does it take to raise a vehicle?

The Challenger LE12-3S has a speed of rise of approximately 61 seconds to reach the full 77.75" lift height. Descent time may vary based on load and hydraulic system condition.

What does the warranty cover?

Challenger provides a limited warranty covering structural components for 5 years, hydraulic cylinders and power unit for 2 years, and all other components for 1 year. Warranty requires proper installation and adherence to maintenance schedules. See the warranty document for complete terms and exclusions.

What is included with the lift purchase?

The LE12-3S includes the complete lift assembly with columns, carriages, crossbeam, 3-stage front and rear arms, polyurethane screw pads, stack adapters, 2HP power unit, door guards, overhead shut-off system, anchor hardware, and installation manual. Electrical wiring, concrete work, and installation labor are not included.

How is the lift shipped and delivered?

The LE12-3S ships via freight carrier with free shipping to commercial addresses in the 48 contiguous US states. Curbside delivery is standard, and a forklift or loading dock is required for unloading. Lead time is typically 3-5 business days plus transit time to your location.

What are the optional 2-foot column extensions?

The optional column extensions add 24" of height to the standard columns, increasing overall lift height from 166" to 175". This provides additional headroom for servicing taller vehicles such as lifted trucks, full-size vans, and high-roof commercial vehicles. Extensions require a minimum 176" ceiling height.

What is the difference between symmetric and asymmetric lifting?

The LE12-3S is configured for symmetric lifting, where the vehicle is centered between the columns with equal weight distribution. This configuration is ideal for trucks, vans, and SUVs. Asymmetric lifts position the vehicle forward to allow door opening, which is preferred for passenger cars. The LE12-3S 3-stage arms provide flexibility for various vehicle sizes within its symmetric configuration.

What maintenance does the LE12-3S require?

Regular maintenance includes daily visual inspection of cables, chains, and hydraulic components; periodic lubrication of moving parts; checking hydraulic fluid levels; and annual professional inspection. Follow the maintenance schedule in the operation manual to ensure safe operation and maintain warranty coverage.

What concrete specifications are required for installation?

The LE12-3S requires a minimum 4" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be fully cured (typically 28 days minimum) and free of cracks, deterioration, or expansion joints in the anchor area. Consult the installation manual for anchor bolt specifications and patterns.

Is professional installation required?

While not strictly required, professional installation is strongly recommended. Proper installation by a qualified lift technician ensures safe operation, validates warranty coverage, and confirms compliance with OSHA, ANSI, and ALI safety standards. Contact Garage Supply Guys for installation service referrals in your area.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
