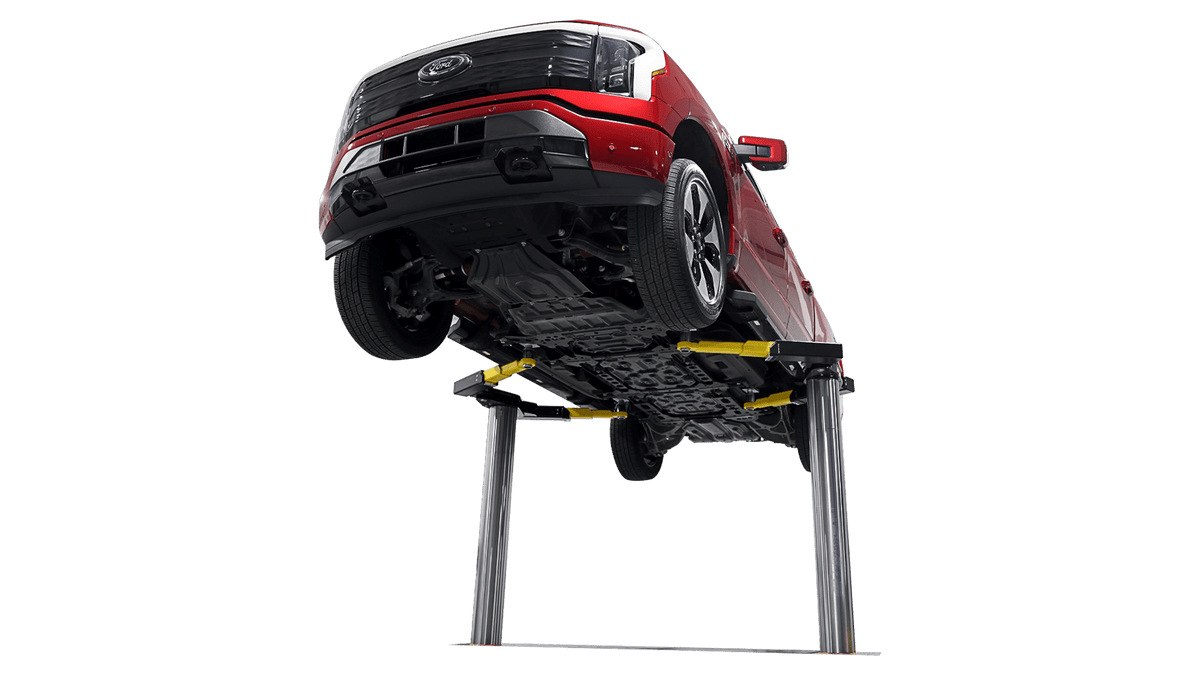

Challenger EW12CK Completion Kit for EW12 Wide Inground Lift/EH12 Hybrid Inground

Challenger EW12CK Completion Kit for EW12 Wide Inground Lift

Your EW12 superstructure is in the ground and the concrete's done. This is the kit that finishes the job. The Challenger EW12CK completion kit delivers the standard hydraulic power unit and column-mounted controls that bring your installed EW12 framework to full operational status. It's the base completion package for the EW12 series, with no add-on options bundled in, giving you the straightforward path from pre-kit to lifting cars.

The system this kit completes is Challenger's extra-wide inground platform. 88 inches of drive-through clearance handles the vehicles that don't fit on standard inground lifts: wide-body trucks, full-size SUVs, and EV platforms that need battery lowering access. True 3-stage front and rear arms with double-telescoping screw pads cover a pad height range of 4 to 6.125 inches, giving you precise lift point positioning across the full spectrum of vehicle frames without swapping adapters between jobs.

Every component in the EW12CK is factory-matched to the EW12 platform. Hydraulic lines, control wiring, and fittings are all spec'd for this system specifically. No adapting generic parts, no compatibility guesswork. If you want bench-mounted controls or faster QuickCycle hydraulics, those are available as separate completion kit configurations (BMC, QC, BMC-QC). Not sure which version fits your build? Call (855) 498-2147 and we'll sort it out based on your bay layout and workflow.

Call to confirm included accessories.

This is the base completion kit for the EW12 inground lift with standard column-mounted controls and standard hydraulic operation. Contact our team at (855) 498-2147 to verify the exact components included and confirm compatibility with your current installation stage.

Electrical Requirements

The completed EW12 runs on 208-230V, 60 Hz, single-phase power with a dedicated circuit for the 2 HP motor. All wiring needs to be handled by a licensed electrician who can verify the supply meets National Electrical Code standards before the lift goes into service.

Compressed Air Supply

You'll need 90 to 120 psi of shop air for the automatic safety locks. These locks engage at designated lift heights and require consistent pressure in that range to function. Make sure your compressor can sustain that output before commissioning the lift.

Column-Mounted Controls

This kit uses standard column-mounted controls, keeping the operator panel integrated directly into the lift infrastructure. It's the most straightforward control setup with no additional bench or workstation required. If your bay layout calls for a remote control station, the BMC versions of this completion kit place the panel at a separate workstation bench instead.

Professional Installation Required

All hydraulic, electrical, and air connections must be made by qualified technicians following Challenger's installation manual. This kit completes an existing EW12 installation. Your superstructure and pre-kit should already be in place and concrete work finished before you start connecting above-ground components.

Superstructure and pre-kit are in the ground. This kit adds the standard power unit and column-mounted controls to finish the build and get your bay lifting vehicles.

The EW12's 88-inch drive-through clearance and arm geometry give you unobstructed battery lowering access on EV platforms without modifications or external support equipment.

Full-size trucks, heavy SUVs, and specialty vehicles that crowd standard-width inground lifts fit through the EW12's extra-wide opening without repositioning between services.

The base EW12CK gives you the full 12,000 lb EW12 platform without the added cost of QuickCycle or bench-mounted control upgrades. Same lift, same capacity, same ALI/ETL certification.

Freight Delivery: Challenger Lifts ship via flatbed freight truck. You'll need a forklift, Bobcat, or similar equipment for unloading. Lift gate service isn't available due to component weight. Deliveries arrive on a 48-foot semi, so make sure your site has adequate truck access.

Scheduling: You're responsible for coordinating a delivery appointment with the freight carrier. If unloading equipment isn't available at your location, the shipment can be routed to a local freight terminal for pickup.

Lead Times: Shipments are subject to factory lead times and warehouse availability. Our team coordinates the freight shipment and helps manage scheduling details. Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.

Challenger Lifts Limited Warranty: Challenger covers the repair or replacement of defective parts for the original owner, including reasonable labor and transportation costs, provided the lift was installed, used, and maintained according to official specifications.

Eligibility: Valid for the original purchaser only. Not transferable. Applies to lifts installed in the United States and Canada.

Exclusions: Coverage does not extend to consumable items, normal wear and tear, damage from misuse or improper installation, or repairs performed by unauthorized service providers. Use of unapproved parts or accessories voids coverage.

Warranty registration may be required after purchase. Refer to included documentation for details.

What is the Challenger EW12CK completion kit?

It's the base above-ground component package that finishes an EW12 wide inground lift installation. This kit includes the standard hydraulic power unit and column-mounted controls, all factory-matched to the EW12 platform. Your superstructure and pre-kit need to be installed before this kit goes in. The completed system delivers 12,000 lb of lifting capacity with 88 inches of drive-through clearance.

How does the EW12CK compare to the other EW12 completion kits?

The EW12CK is the base configuration with standard column-mounted controls and standard hydraulic operation at a 63-second rise time. The QC version adds QuickCycle for faster lift cycles. The BMC version swaps to bench-mounted controls. The BMC-QC combines both upgrades. All four kits complete the same 12,000 lb EW12 platform with identical capacity and clearance specs.

What are column-mounted controls?

Column-mounted controls integrate the operator panel directly into the lift structure. You operate the lift from a panel on the lift column itself, keeping everything in one location without needing a separate workstation or bench. It's the standard control configuration and the most straightforward setup for shops that don't need a remote control station.

Do I need the superstructure and pre-kit before ordering this kit?

Yes. The completion kit is the final stage of an EW12 installation. Your inground superstructure and pre-kit must be installed and concrete work completed before this kit can be connected. If you're unsure what stage your build is at, call (855) 498-2147 and we'll help you figure out exactly what you still need.

What electrical service does the completed EW12 require?

The system runs on 208-230V, 60 Hz, single-phase power with a dedicated circuit for the 2 HP motor. A licensed electrician needs to handle the wiring and verify the supply meets code before the lift goes into service. You'll also need 90 to 120 psi compressed air for the automatic safety locks.

Is the EW12 ALI/ETL certified?

Yes. The completed EW12 holds both ALI and ETL certification, confirming third-party verification of the lift's 12,000 lb capacity, structural integrity, and mechanical safety features. These certifications are recognized by insurance carriers, facility managers, and franchise dealership compliance programs.

Can the EW12 service electric vehicles?

That's one of its primary design strengths. The 88-inch drive-through clearance and 3-stage arm geometry allow battery pack access and lowering without obstruction. Double-telescoping screw pads with a 4" to 6.125" height range provide precise lift point positioning on EV platforms for high-voltage battery and drivetrain service.

How is this kit shipped?

It ships via flatbed freight truck. You'll need a forklift or similar equipment for unloading since lift gate service isn't available. Deliveries arrive on a 48-foot semi, so confirm your site has adequate truck access. If you don't have unloading equipment on-site, the shipment can route to a local freight terminal for pickup.

What warranty covers this completion kit?

Challenger's limited warranty covers repair or replacement of defective parts for the original owner, including reasonable labor and transportation costs. The lift must be installed, used, and maintained per Challenger's specifications. Coverage excludes consumable items, normal wear, and damage from misuse or unauthorized repairs. Registration may be required after purchase.

Can I upgrade to QuickCycle or bench-mounted controls later?

The completion kit you choose determines your control type and hydraulic configuration from the start. If you think you might want faster cycle times or a bench-mounted control station, it's easier to order the right kit upfront than to retrofit later. Call (855) 498-2147 and our team will help you decide which configuration makes sense before you commit.
