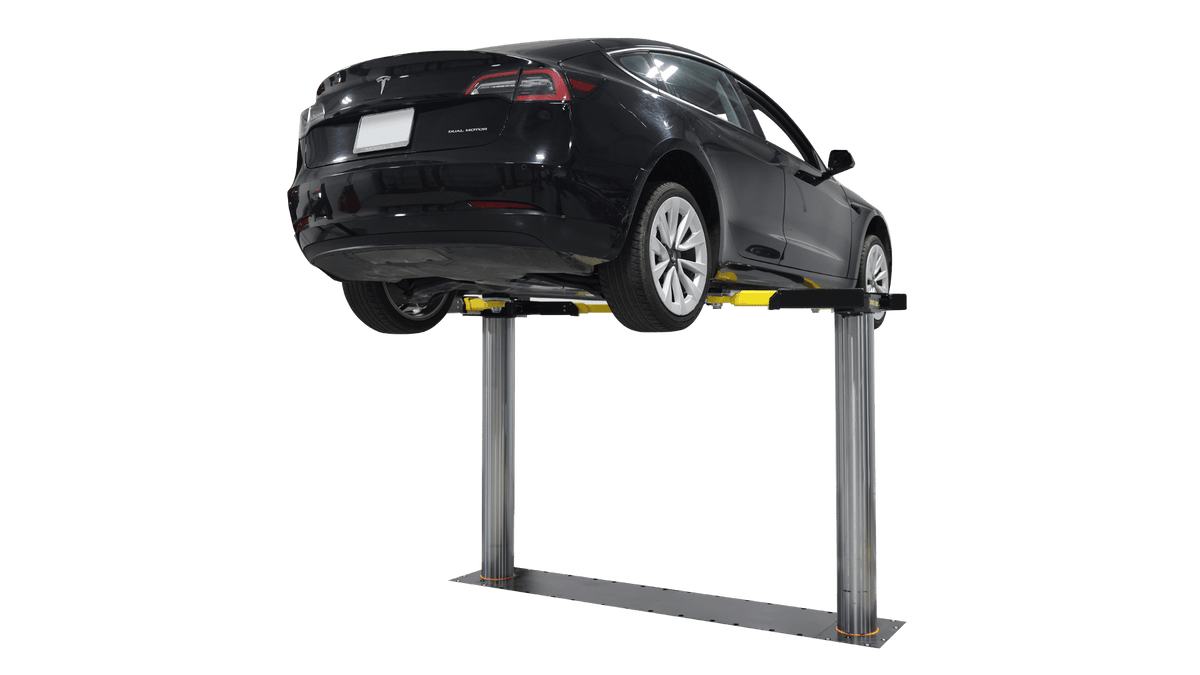

Challenger EW10 10000 lb Wide Inground Automotive Lift

• 10,000 lb lifting capacity with 2,500 lb per arm
• 88" extra-wide drive-through clearance for EV battery service
• 3-stage front and rear arms with 20" to 42" reach
• Single concrete pour installation - no bolster to drive over
• ALI/ETL certified with American manufacturing quality

Extra-Wide 88" Drive-Through Clearance

The EW10's 88" drive-through clearance revolutionizes EV service by allowing technicians to lower battery packs directly out of electric vehicles without obstruction. This wide opening accommodates the widest modern vehicles while preserving full conventional inground lift functionality for everyday service work.

3-Stage Front and Rear Arms

Precision vehicle spotting is achieved through 3-stage telescoping arms on both front and rear positions. With an arm reach from 20" to 42", technicians can accurately position lifting points on vehicles ranging from compact EVs to full-size luxury SUVs with manufacturer-specified pick-up points.

Double-Telescoping Screw Pads

Height-adjustable screw pads ranging from 4" to 6.125" provide precise contact with vehicle lift points. The double-telescoping design ensures secure positioning on unibody vehicles and EVs with specific reinforced lifting areas, protecting sensitive battery enclosures and underbody components.

No Bolster Design

The EW10 eliminates the traditional bolster that vehicles must drive over, creating a flush floor surface when the lift is lowered. This streamlined design improves shop traffic flow, reduces trip hazards, and makes vehicle positioning faster and easier for technicians.

Simplified Single-Pour Installation

Unlike traditional inground lifts requiring multiple concrete pours, the EW10 needs only one concrete pour during installation. This reduces installation time and complexity, getting your service bay operational faster while lowering overall installation costs.

Optional QuickCycle Upgrade

The available QuickCycle upgrade reduces rise time from 41 seconds to just 24 seconds, significantly increasing bay throughput. Powered by an upgraded 3HP motor, QuickCycle maximizes your service center's earning potential by getting vehicles in the air and back on the ground faster.

• Electric Vehicle Service Centers: Purpose-built for EV maintenance with wide clearance that allows battery pack removal and service without lift interference, making it essential for shops specializing in Tesla, Rivian, and other EV brands.
• Luxury and Exotic Car Dealerships: Accommodates wide-body luxury vehicles with precise manufacturer-specified lifting points, protecting high-value vehicles during routine maintenance and major repairs.
• Multi-Brand Automotive Dealerships: Versatile enough to service the full range of modern vehicles from compact cars to full-size SUVs, providing flexibility as your vehicle mix evolves with the market.
• High-Volume Quick Lube and Service Centers: The QuickCycle option and no-bolster design speed up vehicle positioning and service times, maximizing bay productivity during peak hours.
• Fleet Maintenance Facilities: Ideal for mixed fleets transitioning to electric vehicles, providing one lift solution capable of servicing both traditional and EV fleet vehicles efficiently.

Electrical Requirements

Power: 208V-230V, 60Hz, single-phase electrical supply. Standard model requires 2HP motor circuit; QuickCycle model requires 3HP motor circuit. A licensed electrician must install and verify the electrical supply meets all local codes.

Air Supply Requirements

Compressed Air: 90-120 psi shop air supply required for lift operation. Ensure your compressor can maintain adequate pressure during lift cycling. Air lines should be properly sized for the distance from compressor to lift location.

Concrete Foundation

Installation: The EW10 features simplified single-pour concrete installation, unlike traditional inground lifts requiring multiple pours. Concrete must meet manufacturer specifications for thickness, PSI rating, and reinforcement. Consult installation manual for complete foundation requirements.

Space Requirements

Overall Width: 118". Drive-Through Clearance: 88". Rise Height: 78". Ensure adequate ceiling clearance for vehicle height plus rise height. Allow sufficient space around the lift for technician access and safety.

Professional Installation

Professional installation by a qualified lift installer is required. Proper installation is essential for safe operation and warranty coverage. Contact Garage Supply Guys for installation service recommendations in your area.

• Complete EW10 inground lift assembly
• 3-stage front arms (2)
• 3-stage rear arms (2)
• Double-telescoping screw pads
• Hydraulic power unit with motor
• Control station
• Installation hardware
• Owner's manual and documentation

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current availability and lead times. International: Contact sales for international shipping quotes.

Delivery Requirements

Unloading: Forklift or loading dock required for unloading. Lift truck with adequate capacity must be available at delivery location. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.

Challenger Lifts Warranty

Challenger Lifts backs the EW10 with comprehensive warranty coverage reflecting their commitment to American manufacturing quality.

• Structural Components: Coverage for main structural elements against defects in materials and workmanship
• Hydraulic Components: Coverage for cylinders, hoses, and hydraulic system components
• Electrical Components: Coverage for power unit, controls, and electrical systems

Requirements: Professional installation required for warranty validity. Regular maintenance per manufacturer guidelines must be performed and documented. See complete warranty document for full terms, conditions, and exclusions.

What is the lifting capacity of the Challenger EW10?

The Challenger EW10 has a total lifting capacity of 10,000 lb with 2,500 lb capacity per arm. This capacity is ALI/ETL certified, ensuring it meets rigorous industry safety standards for professional automotive service.

What makes the EW10 ideal for electric vehicle service?

The EW10 features an extra-wide 88" drive-through clearance specifically designed for EV service. This allows technicians to lower battery packs directly out of electric vehicles without obstruction from lift components, while still maintaining full functionality as a conventional inground lift for standard service work.

What is the difference between the EW1020 and EW1020-QC models?

The EW1020-QC includes the QuickCycle upgrade, which reduces rise time from 41 seconds to 24 seconds using an upgraded 3HP motor (versus the standard 2HP). This faster cycling significantly increases bay throughput and productivity for high-volume service operations.

What are the electrical requirements for the EW10?

The standard EW1020 requires 208V-230V, 60Hz, single-phase power with a 2HP motor circuit. The QuickCycle EW1020-QC model requires the same voltage but needs a 3HP motor circuit. Additionally, 90-120 psi compressed air supply is required for lift operation.

How much space do I need for the EW10?

The EW10 has an overall width of 118" with 88" drive-through clearance. The lift provides 78" of rise height with a 72" stroke. Ensure your bay has adequate ceiling clearance for the tallest vehicles you service plus the full rise height, and allow working space around the lift for technician access.

What colors are available for the EW10?

The EW10 superstructure is available in three color options: Black, Red, or Blue. Select the color that best matches your shop's aesthetic or branding when ordering.

What is the Bench-Mount Controls (BMC) option?

The optional Bench-Mount Controls integrate the lift controls into a workbench for a cleaner aesthetic and more convenient operation. Available with either button or lever controls, BMC enhances technician comfort and productivity by placing controls within easy reach of the work area.

Is professional installation required?

Yes, professional installation by a qualified lift installer is required. The EW10 is an inground lift requiring proper excavation, concrete work, electrical connections, and air supply installation. Professional installation ensures safe operation and maintains warranty coverage.

What is included with the EW10 purchase?

The EW10 includes the complete inground lift assembly with 3-stage front and rear arms, double-telescoping screw pads, hydraulic power unit, control station, installation hardware, and documentation. Concrete work, electrical wiring, air supply plumbing, and installation labor are not included.

How does shipping work for the EW10?

The EW10 ships via freight with free delivery to commercial addresses in the 48 contiguous United States. A forklift or loading dock is required for unloading. Inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt.

Why does the EW10 only require one concrete pour?

The EW10's innovative design eliminates the traditional multi-pour installation process common with inground lifts. This simplified single-pour installation reduces installation time and complexity, lowers overall installation costs, and gets your service bay operational faster.

What vehicles can the EW10 accommodate?

With 3-stage arms providing 20" to 42" reach and adjustable screw pads from 4" to 6.125", the EW10 accommodates a wide range of vehicles from compact cars to large SUVs. The 88" drive-through clearance specifically accommodates the widest modern vehicles including electric vehicles and wide-body luxury cars with manufacturer-specified lifting points.

WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

• Challenger EW10 Sales Sheet (PDF)
• Challenger EW10 Installation and Operation Manual (PDF)
• Challenger Warranty Information (PDF)
