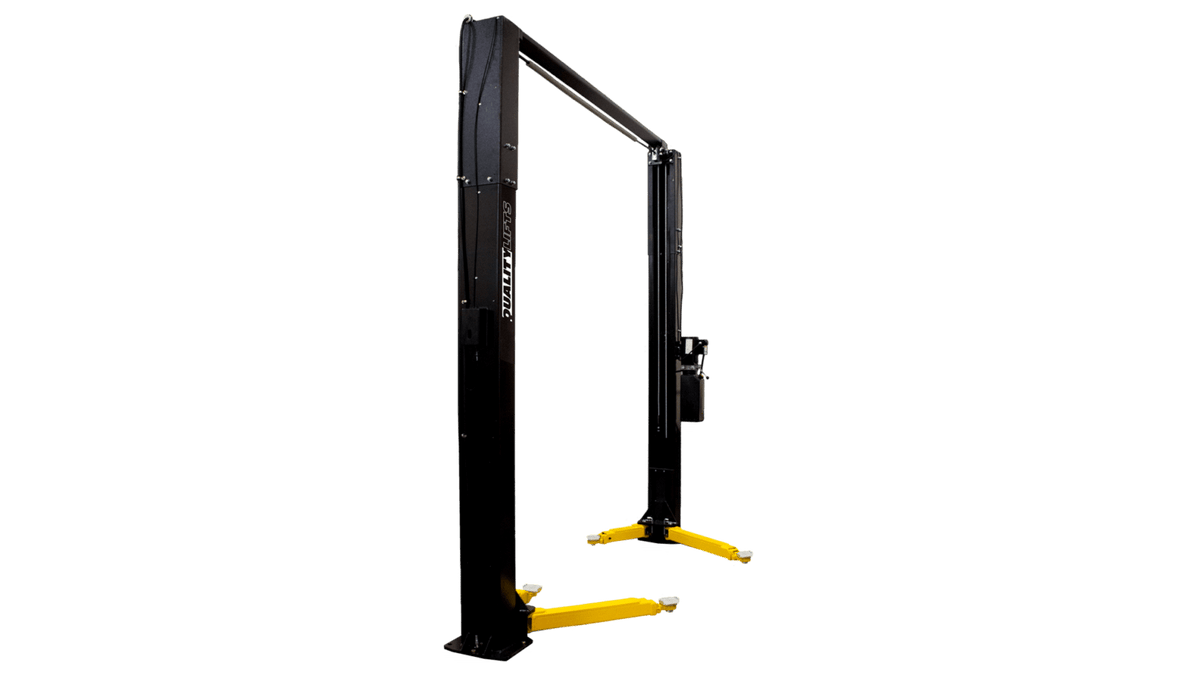

Challenger EQ10 10K Two-Post Lift (Quality/Economy)

Challenger EQ10 10,000 lb Two-Post Lift for Commercial Automotive Service

The Challenger EQ10 is a 10,000 lb ALI-certified two-post lift engineered for routine automotive service on passenger vehicles, light trucks, and SUVs. Featuring 3-stage front and 2-stage rear arms, a 2 HP single-phase motor, and automatic arm restraints, this model delivers reliable performance in commercial shop environments and advanced home garages without premium-tier pricing.

ALI certified two-post lift for commercial-grade reliability and compliance10,000 lb capacity handles passenger cars, light trucks, and SUVs3-stage front / 2-stage rear arms support wide vehicle footprint range2 HP 208-230V single-phase motor compatible with standard shop electrical

Maximum Capacity	10,000 lb (4,536 kg)
Rise Height	72.25 inches (1,835 mm)
Drive-Thru Clearance	98.375 inches (2,497 mm)
Pad Height	4.25 inches (108 mm)
Overall Height (Retracted)	143.875 inches (3,656 mm)
Front Arm Configuration	3-stage hydraulic arms
Rear Arm Configuration	2-stage hydraulic arms
Lift Type	Symmetric two-post (overhead hydraulic)
Safety Features	Automatic arm restraint system with overhead shut-off bar
Motor Size	2 HP
Voltage	208-230V single phase
Frequency	60 Hz
Power Type	Single-phase electrical

• ALI Certification & Commercial-Grade Design
• Multi-Stage Arm Configuration for Vehicle Compatibility
• 2 HP Single-Phase Motor & Efficient Lifting Performance
• Automatic Arm Restraint System for Load Security
• Drive-Thru Clearance Design for Service Bay Efficiency

Foundation & Mounting

• Concrete Slab Specification: 4-inch reinforced concrete slab, minimum 3,500 PSI, fully cured before installation.
• Slab Condition: Level surface with no significant settling, cracks, or deformation that would affect lift column alignment or weight distribution.
• Anchoring: Follow manufacturer specification sheet for anchor bolt sizing, torque specifications, and installation methodology. Proper anchoring prevents column drift and ensures load stability during operation.

Power Requirements

• Voltage: 208-230V single phase, 60 Hz AC power required.
• Circuit Capacity: Dedicated 20-amp minimum circuit recommended; verify with facility electrical documentation and local electrical code requirements.
• Wiring Installation: Install per NEC (National Electrical Code) standards and local jurisdictional requirements. Three-phase conversion is not recommended; consult manufacturer for site-specific electrical questions.
• Electrical Permit: Verify with local building authority whether electrical permit is required for lift installation and power connection.

Facility Clearances & Environment

• Ceiling Height: 144 inches (3,658 mm) minimum clearance above floor level required to permit full lift arm extension without obstruction.
• Ventilation: Adequate shop ventilation should remain operational during lift use to manage hydraulic heat dissipation and maintain equipment operating temperature.
• Operating Temperature: Equipment rated for standard shop environments; protect from direct weather exposure (rain, snow, extreme temperature fluctuations).
• Installation Verification: Upon delivery, verify concrete condition, clearances, and electrical service match manufacturer specifications before operational use.

Installation & Code Compliance

• Professional Installation Recommended: While specifications are provided for planning purposes, installation by qualified service technicians familiar with automotive lift assembly is strongly recommended to ensure safety and warranty compliance.
• Permits: Verify with local building department whether building permits or lift installation permits are required in your jurisdiction. Compliance with local codes is the facility owner's responsibility.

Warranty Structure

Warranty terms vary by authorized dealer and distributor. The Challenger EQ10 carries manufacturer-backed coverage; exact duration, component coverage, and conditions should be confirmed with the selling distributor at point of purchase.

Typical warranty includes structural components and hydraulic system, with duration and terms varying by dealer package. Review warranty documentation before purchase to understand specific coverage, registration requirements, and claim procedures.

Warranty Considerations

• Verification: Request written warranty terms and coverage scope from distributor before finalizing purchase.
• Registration: Follow manufacturer registration procedures if applicable to activate warranty coverage.
• Installation Compliance: Warranty validity depends on proper installation per manufacturer specifications and adherence to maintenance protocols.

What is the maximum lift capacity of the Challenger EQ10?

The Challenger EQ10 has a rated capacity of 10,000 lb (4,536 kg) for passenger cars, light trucks, and SUVs. Never exceed this rated capacity as it directly impacts safety, structural integrity, and equipment performance. The lift features a 72.25-inch rise height and 98.375-inch drive-thru clearance. Verify specific vehicle compatibility using the lift manual before each service operation.

What are the concrete foundation requirements for the EQ10?

A 4-inch reinforced concrete slab with minimum 3,500 PSI compressive strength is required and must be fully cured before lift installation. The slab must be level without significant cracks, settling, or deformation that would affect lift column alignment. Proper anchoring per manufacturer specifications is essential for stable operation. Verify foundation condition and local building codes before installation begins.

Is the Challenger EQ10 ALI certified?

Yes, the EQ10 carries ALI (Automotive Lift Institute) certification, confirming compliance with rigorous safety and structural performance standards. ALI certification is verified through third-party independent testing and is appropriate for commercial service facilities, dealerships, and professional shops. This certification is uncommon among economy-tier 10,000 lb two-post lifts and validates the lift's structural integrity and safety system design.

What is the rise height of the Challenger EQ10?

The rise height is 72.25 inches (1,835 mm) from minimum pad height to maximum extension, providing adequate clearance for undercarriage access on passenger vehicles, light trucks, and SUVs. The pad height is 4.25 inches (108 mm) when retracted. The drive-thru clearance is 98.375 inches (2,497 mm), permitting vehicles to drive through the service bay without repositioning. These dimensions enable diverse service operations within shop constraints.

What electrical service is required for the EQ10?

The EQ10 requires 208-230V single-phase, 60 Hz AC power on a dedicated 20-amp minimum circuit. Single-phase power is standard in most commercial and residential facilities, eliminating the need for three-phase electrical infrastructure upgrades. The 2 HP motor provides adequate hydraulic pressure for the 10,000 lb capacity range. Installation must comply with NEC (National Electrical Code) and local electrical code requirements before operational use.

What arm configuration does the Challenger EQ10 feature?

The EQ10 features 3-stage front arms and 2-stage rear arms, enabling independent extension adjustment for vehicles with different wheelbases and suspension layouts. This multi-stage design accommodates passenger cars through full-size trucks within the 10,000 lb capacity without repositioning. The symmetric lift configuration with overhead hydraulic system enables consistent lift performance across the full 72.25-inch rise height range.

Is professional installation required for the Challenger EQ10?

While specifications are provided for planning purposes, installation by qualified service technicians is strongly recommended to ensure safety, proper column alignment, concrete anchor verification, and warranty compliance. The lift requires 144 inches (3,658 mm) of ceiling clearance and a 4-inch reinforced 3,500 PSI concrete slab. Verify local permit requirements with your building authority before installation begins.

What is the minimum ceiling height required for the Challenger EQ10?

A ceiling height of 144 inches (3,658 mm) above floor level is required to permit full lift arm extension without obstruction. This measurement allows the arms to extend fully during service operations on tall vehicles and accommodates overhead accessories. Verify facility ceiling height, measure clearances above floor, and identify any overhead obstructions such as pipes, conduit, or beams before installation.
