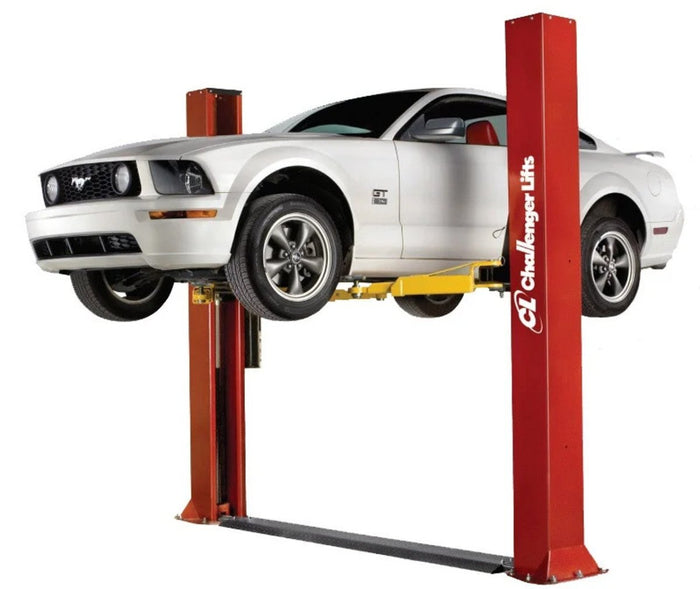

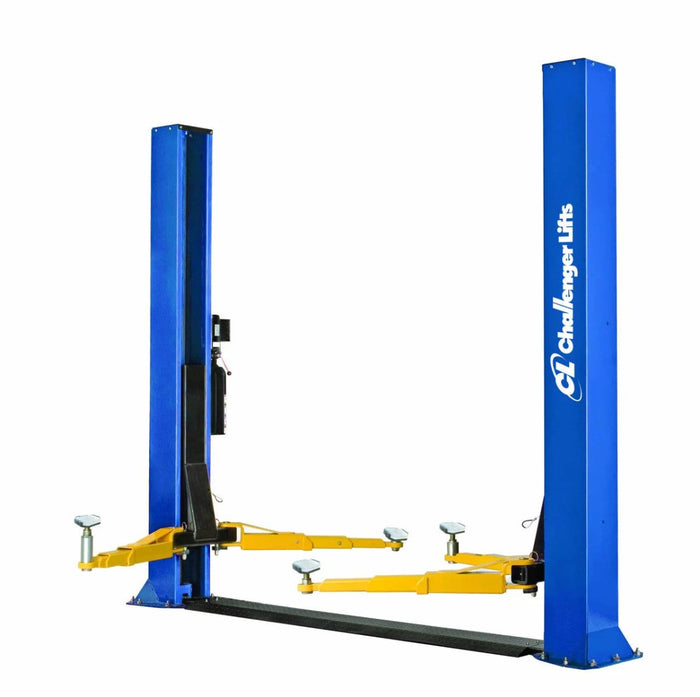

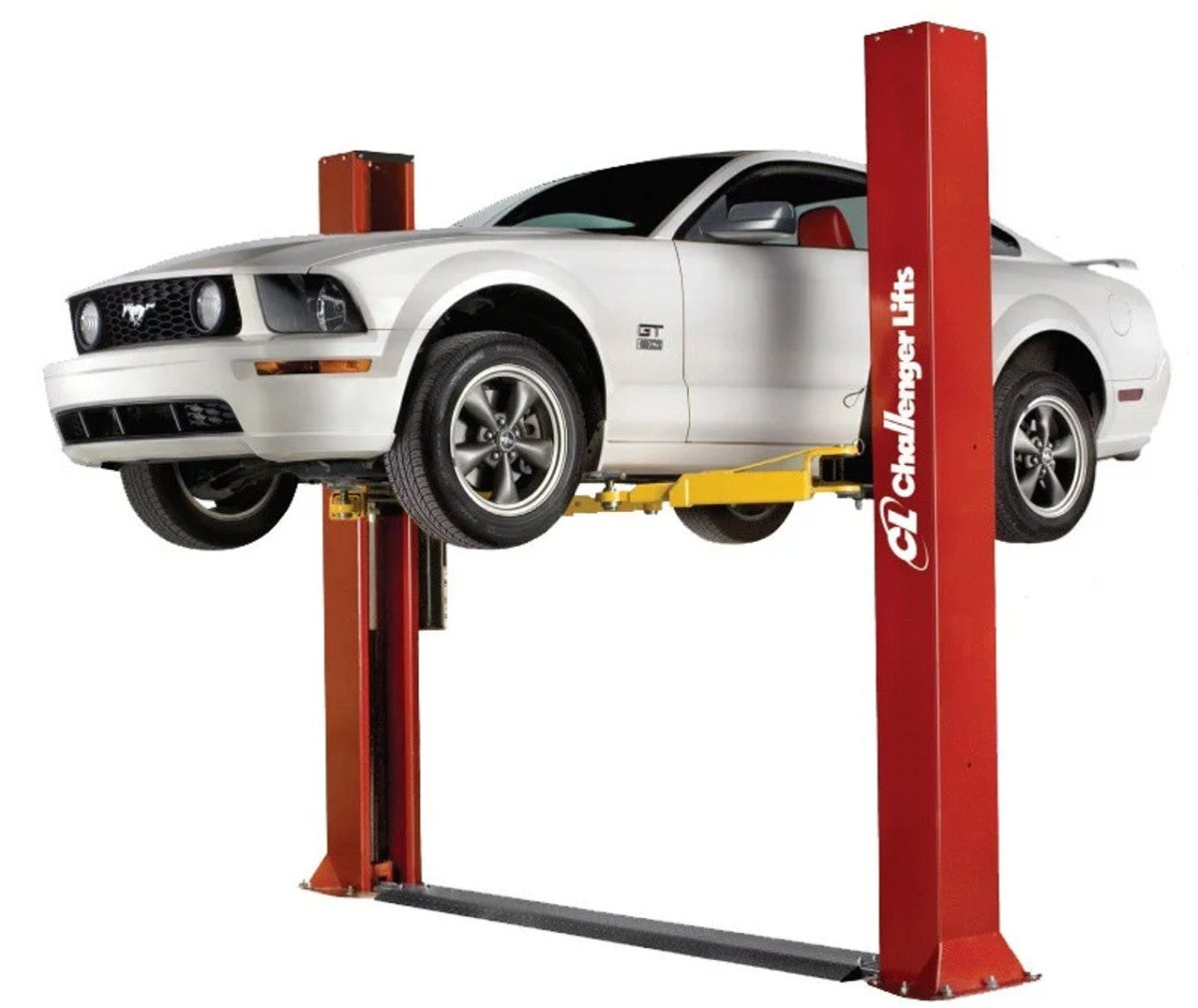

Challenger CLFP9 Two Post Car Lift 9000 lb Low Ceiling

• 9,000 lb lifting capacity for cars, trucks, vans, and SUVs
• Only 10' 2" ceiling height required - ideal for low ceiling installations
• Low-profile drive-over floor plate for easy vehicle positioning
• 3-stage front and rear arms with 24.5" to 44.5" reach
• 5-year structural parts warranty from American manufacturer

Low Ceiling Height Design

The CLFP9 requires only 10' 2" ceiling height with an overall column height of 120.875", making it the ideal choice for home garages, basement shops, and commercial facilities with limited overhead clearance. The electric/hydraulic chain lifting operation with cable equalization further reduces ceiling height requirements compared to overhead beam designs.

Low-Profile Drive-Over Floor Plate

The open-top design with drive-over floor plate allows vehicles to be easily positioned from either direction. This eliminates the need for precise alignment and makes the CLFP9 exceptionally user-friendly for both professional technicians and home enthusiasts working on their own vehicles.

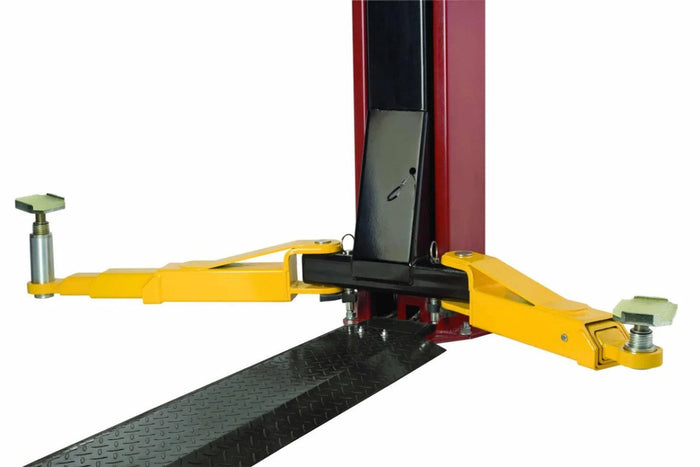

3-Stage Telescoping Arms

Both front and rear arms feature 3-stage telescoping design with a reach range of 24.5" to 44.5". This provides maximum sweep, arm retraction, and reach to accommodate a wide variety of cars, trucks, vans, and SUVs within the same service bay without needing multiple lift configurations.

Premium Double Telescoping Screw Pads

Height-adjustable screw pads extend from 4" to 5.875", allowing technicians to reach various lift points without additional adapters in most applications. The double-telescoping design provides fine-tuned height adjustment for precise vehicle contact and maximum stability.

Heavy-Duty Construction

The fully gusseted base plate design increases column rigidity for stable, secure lifting. Plated arm restraints and arm pins resist rust and corrosion, while the durable powder coat finish protects against chips, scratches, and environmental wear for long-lasting performance.

Dual Safety Systems

The dual-point mechanical pull-lock cable release system provides reliable safety engagement, while standard dual integrated rubber door guards help protect vehicle door panels from inadvertent contact during service operations.

Electrical Requirements

Power: 208-230V, 60Hz, single-phase electrical supply with appropriate amperage for the 2HP motor. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.

Concrete Foundation

Anchoring: Minimum 4" thick reinforced concrete with compressive strength of at least 3,000 PSI is required. The floor must be level and free of cracks or deterioration in the anchor locations. Refer to the installation manual for specific anchor bolt requirements and placement.

Space Requirements

Ceiling Height: Minimum 10' 2" required. Overall Width: 137.5" column to column. Drive-Thru Clearance: 98.187" for vehicle positioning. Allow additional clearance around the lift for safe operation and vehicle door opening.

Professional Installation

Professional installation by a qualified lift technician is strongly recommended. Proper installation is required to maintain warranty coverage. Challenger Lifts requires product registration at challengerlifts.com to activate warranty protection.

• Two lift columns with fully gusseted base plates
• Drive-over floor plate
• 3-stage front arms (2)
• 3-stage rear arms (2)
• Double telescoping screw pads (4)
• Power unit with 2HP motor
• Hydraulic hoses and fittings
• Lifting cables with equalization system
• Dual integrated rubber door guards
• Anchor bolts and hardware
• Installation and operation manual

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky. Contact us for current lead times. International: Contact sales for international shipping quotes.

Delivery Requirements

Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and is too heavy for manual unloading. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for visible damage before signing the bill of lading. Note any damage on the delivery receipt immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer is responsible for all return freight costs.

Challenger Lifts Limited Warranty

Challenger Lifts, Inc. guarantees the CLFP9 to the original owner when properly installed and maintained according to manufacturer specifications.

• 5 Years: Structural parts including columns, carriages, arms, and cross beams
• 1 Year: Functional parts including power unit, cylinders, hoses, cables, valves, and controls
• 1 Year: Labor costs for warranty repairs

Requirements: Warranty registration must be completed online at challengerlifts.com/register-your-lift. Product must be installed according to CLI specifications. Use of unapproved parts or accessories voids warranty. This warranty is non-transferable and extends only to the original purchaser.

What is the lifting capacity of the Challenger CLFP9?

The Challenger CLFP9 has a maximum lifting capacity of 9,000 lbs. This capacity is suitable for most passenger cars, crossovers, minivans, mid-size SUVs, and light trucks. Always verify your vehicle's weight before lifting and ensure proper lift point contact.

What ceiling height do I need for the CLFP9?

The CLFP9 requires a minimum ceiling height of 10' 2" (122 inches). The overall column height is 120.875" (approximately 10' 7/8"). This makes it one of the best options for low ceiling applications where standard two-post lifts won't fit.

What electrical power is required for the CLFP9?

The CLFP9 requires 208-230V, 60Hz, single-phase electrical power for its 2HP motor. A licensed electrician should install a dedicated circuit with appropriate amperage. Consult the installation manual for specific electrical requirements and always follow local electrical codes.

Can I install the CLFP9 myself?

While DIY installation is possible for experienced individuals, professional installation is strongly recommended. Proper installation is required to maintain warranty coverage, and the lift must be installed according to Challenger's specifications. Incorrect installation can result in unsafe operation and void your warranty.

What warranty comes with the Challenger CLFP9?

The CLFP9 includes Challenger's limited warranty: 5 years on structural parts (columns, arms, carriages), 1 year on functional parts (power unit, cylinders, cables, valves), and 1 year on labor. You must register your lift at challengerlifts.com to activate warranty coverage.

What is included with the CLFP9?

The CLFP9 comes complete with both lift columns, drive-over floor plate, four 3-stage arms (2 front, 2 rear), four double telescoping screw pads, power unit, hydraulic components, lifting cables, rubber door guards, anchor hardware, and installation manual. Electrical wiring and installation labor are not included.

How is the CLFP9 shipped and delivered?

The CLFP9 ships via freight carrier from Louisville, Kentucky. Free shipping is included to commercial addresses in the contiguous 48 states. A forklift or loading dock is required for unloading as the lift ships on pallets. Curbside delivery is standard - inspect for damage before signing.

What colors is the CLFP9 available in?

The Challenger CLFP9 is available in Red and Blue with a durable powder coat finish. Select your preferred color when ordering. The powder coat finish provides long-lasting protection against chips, scratches, and corrosion.

How does the CLFP9 compare to overhead beam two-post lifts?

The CLFP9 uses a floor plate design instead of an overhead beam, which reduces the ceiling height requirement. The electric/hydraulic chain lifting operation with cable equalization maintains synchronized lifting without the overhead structure. This makes the CLFP9 ideal for low ceiling installations where overhead beam lifts won't work.

What concrete requirements does the CLFP9 need?

The CLFP9 requires a minimum 4" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be level, crack-free, and in good condition at anchor locations. Refer to the installation manual for specific anchor bolt specifications and placement requirements.

What maintenance does the CLFP9 require?

Regular maintenance includes visual inspection of cables, chains, and hydraulic components, lubrication of moving parts, checking hydraulic fluid levels, and inspecting safety locks and arm restraints. Follow the maintenance schedule in your operation manual. Proper maintenance is required to maintain warranty coverage.

Can I use truck adapters with the CLFP9?

Yes, optional truck adapters and frame contact adapters are available for the CLFP9 to accommodate vehicles with frame lift points. The double telescoping screw pads also provide height adjustment from 4" to 5.875" to help reach various lift points without adapters in many applications.
