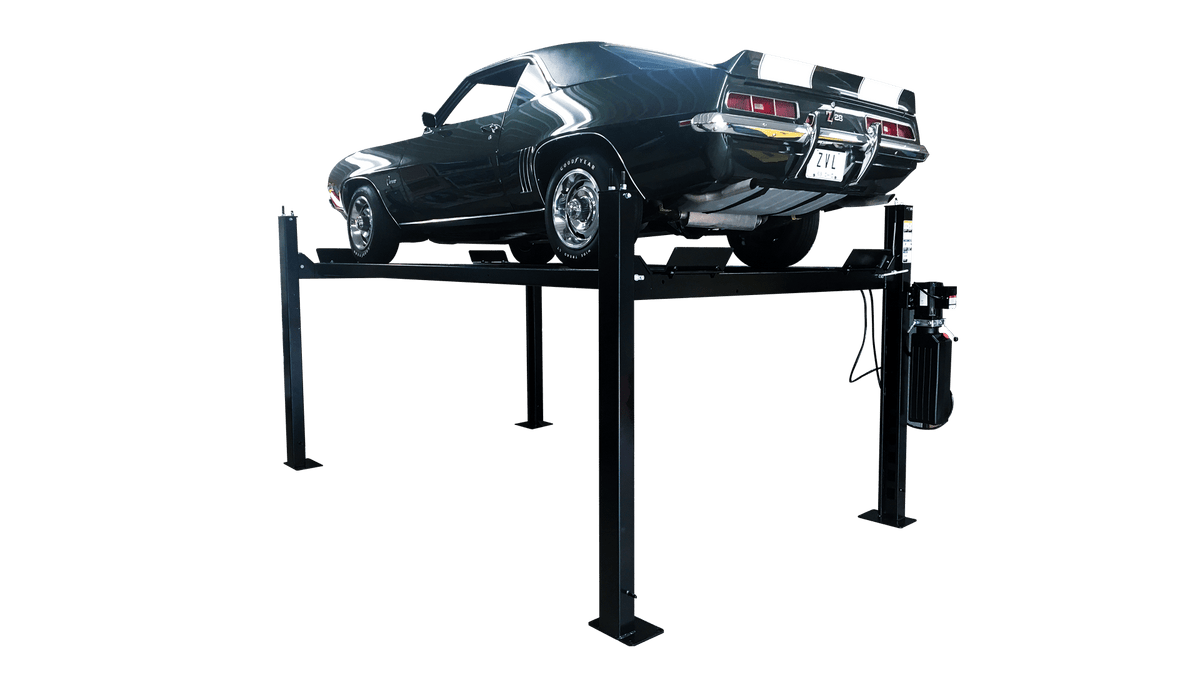

Challenger CL4P7 Four Post Car Lift 7,000 lb Home Garage

• 7,000 lb lifting capacity handles cars, trucks, and SUVs
• 63" storage clearance for vehicle-over-vehicle parking
• Free-standing or bolt-down installation options
• ALI/ETL certified for safety and quality assurance
• 36" aluminum approach ramps included standard

Challenger CL4P7 Features

Free-Standing or Bolt-Down Installation

The CL4P7 maintains its ALI/ETL certification whether anchored to concrete or left free-standing. This portability means you can relocate the lift as your garage layout evolves, making it ideal for home enthusiasts who may move or reconfigure their workspace.

Commercial-Grade Formed Runways

Challenger uses the same heavy-duty runway construction found on their larger commercial lifts. The 20" wide runways with 38" between runways provide a stable, secure platform that accommodates a wide range of vehicle track widths while supporting the full 7,000 lb capacity.

Single-Point Manual Lock Release

The synchronized lock system allows you to disengage all column locks simultaneously with a single action. This streamlined operation speeds up your workflow and eliminates the need to walk around the lift releasing individual locks at each column.

Adjustable Lock Ladders

The adjustable lock ladder system compensates for uneven garage floors, a common challenge in residential installations. Fine-tune each column independently to ensure the lift sits level and operates safely regardless of minor floor irregularities.

Built-In Runway Rail System

The integrated rail system along the runways provides mounting points for optional rolling jacks, oil drip trays, and other accessories. This versatility transforms the CL4P7 from a simple storage lift into a complete service platform as your needs grow.

No Air Required for Operation

Unlike some four post lifts that require compressed air for lock engagement, the CL4P7 operates entirely on electric power. This simplifies installation and eliminates the need for an air compressor, reducing both upfront costs and ongoing maintenance.

Challenger CL4P7 Applications

• Home Garage Vehicle Storage: Park two vehicles in a single bay footprint by storing one car, truck, or SUV on top of another. The 63" clearance height accommodates most passenger vehicles underneath while providing secure elevated parking above.
• DIY Home Mechanic Service: Perform oil changes, brake jobs, exhaust work, and suspension repairs from a standing position. The 68.125" rise height provides comfortable working clearance for most enthusiasts without stooping or crouching.
• Classic Car and Collector Storage: Keep valuable vehicles elevated and protected from garage floor moisture, pests, and accidental bumps. The stable four post design distributes weight evenly and keeps tires properly loaded to prevent flat spots.
• Light Duty Commercial Service: Small shops, mobile detailing operations, and specialty service providers can use the CL4P7 for quick service work where a full commercial lift footprint is not practical or necessary.
• Seasonal Vehicle Rotation: Easily swap between summer and winter vehicles, motorcycles with trailers, or recreational equipment. The free-standing installation option allows repositioning as your storage needs change throughout the year.

Challenger CL4P7 Installation Requirements

Electrical Requirements

Power: 115V or 230V single-phase power supply. The 230V option provides faster rise times (60 seconds vs 120 seconds on 115V). A licensed electrician should install and verify the electrical supply meets local codes.

Concrete Foundation

Anchoring: The CL4P7 can be installed free-standing or anchored to concrete. If anchoring, a minimum 4" thick concrete slab with 3,000 PSI compressive strength is recommended. The lift maintains ALI/ETL certification in either configuration.

Space Requirements

Minimum Bay Size: 10' x 20'. Ceiling Height: Column height is 6' 7.5" with additional clearance needed for the vehicle on top. Use Challenger's ceiling clearance calculator to verify your garage can accommodate the lift plus vehicle height at full rise.

Professional Installation

While the CL4P7 is designed for home installation, professional installation is recommended to ensure proper assembly, leveling, and electrical connections. Improper installation may void warranty coverage and compromise safety.

• Complete four post lift structure with columns, runways, and crossbeams
• 36" aluminum approach ramps (standard)
• Hydraulic power unit with motor
• Single-point manual lock release system
• Adjustable lock ladders
• Hardware and fasteners for assembly
• Installation and operation manual

Challenger CL4P7 Shipping and Delivery

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Residential delivery available for an additional fee. Lead Time: Ships within 5-10 business days. International: Contact sales for a custom quote.

Delivery Requirements

Unloading: A forklift or loading dock is required for unloading. The lift ships on a pallet and weighs several hundred pounds. Delivery Type: Curbside delivery is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. A 20% restocking fee applies. Buyer is responsible for return freight costs.

Challenger CL4P7 Warranty

Challenger Lifts Warranty Coverage

Challenger Lifts backs the CL4P7 with comprehensive warranty protection:

• 5 Years: Structural components including columns, runways, and crossbeams
• 2 Years: Hydraulic cylinders and power unit components
• 1 Year: Electrical components, seals, and wear items

Requirements: Warranty coverage requires proper installation according to manufacturer specifications and routine maintenance as outlined in the owner's manual. Damage from misuse, overloading, or unauthorized modifications is not covered.

What is the lifting capacity of the Challenger CL4P7?

The Challenger CL4P7 has a maximum lifting capacity of 7,000 lb, which accommodates most passenger cars, crossovers, mid-size SUVs, and light trucks. For heavier vehicles, consider the CL4P9 series which offers 9,000 lb capacity.

What size garage do I need for the CL4P7?

Challenger recommends a minimum bay size of 10' x 20' for the CL4P7. The lift itself measures 195.5" long by 100.5" wide. You will also need adequate ceiling height to accommodate the lift columns (6' 7.5") plus the height of your vehicle when raised. Use Challenger's ceiling clearance calculator to verify fitment.

What electrical requirements does the CL4P7 have?

The CL4P7 operates on standard 115V or 230V single-phase power. No special three-phase electrical service is required. The 230V option provides faster lift speeds (60 seconds vs 120 seconds on 115V). A licensed electrician should install the electrical supply.

Does the CL4P7 need to be bolted to the floor?

No, the CL4P7 can be installed free-standing without floor anchors and still maintains its ALI/ETL certification. This makes it ideal for renters or anyone who may need to relocate the lift. However, you can also bolt it down to concrete if you prefer a permanent installation.

What is covered under the Challenger warranty?

Challenger provides a 5-year warranty on structural components, 2-year coverage on hydraulic cylinders and power unit, and 1-year coverage on electrical components and seals. Warranty requires proper installation and maintenance per the owner's manual.

What comes included with the CL4P7?

The CL4P7 includes the complete lift structure, 36" aluminum approach ramps, hydraulic power unit, single-point lock release system, adjustable lock ladders, all assembly hardware, and the installation manual. Optional accessories like rolling jacks and oil drain pans are sold separately.

How is the CL4P7 shipped and delivered?

The CL4P7 ships via freight carrier with free delivery to commercial addresses in the lower 48 states. Residential delivery is available for an additional fee. You will need a forklift or loading dock to unload the lift. Always inspect shipments for damage before signing the delivery receipt.

What optional accessories are available for the CL4P7?

The CL4P7 features a built-in runway rail system that accepts optional rolling bridge jacks for wheel-free service, oil drain pans, drip trays, extended approach ramps, and wheel chocks. These accessories allow you to expand your service capabilities as needed.

How does the CL4P7 compare to the CL4P9 models?

The CL4P7 offers 7,000 lb capacity in a compact 10' x 20' footprint with 63" storage clearance. The CL4P9 series provides 9,000 lb capacity with larger dimensions, greater rise heights (up to 85.5"), and up to 80" storage clearance. Choose the CL4P7 for tighter spaces and lighter vehicles, or step up to the CL4P9 for heavier trucks and maximum clearance.

Does the CL4P7 require compressed air?

No, the CL4P7 operates entirely on electric power with no compressed air required. This simplifies installation and eliminates the need for an air compressor, reducing both upfront and ongoing costs compared to air-operated lift locks.

How much clearance do I have for the vehicle stored underneath?

The CL4P7 provides 63" of clearance height when the lift is in the top locked position. This accommodates most sedans, coupes, and smaller crossovers. Measure your lower vehicle's height to ensure it fits comfortably with clearance to spare.

What maintenance does the CL4P7 require?

Regular maintenance includes periodic inspection of cables, sheaves, and hydraulic lines; lubrication of moving parts; checking hydraulic fluid levels; and verifying lock engagement. Refer to the owner's manual for the complete maintenance schedule and procedures to maintain warranty coverage.
