Challenger CL10A-XP9 Express Pad Two-Post Lift 10,000 lb

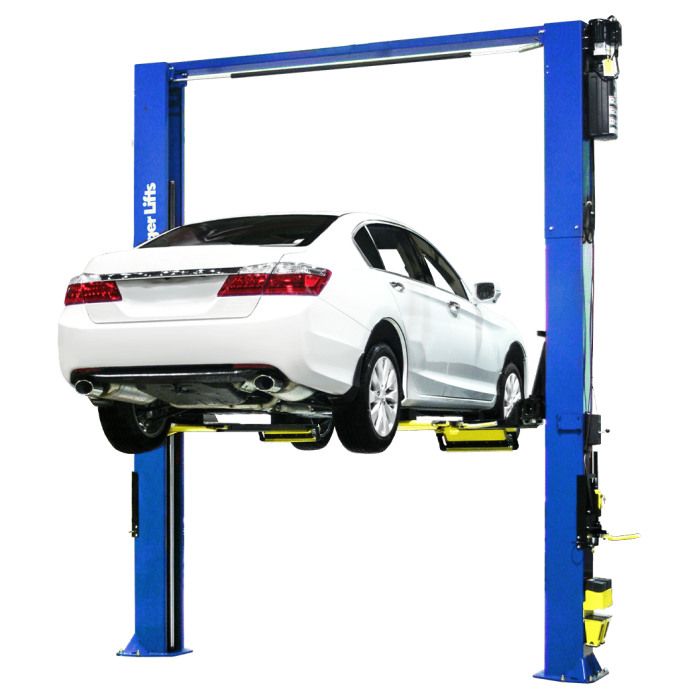

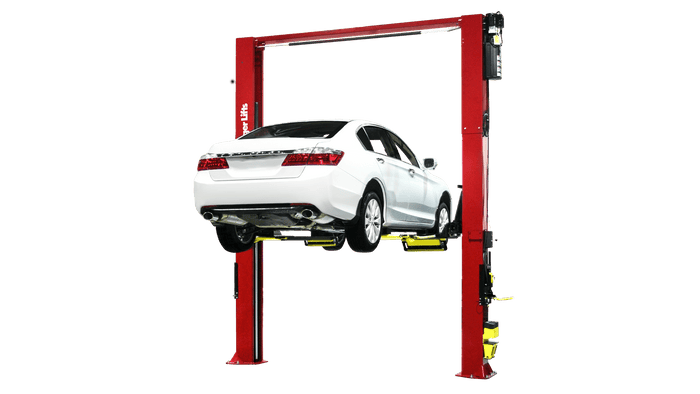

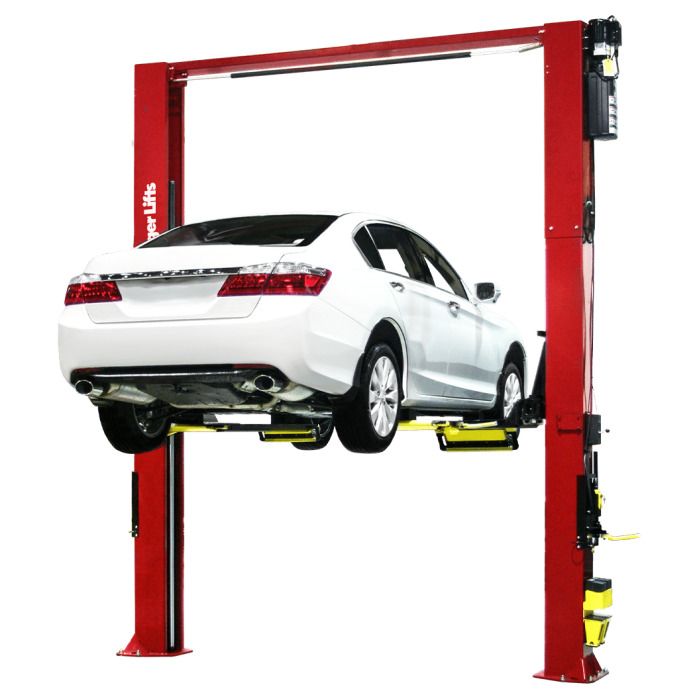

Challenger CL10A-XP9 Two-Post Lift Overview

You're running an express bay. Every minute a vehicle sits on the ground waiting to get spotted is a minute you're not billing. The Challenger CL10A-XP9 is a 9,000 lb capacity two-post lift with a drive-on express pad that skips swing arm positioning entirely. Drive the vehicle on, flip the ramps, lift. Conventional single-point controls keep operation simple and direct.

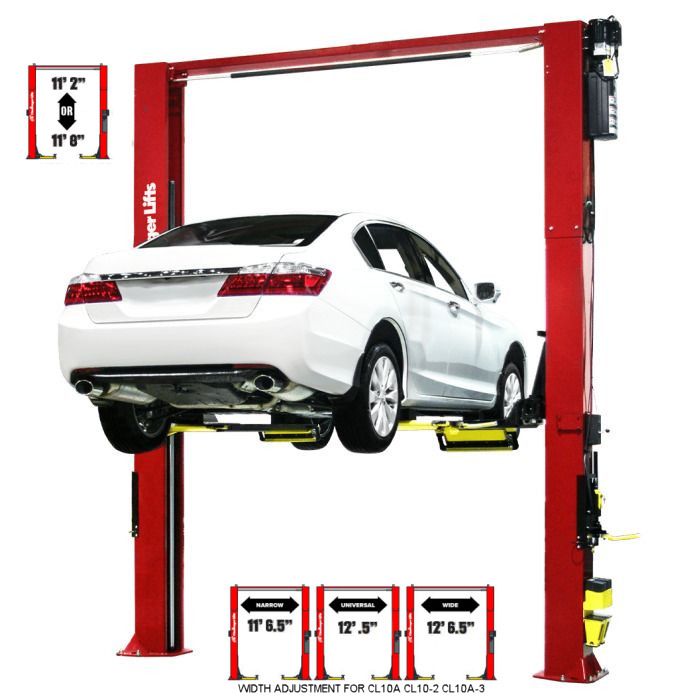

This is the base configuration in the CL10A-XP9 lineup. Standard height, no extensions, no add-ons. Full 70-inch rise, ALI/ETL certification, and the same drive-on platform that runs across the entire series, all at the lowest entry point. Overall height is 140 inches (143 inches cylinder extended), fitting comfortably in 12-foot ceiling bays. The 2.25-inch low-profile platform clears vehicles with minimal ground clearance, and reinforced flip-up ramps lock at three lengths for different wheelbases. Need QuickCycle, dual pendants, or extensions? The CL10A-XP9 series has configurations for all of it.

Challenger built this platform for high-cycle durability. Elongated 48-inch carriage, oversized 5-inch pulleys, heavy-duty 5/16-inch equalization cables, and a pulley-less jacketed lock release that stays smooth over thousands of cycles. Premium powder coat handles chemical exposure and shop abuse. Need parts or support? Give us a call.

• Challenger CL10A-XP9 two-post lift (standard height, no extensions)
• Drive-on express pad system with reinforced flip-up ramps
• Conventional power control system
• Column-mounted spotting block storage caddies
• Dual integrated rubber door guards
• Front and rear flip-up locking access ramps
• Padded overhead shutoff system
• Anchor bolts and mounting hardware
• Installation and operation manual

Electrical Requirements

Requires 208-230V, 60 Hz, single-phase power for the 3 HP motor. A licensed electrician must install a dedicated circuit per local codes and the installation manual.

Concrete Foundation

Surface-mounted into a minimum 4-inch reinforced concrete slab at 3,000 PSI compressive strength. Concrete must be fully cured with no cracks at anchor points.

Space Requirements

Minimum 12-foot ceiling height required. Overall height is 140 inches (143 inches cylinder extended) with no extensions. Drive-through clearance is 90 inches.

Professional Installation

Professional installation by a qualified lift technician is strongly recommended. Improper installation can void warranty and create safety hazards. Contact us for installer recommendations in your area.

Drive-on pad gets vehicles up and down fast for oil changes, filter swaps, and fluid services without arm repositioning.

Unobstructed wheel access from both sides for mounting, balancing, and rotation. The drive-on pad keeps vehicles moving through your tire lane without arm repositioning delays.

Full undercarriage visibility for disc and drum inspection, pad replacement, rotor service, and caliper work at comfortable working height.

Compliant undercarriage access for safety and emissions programs, plus suspension, exhaust, and general undercar work within the 9,000 lb capacity.

Freight Delivery: Ships via flatbed freight truck. Our team coordinates the shipment and helps manage scheduling details.

Unloading: Forklift or similar equipment required. Drivers do not assist. If no forklift is available on-site, the shipment can route to a local freight terminal for pickup.

Truck Access: Deliveries arrive on a 48-foot semi. Make sure your location has adequate space for truck access.

Lead Times: Subject to factory lead times and warehouse stock availability. Contact us for current status.

Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best setup and any accessorial charges.

Challenger Lifts provides a limited warranty to the original purchaser covering repair or replacement of defective parts, including reasonable labor and transportation costs. The lift must be installed, used, and maintained according to official specifications.

Eligibility: Valid for the original purchaser only. Not transferable. Applies to lifts installed within the United States and Canada.

Coverage: Challenger will repair or replace parts that prove defective upon inspection, including reasonable costs for labor and transportation during the warranty period.

Exclusions: Coverage does not extend to consumable items, normal maintenance, adjustments, wear and tear, damage from abuse or misuse, negligence, improper installation, or repairs performed by unauthorized service representatives. Use of unapproved parts or accessories may also void coverage.

Warranty registration may be required after purchase. Refer to included documentation for details.

What ceiling height do I need?

Minimum 12-foot ceiling. The CL10A-XP9 stands 140 inches overall (143 inches cylinder extended) with no extensions. Verify clearance for ductwork and sprinklers before ordering.

What upgrade options are available in this series?

The CL10A-XP9 is the base model with conventional controls, standard speed, and no extensions. You can add QuickCycle (QC suffix), dual pendant controls (DPC suffix), 2-foot or 3-foot column extensions, or any combination. All variants share the same 9,000 lb capacity, 70-inch rise, and drive-on express pad platform.

What are the electrical requirements?

208-230V, 60 Hz, single-phase power for the 3 HP motor. Dedicated circuit required, installed by a licensed electrician. Check the manual for amperage specs.

How does the drive-on express pad work?

You drive directly onto the platform instead of positioning swing arms. Flip-up ramps lock at 58, 66.5, or 75 inches to match wheelbases. The 2.25-inch platform height clears low-riding vehicles.

Does this model include QuickCycle or dual pendant controls?

No. The CL10A-XP9 uses standard hydraulic speed and conventional single-position controls. QuickCycle and dual pendant controls are available as upgrade configurations within the same series. Contact us to compare options.

Do I need a forklift to unload?

Yes. Ships via flatbed freight. Forklift or similar equipment required since drivers don't assist. No forklift? Route to a local freight terminal for pickup.

Is this lift ALI certified?

Yes. ALI/ETL certified, independently tested against recognized safety standards for commercial insurance and OSHA compliance.

What concrete does the installation require?

Minimum 4-inch reinforced slab at 3,000 PSI, fully cured, no cracks at anchor points. See the manual for bolt placement specs.

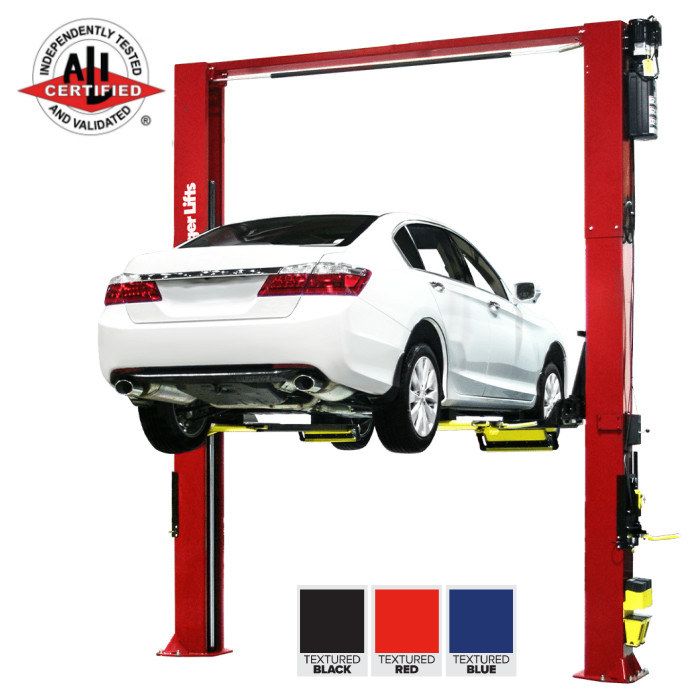

What colors are available?

Red, blue, and black with premium powder coat. Contact us to confirm availability when ordering.

What does the warranty cover?

Challenger covers 1 year labor, 2 years functional parts, and 5 years structural parts for the original purchaser. An extended warranty option is available for CL-series lifts. Registration may be required. See included documentation for full terms.
