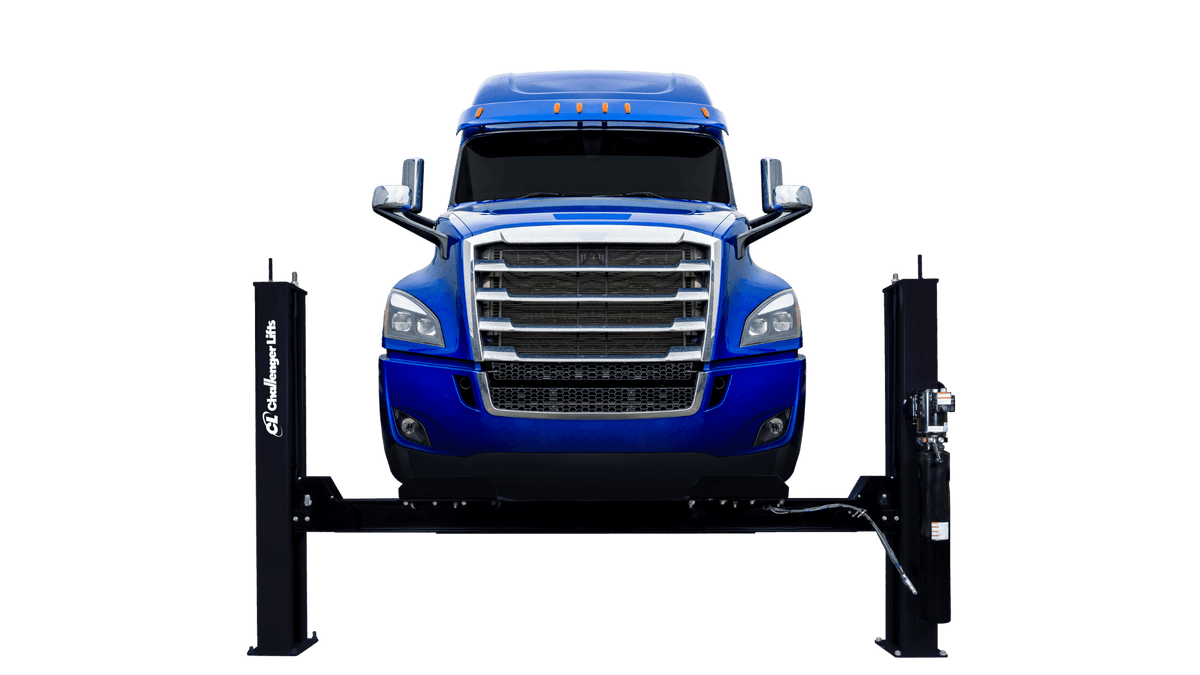

Challenger 4030SFX 30000 lb Heavy Duty Four Post Lift Commercial

• 30,000 lb ALI/ETL-Certified Lifting Capacity
• 71.75" Rise Height for Maximum Working Clearance
• Single-Point Air Actuated Lock Release System
• Heavy-Duty Cable-Driven Design with Steel Sheaves
• 5-Year Structural and 2-Year Functional Parts Warranty

Time-Proven Cable-Driven Lift System

The 4030SFX utilizes Challenger's proven cable and cylinder design system with heavy-duty steel sheaves and cables for optimal performance and reliability. This robust system delivers consistent, smooth lifting action while minimizing maintenance requirements for years of dependable service.

Single-Point Air Actuated Lock Release

A convenient single-point air actuated lock release disengages all column locks simultaneously, making operation simple and efficient. Multiple locking positions accommodate a variety of alignment and general service tasks, providing flexibility for different vehicle heights and service requirements.

Maximum Working Clearance

With a 71.75" rise height, the 4030SFX provides exceptional headroom for technicians working underneath vehicles. The 92.25" column height combined with 8.5" runway height creates an optimal working environment for heavy-duty service applications.

Built-In Runway Rail System

The integrated runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pans (sold separately). This feature enhances shop productivity by keeping essential tools accessible and mobile along the entire runway length.

Adjustable Lock Ladders

Adjustable lock ladders allow for versatile installation with sensitivity to uneven floors. This feature ensures proper lift operation and safety even in facilities where floor conditions are less than ideal, providing consistent locking positions across all columns.

Diamond-Plate Non-Skid Approach Ramps

Durable diamond-plate non-skid louvered approach ramps provide positive vehicle traction during drive-on and technician safety when walking on the lift. The louvered design allows debris and fluids to pass through, maintaining a clean and safe working surface.

• Commercial Fleet Maintenance: Ideal for servicing delivery trucks, box trucks, and fleet vehicles with wheelbases up to 244.5" and weights up to 30,000 lb.
• Heavy-Duty Truck Service: Perfect for medium and heavy-duty truck repair facilities requiring substantial lifting capacity and working clearance for undercarriage access.
• RV and Motorhome Service: The extended runway length and high capacity accommodate recreational vehicles for chassis service, brake work, and general maintenance.
• Bus Maintenance Facilities: Suited for transit authorities and private bus operators needing reliable lifting equipment for scheduled maintenance and repairs.
• Agricultural Equipment Service: Capable of handling farm trucks and utility vehicles requiring heavy-duty lifting capacity in agricultural service centers.

Electrical Requirements

Power: 3HP motor, 208V-230V single phase. A dedicated circuit with appropriate amperage is required. A licensed electrician must install and verify the electrical supply meets all local codes.

Pneumatic Requirements

Air Supply: 90-120 psi compressed air required for the single-point air actuated lock release system. Shop air compressor must be capable of maintaining adequate pressure during operation.

Concrete Foundation

Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength recommended. All anchor points must be installed according to Challenger specifications. Adjustable lock ladders accommodate minor floor variations.

Space Requirements

Minimum Bay Size: 28' x 17'. Overall Dimensions: 308" L x 172.75" W. Ensure adequate ceiling height above the 92.25" column height plus the height of vehicles being serviced.

Professional Installation

Professional installation by a qualified lift technician is strongly recommended. Proper installation is required to maintain warranty coverage. Contact Garage Supply Guys for installation service referrals in your area.

• Complete 4030SFX four post lift assembly
• Heavy-duty steel sheaves and cables
• 3HP power unit (208V-230V single phase)
• Single-point air actuated lock release system
• Diamond-plate non-skid louvered approach ramps
• Adjustable lock ladders
• Built-in runway rail system
• Anchor hardware
• Installation and operation manual

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes.

Delivery Requirements

Unloading: Forklift or loading dock required for unloading. This is a heavy-duty commercial lift shipped on pallets. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.

• 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers
• 2 Years: Functional parts including power units, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, and controls
• 1 Year: Labor for repair or replacement of defective parts

What is the maximum lifting capacity of the Challenger 4030SFX?

The Challenger 4030SFX has a maximum lifting capacity of 30,000 lb, which is ALI/ETL certified. This capacity is suitable for heavy-duty trucks, buses, RVs, and commercial fleet vehicles.

What size bay do I need for the 4030SFX?

Challenger recommends a minimum bay size of 28' x 17' for the 4030SFX. The lift itself measures 308" in overall length and 172.75" in overall width. You'll also need adequate ceiling height to accommodate the 92.25" column height plus the height of vehicles being serviced.

What are the electrical requirements for this lift?

The 4030SFX requires a 3HP motor operating on 208V-230V single phase power. A dedicated circuit must be installed by a licensed electrician. The lift also requires 90-120 psi compressed air supply for the air actuated lock release system.

Is professional installation required?

While not strictly required, professional installation is strongly recommended. Proper installation by a qualified lift technician ensures safe operation and maintains warranty coverage. Contact us for installation service referrals in your area.

What is the warranty on the Challenger 4030SFX?

The 4030SFX comes with Challenger's comprehensive warranty: 5 years on structural parts, 2 years on functional parts, and 1 year on labor. The warranty must be registered online at challengerlifts.com and applies only to the original purchaser when installed and maintained according to specifications.

What is included with the lift purchase?

The 4030SFX includes the complete lift assembly with heavy-duty steel sheaves and cables, 3HP power unit, air actuated lock release system, diamond-plate approach ramps, adjustable lock ladders, built-in runway rail system, anchor hardware, and installation manual. Rolling jacks, oil drain pans, and turnplates are sold separately.

How is the lift shipped and what do I need for delivery?

The lift ships via freight carrier with free shipping to commercial addresses in the 48 contiguous states. You will need a forklift or loading dock to unload the palletized components. Curbside delivery is standard. Always inspect shipments for damage before signing the Bill of Lading.

Can I use this lift for wheel alignment?

The 4030SFX is a general service closed front model. For alignment applications, Challenger offers alignment deck models in the 4030 series that feature recessed turnplate pockets. Available recessed heavy-duty steel turnplates provide accurate readings and are compatible with the latest camera imaging alignment systems.

What is the maximum wheelbase this lift can accommodate?

The 4030SFX accommodates wheelbases up to 244.5". Challenger also offers the 4030 series in other lengths that accommodate wheelbases up to 281" or 317" for longer vehicles.

What accessories are available for the 4030SFX?

The built-in runway rail system allows you to add rolling jacks for wheel service and sliding oil drain pans for fluid changes. Recessed heavy-duty steel turnplates are available for alignment applications. All accessories are sold separately.

How does the lock release system work?

The 4030SFX features a single-point air actuated lock release that disengages all column locks simultaneously with one control. Multiple locking positions allow you to set the lift at various heights for different service tasks, and adjustable lock ladders accommodate uneven floor conditions.

What maintenance does this lift require?

Regular maintenance includes inspecting cables, sheaves, and safety locks; lubricating moving parts according to the manual schedule; checking hydraulic fluid levels; and verifying all anchor bolts remain tight. Following the maintenance schedule in the owner's manual helps ensure safe operation and maintains warranty coverage.
