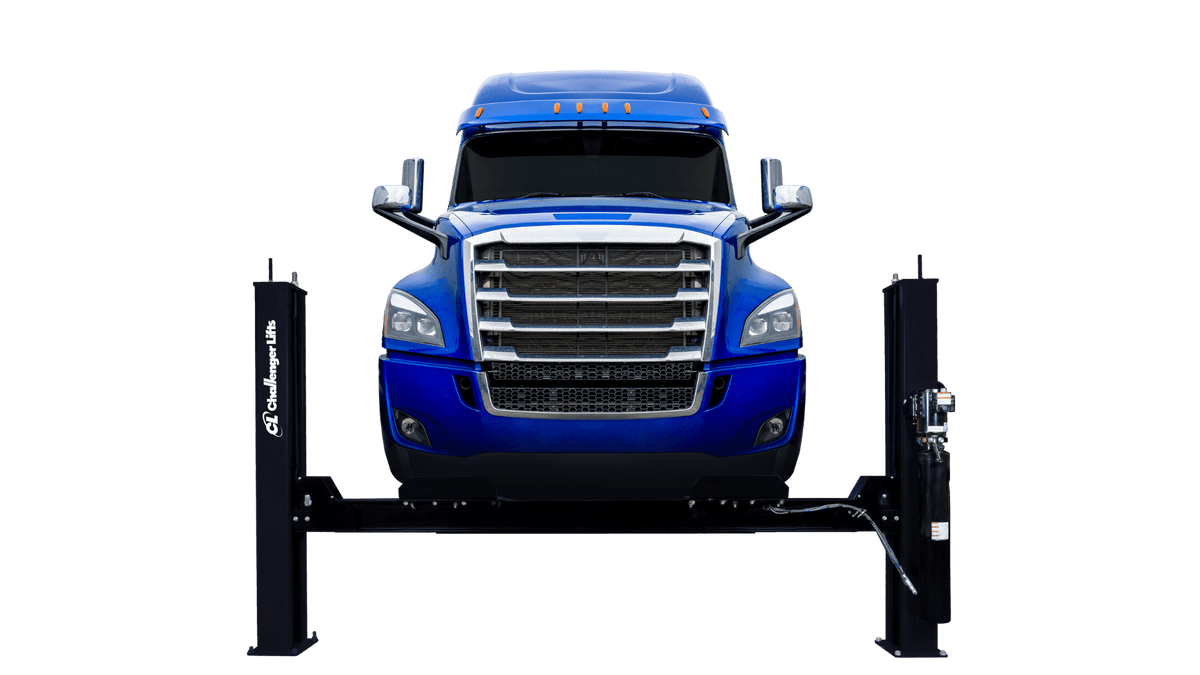

Challenger 4030EFX Four Post Lift 30,000 lb Heavy Duty

• 30,000 lb ALI/ETL Certified Lifting Capacity
• 71.75" Rise Height for Maximum Workspace
• 281" Max Wheelbase - Closed Front Design
• Single-Point Air Actuated Lock Release
• Built-in Runway Rail System for Accessories

Time-Proven Cable-Driven Lift System

The 4030EFX utilizes Challenger's proven cable and cylinder design featuring heavy-duty steel sheaves and aircraft-quality cables for reliable, consistent lifting performance. This robust system minimizes maintenance requirements while delivering smooth, synchronized operation across all four columns for safe heavy vehicle lifting.

Single-Point Air Actuated Lock Release

Enhance technician efficiency with the single-point air actuated lock release that disengages all column locks simultaneously. This design eliminates the need to manually release each column individually, reducing cycle times and improving workflow in busy commercial service environments.

Maximum Working Clearance

With a 71.75" rise height and 92.25" column height, the 4030EFX provides exceptional headroom for technicians working underneath large vehicles. The 8.5" runway height combined with generous rise ensures comfortable access to undercarriage components on trucks, buses, and fleet vehicles.

Alignment System Compatible

Designed for versatility, the 4030EFX is compatible with the industry's latest camera imaging alignment systems. Available recessed heavy-duty steel turnplates provide accurate alignment readings, while multiple locking positions accommodate various alignment and general service tasks.

Adjustable Lock Ladders

The adjustable lock ladders allow for versatile installation with sensitivity to uneven floors. Multiple locking positions ensure the lift can be safely secured at various heights to accommodate different service requirements and vehicle configurations.

Built-in Runway Rail System

The integrated runway rail system provides versatility to add convenience accessories like rolling jacks and sliding oil drain pans (sold separately). Durable diamond-plate non-skid louvered approach ramps ensure positive vehicle traction and technician safety during loading.

Electrical Requirements

Power: 3HP motor, 208v-230v single phase (standard configuration). Three-phase options may be available - contact sales for details. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.

Pneumatic Requirements

Air Supply: 90-120 psi required for the air actuated lock release system. Ensure your shop air compressor can maintain adequate pressure and volume for consistent operation.

Concrete Foundation

Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required. Floor must be level within manufacturer tolerances. Adjustable lock ladders accommodate minor floor irregularities. Consult installation manual for complete anchor specifications and layout.

Space Requirements

Minimum Bay Size: 31' x 17' recommended. Overall Lift Dimensions: 344" length x 172.75" width. Allow additional clearance for vehicle approach, technician movement, and alignment equipment if applicable.

Professional Installation

Professional installation by qualified technicians is strongly recommended to ensure proper setup, calibration, and safety compliance. Improper installation may void warranty coverage and create unsafe operating conditions.

• Complete four post lift assembly with columns, runways, and crossmembers
• Heavy-duty steel sheaves and cable system
• 3HP hydraulic power unit (208v-230v single phase)
• Air actuated lock release system
• Diamond-plate non-skid louvered approach ramps
• Adjustable lock ladders
• Hardware and anchor kit
• Installation and operation manual

Freight Shipping

Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days depending on inventory. International: Contact sales for international shipping quotes and availability.

Delivery Requirements

Unloading: Forklift or loading dock required - this is heavy commercial equipment shipped on pallets. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt immediately.

Returns

Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Damaged or defective items should be reported immediately for warranty claim processing.

Challenger Lifts Warranty Coverage

Challenger Lifts stands behind their American-made equipment with comprehensive warranty protection:

• 5 Years: Structural components including columns, runways, and major framework
• 2 Years: Hydraulic cylinders and power unit components
• 1 Year: Cables, sheaves, and other wear components

Requirements: Warranty coverage requires professional installation according to manufacturer specifications, proper maintenance per the operation manual, and use within rated capacity. Damage from misuse, overloading, or improper installation is not covered. Register your lift with Challenger Lifts to activate warranty coverage.

What is the lifting capacity of the Challenger 4030EFX?

The Challenger 4030EFX has a 30,000 lb lifting capacity and is fully ALI/ETL certified. This capacity rating represents the maximum combined weight the lift can safely raise, making it suitable for heavy-duty trucks, buses, RVs, and commercial fleet vehicles.

What size bay do I need for the 4030EFX?

Challenger recommends a minimum bay size of 31' x 17' for the 4030EFX. The lift itself measures 344" (approximately 28.7') in length and 172.75" (approximately 14.4') in width. Additional clearance should be allowed for vehicle approach ramps, technician movement, and any alignment equipment.

What are the electrical requirements for this lift?

The 4030EFX comes standard with a 3HP motor configured for 208v-230v single phase power. The lift also requires 90-120 psi compressed air supply for the air actuated lock release system. A licensed electrician should install and verify all electrical connections meet local codes.

Can I install the 4030EFX myself?

While technically possible for experienced professionals, we strongly recommend professional installation. Proper installation requires precise leveling, correct anchor placement in adequate concrete, electrical connections, and calibration. Improper installation can void warranty coverage and create safety hazards.

What warranty coverage does the 4030EFX include?

Challenger Lifts provides comprehensive warranty coverage: 5 years on structural components, 2 years on hydraulic cylinders and power unit, and 1 year on cables, sheaves, and wear items. Warranty requires professional installation and proper maintenance according to the operation manual.

What's included with the lift purchase?

The 4030EFX includes the complete lift assembly, power unit, cable system, approach ramps, lock ladders, hardware kit, and installation manual. Optional accessories like rolling jacks, oil drain pans, and turnplates for alignment are sold separately. Electrical installation, concrete work, and installation labor are not included.

How is the lift shipped and what do I need for delivery?

The 4030EFX ships via freight carrier to commercial addresses in the continental US with free shipping. You will need a forklift or loading dock to unload the palletized equipment. Delivery is curbside - be sure to inspect all packages for damage and note any issues on the Bill of Lading before the driver leaves.

Can I use this lift for wheel alignments?

Yes, the 4030EFX is compatible with modern camera imaging alignment systems. Optional recessed heavy-duty steel turnplates are available for alignment applications. The multiple locking positions allow you to set the vehicle at the optimal height for your alignment equipment.

What is the maximum wheelbase the 4030EFX can accommodate?

The 4030EFX closed front design accommodates vehicles with wheelbases up to 281". Challenger also offers the 4030 series in other lengths to handle wheelbases from 244.5" to 318.625" - contact us if you need a different configuration for your specific vehicles.

How much headroom does this lift provide?

The 4030EFX provides 71.75" of rise height, giving technicians excellent working clearance underneath raised vehicles. Combined with the 92.25" column height and 8.5" runway height, this lift offers comfortable access to undercarriage components on large trucks and commercial vehicles.

What maintenance does the 4030EFX require?

Regular maintenance includes periodic inspection of cables and sheaves for wear, lubrication of moving components, checking hydraulic fluid levels, and verifying lock mechanism operation. Consult the installation and operation manual for the complete maintenance schedule and procedures.

What accessories are available for the 4030EFX?

The built-in runway rail system accepts optional rolling jacks and sliding oil drain pans for convenient service operations. Recessed heavy-duty steel turnplates are available for alignment applications. Contact our sales team for accessory compatibility and pricing.
